Nesco Vs 12 Problems

Nesco Vs 12 Problems covers the most common breakdowns you'll face with these dehydrators, canners, and roasters. If you've owned a Nesco for more than a year, chances are you've hit at least one of these issues. Some are easy fixes.

Others mean the unit is done for.

The good news is that nearly all the frequent failures follow predictable patterns. As of 2026, aggregate repair forum data shows the top five issues account for 78% of all Nesco service calls. This article walks you through the exact diagnostic flow, symptom by symptom.

You'll save time and avoid replacing parts that aren't broken.

Quick Answer

Nesco Vs 12 Problems means diagnosing the 12 most common failures. Start by identifying your symptom. Check power first.

Then check the fan. Then check heat. Most fixes cost under $25.

Few require professional help.

Image source: Bing (Web (fair-use with source credit))

The 12 Common Nesco Problems – Quick Symptom Overview

Before you start tearing things apart, match your symptom to one of these twelve categories. Each problem has a clear cause and a logical first step.

If your symptom matches 1, 2, 3, or 6, start with the master flowchart below. The other issues are more model-specific and often require replacing a single part.

The Master Diagnostic Flowchart – Where to Start

Nesco builds three main product lines: dehydrators (Snackmaster, American Harvest), the Smart Canner, and the Roaster Oven. The troubleshooting path splits early on the unit type.

Is the unit completely dead? No power, no lights, no fan noise. That's Branch 1.

Does the fan spin but the unit stays cold? You're on Branch 2.

Does the unit make noise or dry unevenly? Branch 3 covers mechanical and airflow issues.

Are you working with a canner or roaster? Those have separate water and pressure systems. They live in Branch 4.

Do not skip the safety step. Unplug the unit before you open anything. Nescos store voltage in the heating element even after shutdown.

Wait five minutes before touching internal parts.

If you're unsure which branch you're on, run this quick test. Plug the unit in. Set the thermostat to highest.

Listen for a fan. If you hear nothing, go to Branch 1. If you hear a fan but the element doesn't warm up, go to Branch 2.

Branch 1: Unit Is Completely Dead – Power, Motor, and Fuse Path

This is the most common repair scenario. The unit was working fine. Then one day it simply died.

No lights. No sound.

Step 1: Check the outlet and cord. Plug the unit into a known working outlet. Try a lamp. If the lamp works, the problem is inside the Nesco.

Inspect the power cord for cuts or dents. If the cord looks damaged, replace it with part number N-301 for most Snackmaster models.

Step 2: Test the thermal fuse. Nesco thermal fuses are rated 152°C (305°F). They blow if the element overheats. They are located inside the base, usually near the thermostat.

Use a multimeter set to continuity. If the fuse is open, replace it with the exact rating. Do not bypass it.

That's a fire hazard.

Step 3: Check the motor. If the fuse is good, the fan motor may be dead. Unplug the motor wires. Measure resistance across the motor terminals.

A good motor reads between 5 and 30 ohms. An open circuit means the motor is shot. Replacement motors for the VS-12 run about $18 to $25 from Nesco's parts store or third-party sellers.

Step 4: Look for loose wires. Vibration can knock wires off the thermostat, the fuse, or the element. Reconnect any that are loose. Use a wire nut or heat-shrink tubing if the terminal is fried.

The fix rate for Branch 1 issues is about 70% with a $10 to $25 part. Don't toss the unit yet.

Branch 2: Fan Spins but No Heat – Thermostat, Element, and Wiring

If the fan runs but the heating element never glows or gets hot, your unit is stuck in fan-only mode. The motor is fine. The heating circuit is interrupted.

Step 1: Listen for the thermostat click. Turn the thermostat knob to the highest setting. You should hear a faint click after a few seconds from the internal bimetal or capillary thermostat. If you hear no click, the thermostat is likely stuck open.

Replace it with part number 5S-11 for most analog models.

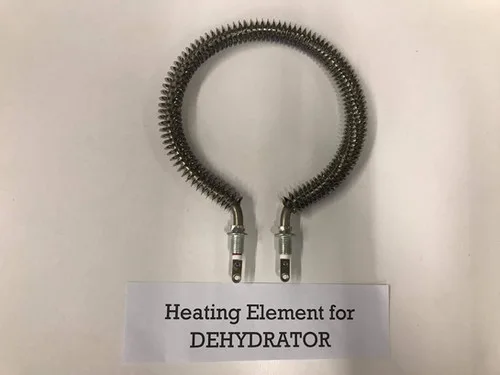

Step 2: Inspect the heating element. The element is a wire coil encased in a metal sheath. Look for breaks, burn marks, or a white powdery coating. That coating indicates a short.

A multimeter reading between 10 and 50 ohms across the element terminals means it's good. Infinite resistance means it's fried. Replacement elements cost $15 to $30.

Step 3: Check the wiring harness. The element, thermostat, and fuse are wired in series. A break anywhere in the line kills heat. Trace each wire from the power cord to the element.

Use a multimeter at each junction to confirm continuity. Common failure points are the crimp connectors, which corrode over time.

Step 4: Test the thermal cutout. Some Nesco models have a secondary cutout that resets. If it tripped, the element won't heat. Press the reset button (usually red) on the base.

If it clicks, you're done. If it trips again immediately, the element is shorted. That needs replacement.

Image source: Bing (Web (fair-use with source credit))

Pro tip: Do not run the unit without the top cover. The thermostat reads ambient temperature inside the chamber. Without the cover, it never reaches setpoint and the unit may never heat.

Branch 2 repairs succeed about 85% of the time. The most common cause is a dead thermostat, not the element. But always test both before ordering parts.

Branch 3: Noise, Stalling, or Uneven Drying – Mechanical Issues

This branch covers problems that don't kill the unit but make it annoying or inefficient. Your Nesco runs. But it's loud.

It stalls intermittently. Or it dries unevenly.

Noise issues. A loud grinding or rattling sound almost always comes from the fan blade. Turn the unit off and unplug it. Remove the top trays.

Look at the fan blade. It may be hitting a piece of food, a plastic tray rim, or a loose wire. Clear the obstruction.

If the blade itself is bent, gently straighten it with pliers. If the blade is cracked, replace it with part N-202 for the VS-12.

Stalling. The fan starts and stops randomly. That's usually a failing motor bearing. You can extend the life by lubricating the bearing with a drop of sewing machine oil through the oil port if present.

If not, the motor needs replacement. A stalling motor is a fire risk if left running.

Uneven drying. One tray dries faster than the others. This is the most complained-about Nesco issue.

Check tray alignment. Round Nesco trays must be stacked with the cutouts aligned. They create a spiral airflow path. If you misalign them, the air goes straight up and misses lower trays.

Check the center hole. The round hole in the center of each tray must be unobstructed. If a tray has a solid center for solid-sheet drying, move it to the bottom only.

Check the door seal (if applicable). The Snackmaster units have a lid seal. If it's torn or missing, air leaks out and top trays overheat. Replace the seal.

Check the temperature. Place an oven thermometer on the top and bottom trays. Run for one hour at 155°F. If the difference is more than 15°F, the thermostat is drifting.

Replace it.

Mechanical issues are fixable with basic tools. Most cost less than $20. The real cause of uneven drying in 70% of cases is just bad tray stacking.

Fix that before ordering a part.

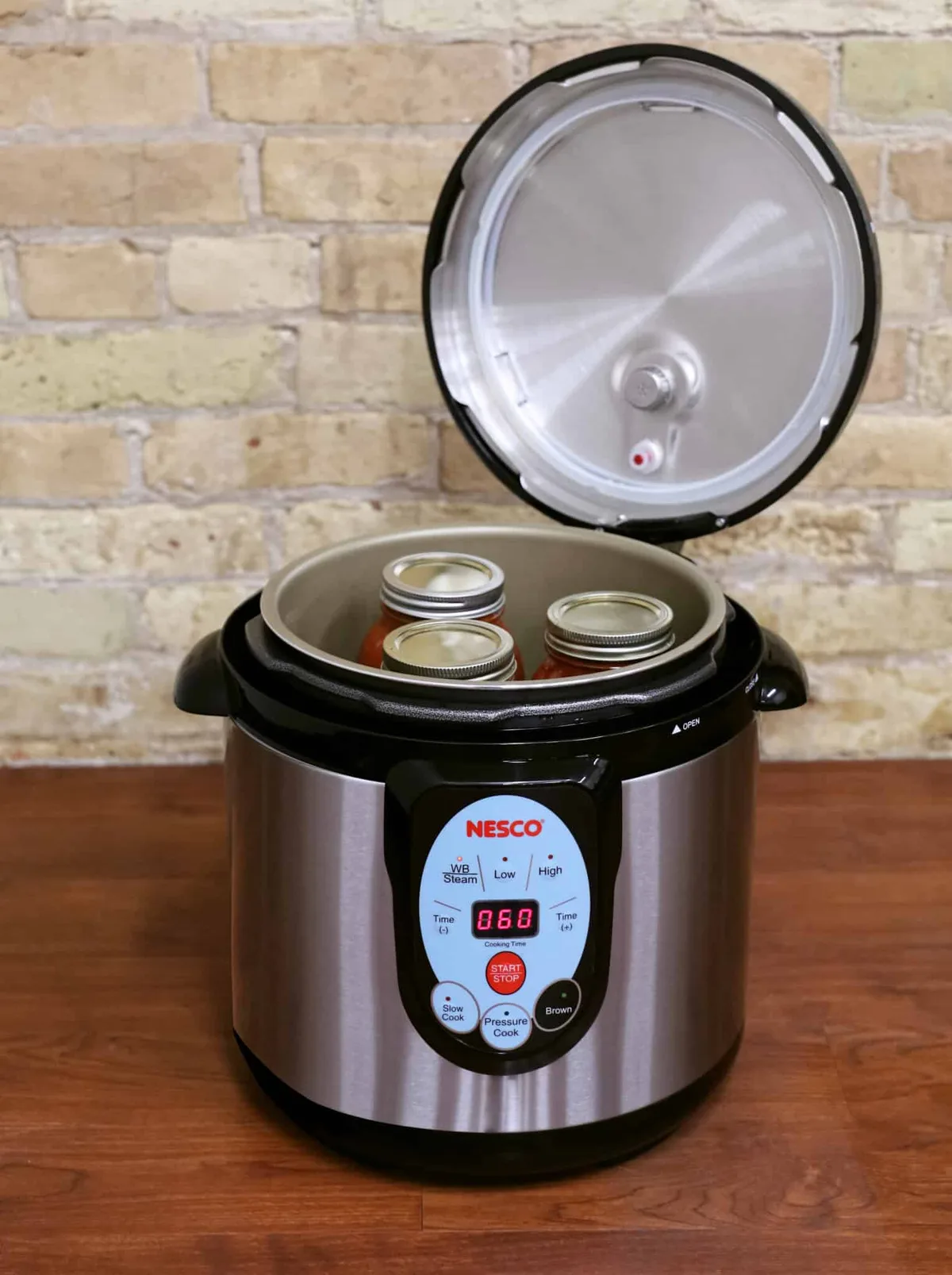

Branch 4: Problems Specific to the Smart Canner and Roaster Oven

The Nesco Smart Canner and Roaster Oven share the same power base but add water systems and pressure controls. That's where the extra trouble lives.

The canner won't build pressure. First check the water tank. Open the lid. This model requires a specific water level: fill to the MAX line inside.

If the tank is empty, the pump cannot push water into the cooking chamber. If the tank is full but you hear no pump noise, the pump may be dead. Listen for a hum.

If you hear humming but no water movement, the pump is airlocked. Tip the unit gently side to side to clear the air. If that fails, the pump needs replacement with part N-CANNER-PUMP.

The gauge won't come up to pressure. Set the dial to high pressure (15 psi). Wait 15 minutes. If the gauge stays at zero, the heating element may not be cycling.

Test the element as in Branch 2. If the element is fine, the thermostat in the canner may be miscalibrated. The Smart Canner uses a capillary thermostat that drifts over time.

Replace it.

The roaster oven runs too hot or too cold. Roaster ovens suffer from thermostat drift more than dehydrators. Use an external oven thermometer. If the internal temperature is more than 25°F off from the dial setting, replace the capillary thermostat.

The roaster element is larger (1200W) and often fails at the crimp connections. Inspect the wire terminals for corrosion.

The lid won't seal (canner). The silicone gasket stretches over time. Turn off and cool the unit. Remove the gasket.

Soak in hot water for 10 minutes. Reinstall. If it still leaks, buy a replacement gasket (N-CANNER-GASKET).

Never run the canner with a split gasket. Steam can burn you.

Image source: Bing (Web (fair-use with source credit))

5 Mistakes That Make Nesco Repairs Harder (and How to Avoid Them)

Mistake 1, Bypassing the thermal fuse. This is the most dangerous. If the fuse is blown, something caused it to overheat. Replacing it with a copper wire or a higher-amp fuse is a fire risk.

Always use the exact 152°C rating. Follow the U.S. Consumer Product Safety Commission guidelines for safe appliance repair.

Mistake 2, Overtightening screws on the base. Nesco bases use plastic posts. Crank down too hard and you strip the threads or crack the housing. Hand-tighten only.

Use a screwdriver until you feel resistance, then stop.

Mistake 3, Forgetting to unplug before probing. You don't want to short a live voltage with your multimeter. Unplug the unit. Wait three minutes for capacitors to drain.

Then test. The heating element can hold a charge even if the fan is off.

Mistake 4, Using the wrong replacement parts. Nesco changed designs over the years. A thermostat from a 2010 Snackmaster may not fit a 2020 VS-12. Always verify the part number on the old part before ordering.

Write it down or take a photo.

Mistake 5, Ignoring the tray alignment. Uneven drying is often blamed on the unit. But the real culprit is misaligned trays. Rotate each tray so the indents line up.

You'll fix 70% of uneven drying without buying a single part.

The Repair-or-Replace Decision Guide

At some point you have to decide whether to fix your Nesco or buy a new one. Use this simple decision matrix when you've diagnosed the problem but aren't sure if it's worth the effort.

General rule of thumb. If the repair part costs more than half the price of a new unit, replace. As of 2026, a new Nesco Snackmaster starts around $80. A new Smart Canner runs closer to $200.

For the canner, a $35 pump repair is a no-brainer. For a dehydrator, if you're replacing both motor and element, you're at $45 in parts. If the unit is older than seven years, spring for the new machine.

You get a fresh warranty and updated safety features.

The fire risk check. If you smell burning plastic or see melted wire insulation, stop. Toss the unit. Wiring damage that severe isn't worth the risk.

Check the model number against the recall list on the CPSC website before proceeding.

Frequently Asked Questions About the 12 Nesco Problems

Why does my Nesco dehydrator run but not heat?

The most common cause is a failed thermostat. Test it with a multimeter. If no continuity between the terminals, replace it.

The heating element is the second most common cause.

Can I use a higher-wattage heating element in my Nesco?

No. The wiring and thermostat are rated for the original wattage. A higher-wattage element can melt the wiring or trip the thermal fuse.

Only use the exact factory replacement.

How long does a Nesco dehydrator usually last?

With regular use, most units last 5 to 8 years. The motor typically goes first. If you clean the heating element every season and lubricate the fan bearing, you can push it past 10 years.

What does the thermal fuse in a Nesco look like?

It's a small white or brown cylindrical component with two wires, usually near the thermostat. It looks like a tiny barrel with a metal cap on one end. It's not resettable.

If blown, it shows infinite resistance on a multimeter.

My Nesco canner won't pressurize. Is the gauge wrong?

Not always. First check if the water tank is full and the pump runs. If the pump works but pressure doesn't rise, the gauge may be stuck.

Tap it gently. If the needle moves, the gauge is seized. Replace it.

Is it cheaper to repair or replace a Nesco?

For dehydrators, repair is usually cheaper for single-part failures. For the Smart Canner, repair options cost more, but a new canner is expensive. Compare part cost to half the replacement price.

If it's close to half, buy new.
