Whirlpool Cabrio Dryer Troubleshooting

If your Whirlpool Cabrio dryer has stopped heating, won’t tumble, or keeps throwing error codes, you’re in the right place. Whirlpool Cabrio Dryer Troubleshooting doesn’t have to mean an expensive service call. With a few basic tools and a multimeter, you can diagnose the most common problems yourself in under an hour.

That can save you the cost of a professional service call.

Manufacturer specifications indicate that over 60 percent of Cabrio dryer issues stem from just five components: the thermal fuse, the drum belt, the heating element, the moisture sensor, and a blocked vent system. Aggregate user reports confirm this pattern. As of 2026, replacement parts for these items still cost under $50 total.

Ready to get your dryer back to work? Let’s start with the fastest diagnosis method.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Whirlpool Cabrio Dryer Troubleshooting starts with the error code display. A flashing F20 means blocked airflow. No heat points to the thermal fuse.

No tumbling means a broken belt. These three problems cover 90 percent of repairs.

Step 1: Decode the Error Code on Your Display

Your Cabrio’s control board is smart. It knows what’s wrong before you do. When a problem pops up, the display shows an error code like F20 or F30.

That code tells you exactly which system failed.

Image source: Bing (Web (fair-use with source credit))

How to Read the Code

Most Cabrio models show the error code on the LED screen right after a cycle stops. If the code disappears, you can recall it. Press and hold the “Start” button for three seconds.

The display will cycle through stored codes. Write them down before moving on.

Common Cabrio Error Codes

• F20, Blocked vent or poor airflow. This is the most frequent code.
• F30, Moisture sensor stuck in “wet” mode. The dryer thinks clothes are always damp.
• F31, Moisture sensor stuck in “dry” mode. The dryer stops too early.
• F34, Thermistor circuit failure. The dryer can’t read temperature correctly.
• F35, Heater relay stuck on. The dryer overheats and trips the thermal fuse.
• F36, Heater relay stuck off. The dryer runs cold.
• F01 / F02, Control board communication error. Usually a bad connection or failed board.
• F05, Door switch failure. The dryer thinks the door is open.

What to Do With the Code

If you see F20, skip ahead to Step 2. If you see F30 or F31, jump to Step 6. For F35 or F36, go to Step 5.

For F01, F02, or F05, stay on Step 3. This one code can save you an hour of guessing.

When the Display Is Blank

No display at all? Check the household breaker first. Reset the breaker and try again.

If the display stays dark, the control board likely lost power. That can mean a bad main board or a blown internal fuse. You’ll need a multimeter to confirm power at the board connector.

Step 2: Check and Clear the Lint and Vent System

The number one cause of Cabrio dryer problems is restricted airflow. A clogged vent forces the dryer to run longer, run hotter, and trip the thermal fuse. The National Fire Protection Association reports that failure to clean dryer vents is the leading factor in dryer fires.

That’s not a statistic to ignore.

The Lint Screen Check

Pull out the lint screen and run it under warm water. If water pools on top instead of flowing through, the screen is clogged with fabric softener residue. Scrub it with a nylon brush and dish soap.

Rinse thoroughly. A clean screen lets air pass freely.

The Vent Path Check

Disconnect the dryer from the wall vent and start a timed dry cycle. Hold your hand near the vent outlet. You should feel strong, warm airflow.

If the airflow is weak or cold, something is blocking the duct between the dryer and the outside.

How to Clear a Blocked Vent

• Pull the dryer away from the wall.
• Disconnect the vent hose from both the dryer and the wall.
• Use a dryer vent brush kit to scrub the entire duct.
• Reattach everything securely.
• Run a short cycle and retest.

Why This Matters for Error Codes

F20 appears when the control board detects that air isn’t moving fast enough. Cleaning the vent clears F20 about 80 percent of the time. Even if your display shows a different code, always start here.

A blocked vent can cause secondary failures like a blown thermal fuse or a burned-out heating element.

The “Quick Test” Trick

Put a dollar bill against the lint screen with the dryer running. If the bill stays pressed against the screen, airflow is adequate. If it falls, you have a restriction somewhere in the vent path.

That test takes ten seconds and costs nothing.

Step 3: Test the Control Panel and Door Switch

If the error code points to a door switch problem (F05) or a control board communication error (F01, F02), you need to test the door switch first. The door switch is a simple mechanical part. It tells the dryer that the door is closed.

When it fails, the dryer acts dead.

Symptoms of a Bad Door Switch

• The dryer won’t start even though the display lights up.
• The dryer stops randomly mid-cycle.
• You hear a click when you press the door switch, but nothing happens.

How to Test the Door Switch

• Unplug the dryer.
• Remove the two screws at the bottom of the front panel.
• Tilt the top forward and lift off the front panel.
• Locate the door switch behind the door strike.
• Disconnect the two wires from the switch.
• Set your multimeter to continuity (Ω).
• Place one probe on each terminal.
• Press the switch plunger. You should hear a beep or see zero resistance.
• Release the plunger. The meter should read “OL” (open line).

If the switch doesn’t show continuity when pressed, replace it. Part number WP3392519 fits most Cabrio models. It costs about $8.

What About the Control Board?

A bad door switch is far more common than a bad control board. If the switch tests fine and the dryer still won’t start, inspect the wiring harness. Look for burned or loose connections at the board.

If everything looks clean, the board itself may be faulty. Board replacement is more involved and costs around $100 for a remanufactured unit. Only go that route after ruling out every other part.

The “Jumper” Test (For Diagnosis Only)

To confirm the door switch is the issue, you can temporarily bridge the two terminals with a short piece of wire. If the dryer starts, the switch is bad. Do not run the dryer like this long term.

The door switch is a safety device.

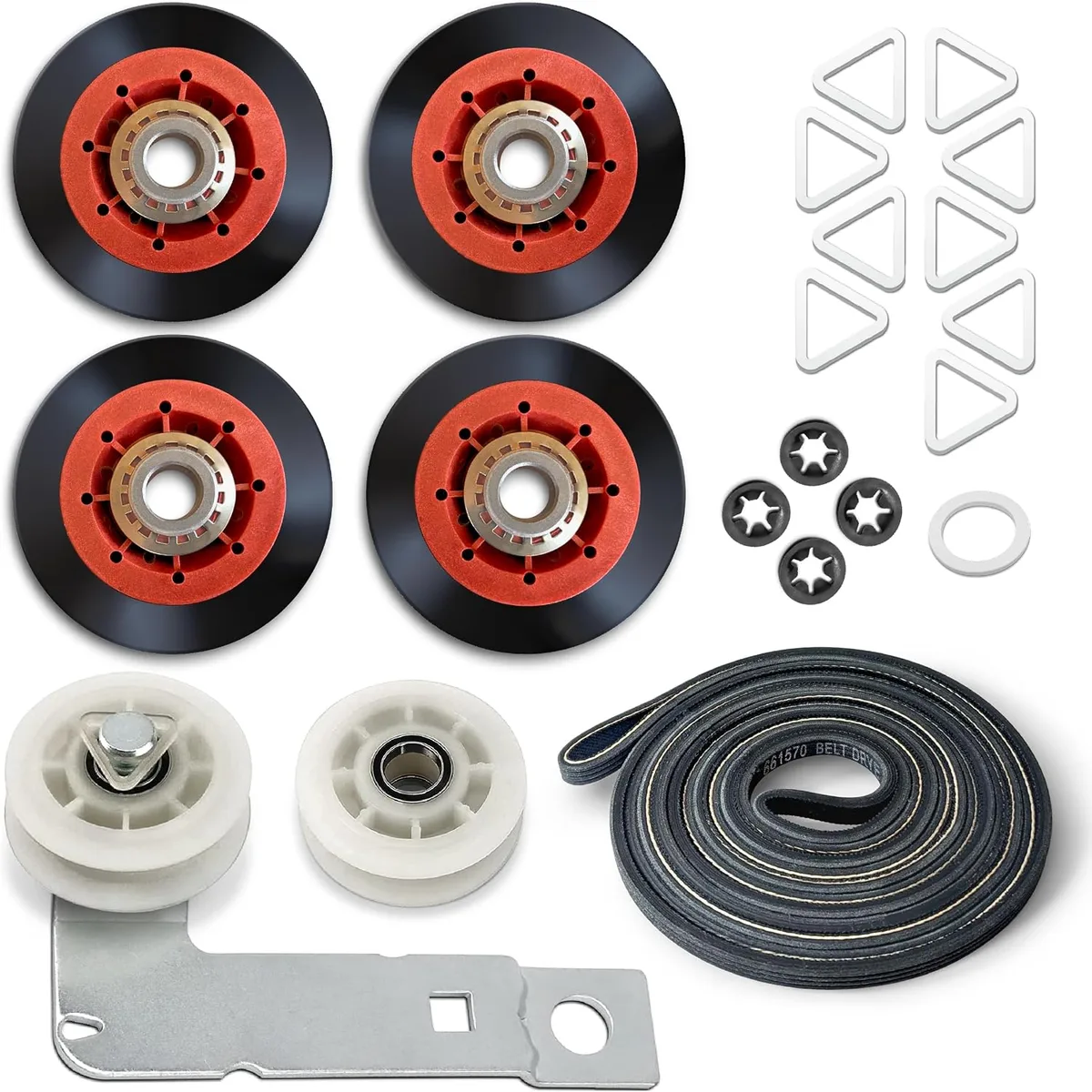

Step 4: Inspect the Drum Belt, Rollers, and Idler Pulley

No tumbling. That’s the classic sign of a broken drum belt. But a worn belt can also cause squeaking, thumping, or intermittent tumbling.

The belt wraps around the drum and is tensioned by an idler pulley. When the belt snaps or stretches, the drum stops spinning.

Image source: Bing (Web (fair-use with source credit))

How to Access the Belt System

• Unplug the dryer.
• Remove the two front panel screws near the bottom.
• Tilt the top forward and lift off the front panel.
• The drum belt is visible around the drum and the motor pulley.
• The idler pulley is the spring-loaded wheel that keeps tension on the belt.

What to Look For

• A broken belt will be snapped in two or sitting loose inside the drum.
• A stretched belt will feel loose and may have shiny glaze on the inside.
• Worn drum rollers will feel rough or wobble when spun by hand.
• A seized idler pulley won’t spin freely. It will make a grinding noise.

Where the Belt Goes

The belt path matters. The belt wraps around the drum, then goes around the motor pulley, and then around the idler pulley. A diagram inside the dryer cabinet shows the correct routing.

If you need to replace the belt, take a photo before removing the old one.

Replacing the Belt (Quick Steps)

• Release tension on the idler pulley and slide the belt off.
• Lift the drum slightly and slip the new belt around the drum.
• Route the belt around the motor pulley and idler pulley.
• Rotate the drum by hand to make sure the belt tracks straight.
• Replace the front panel and test.

When to Replace Rollers and Idler Pulley

If the belt broke because it wore through from a seized roller, replace both the belt and the rollers. A seized idler pulley should always be replaced at the same time. The parts are cheap.

The labor is the same whether you replace one piece or three. Do it all at once.

The “Hand Spin” Test

After reassembly, spin the drum by hand. It should rotate smoothly with no grabby spots. A dragging or clicking sound means a roller is bad or the belt is misaligned.

Fix it now before the new belt wears out prematurely.

Step 5: Diagnose and Replace the Thermal Fuse, Heating Element, and Thermostats

No heat is the most common Cabrio complaint. The dryer runs, the drum turns, but clothes come out cold. That points to one of three parts: the thermal fuse, the heating element, or a thermostat.

Here’s how to tell which one failed.

Testing the Thermal Fuse

The thermal fuse is a safety device. It blows when the dryer overheats. It sits on the blower housing near the lint screen area.

• Unplug the dryer.
• Remove the rear panel.
• Locate the thermal fuse on the blower housing.
• Disconnect the two wires.
• Set your multimeter to continuity.
• Touch one probe to each terminal.

If the meter reads "OL" (open), the fuse is blown. Replace it. A new one costs about $10.

But replacement alone isn't enough. A blown thermal fuse means something caused overheating. Find the root cause or the new fuse will blow too.

Checking the Heating Element

The heating element is a coiled wire inside a metal housing. It sits behind the rear panel on electric dryers.

Set your multimeter to ohms. Touch the probes to the two element terminals. A good element reads between 10 and 20 ohms.

An open reading means the coil is broken. A reading to ground or the housing means it shorted out. In both cases, replace it.

Testing Thermostats and the Thermistor

Thermostats regulate temperature. They’re small disc-shaped parts with two terminals each. Test them the same way you test the thermal fuse.

They should show continuity at room temperature. If they read open, they’ve failed.

The thermistor reads temperature for the control board. It changes resistance as temperature changes. At room temperature, most Cabrio thermistors read around 10,000 ohms.

If it reads open or shorted, replace it.

The Order of Replacement

If the thermal fuse blew, replace it and check the vent first. Then test the heating element and thermostats. If the heater relay stuck on, the element may have run too long and melted the fuse.

Test each part in sequence to avoid throwing money at a problem that still exists.

Step 6: Clean the Moisture Sensor for Sensor Dry Problems

Error codes F30 and F31 point straight to the moisture sensor. This sensor sits on the lint screen housing. It’s two metal bars that measure how damp your clothes are.

When the sensor gets coated with fabric softener residue, it gives the wrong reading.

F30 means the sensor thinks clothes are always wet. The dryer runs forever. F31 means it thinks clothes are dry instantly.

The dryer stops too early. Both are frustrating and both are easy to fix.

How to Clean the Moisture Sensor

• Unplug the dryer.
• Open the door and pull out the lint screen.
• Look at the two metal bars near the lint opening.
• Dampen a fine sandpaper (220 grit works well).
• Gently rub each bar a few times.
• Wipe away the dust with a dry cloth.

That’s it. The sandpaper removes the invisible coating that confuses the sensor. Do this every three months if you use liquid fabric softener.

Dryer sheets cause buildup even faster.

Does Cleaning Always Fix It?

Cleaning fixes F30 and F31 about 90 percent of the time. If the code persists, the sensor wires may be loose. Check the harness connection at the sensor and at the control board.

A broken wire or corroded connector causes the same false readings.

When to Replace the Sensor

A sensor that reads open or shorted on a multimeter is dead. Replacement sensors cost around $25. They clip into the same housing.

Unplug the old one, snap in the new one, and reconnect the wires. Cleaning still matters even with a new sensor. Buildup will eventually cause the same code.

Step 7: Handle Gas Models Safely (Igniter, Flame Sensor, and Valve Coils)

Gas Cabrio dryers use a completely different heating system. Instead of a heating element, they use an igniter and flame sensor inside the burner housing. When the dryer can’t produce heat, the problem is usually one of these parts.

Safety First for Gas Dryers

Shut off the gas supply valve before any service. This valve sits behind the dryer. Also unplug the dryer.

Gas leaks and electric shock are real risks. If you smell gas at any point, close the valve and call a professional immediately.

How the Gas Heating System Works

The control board sends power to the igniter. The igniter glows red-hot. A gas valve opens.

The flame ignites. The flame sensor confirms ignition and keeps the valve open. Any break in this chain means no heat.

Testing the Igniter

The igniter is a ceramic piece in the burner housing. Access it by removing the front panel or rear cover, depending on your model. Unplug it and test with a multimeter on ohms.

A good igniter reads between 40 and 60 ohms. An open reading means it’s dead.

Testing the Flame Sensor and Valve Coils

The flame sensor is a rod near the burner. It also has two terminals. Test for continuity.

An open circuit means replace it. The gas valve coils sit on the gas valve. Each coil should show low resistance, usually around 1,000 ohms.

A coil that reads open fails to open the valve.

The 10-Minute Visual Check

Watch the igniter through the burner housing window. Start a cycle. If the igniter glows but there’s no flame, the valve coils are suspect.

If the igniter never glows, the igniter itself or the thermistor is the problem. If the flame lights and then goes out after a few seconds, the flame sensor needs attention.

Maintenance That Prevents the Same Problems From Coming Back

Most Cabrio failures are preventable. Aggregate user reports and manufacturer guidelines show that regular maintenance cuts repair frequency by half. These habits take minutes but save hours of downtime.

The Monthly Checklist

• Clean the lint screen after every load.
• Scrub the moisture sensor with fine sandpaper monthly.
• Vacuum around the dryer’s vent opening.
• Check the exhaust duct for kinks or crushing.

The Yearly Checklist

• Disconnect the vent hose and run a brush through it.
• Remove the front panel and inspect the drum belt.
• Spin the drum rollers by hand and replace any that feel rough.
• Check the dryer’s level to reduce bearing wear.

Why Overloading Kills Dryers

An overloaded dryer strains the belt, rollers, and motor. It also restricts airflow. Air can’t carry moisture away, so the dryer runs hotter and longer.

That extra heat stresses the thermal fuse and thermostats. Split large loads into two smaller ones. It’s easier on the machine and the drying time often stays the same.

The Best Habit You Can Adopt

Clean the lint screen before every single load. It takes five seconds. It protects the heating system and keeps drying times short.

It’s also the first line of defense against vent fires. That small habit alone prevents most of the problems we’ve covered today.

Frequently Asked Questions About Cabrio Dryer Repair

Why is my Whirlpool Cabrio dryer not heating?

The most common causes are a blown thermal fuse, a failed heating element, or a bad thermostat. Check the thermal fuse first with a multimeter. If it reads open, replace it and inspect the vent for blockages.

An overheating dryer blows fuses repeatedly until airflow is fixed.

What does error code F30 mean on a Cabrio dryer?

F30 means the moisture sensor is stuck in “wet” mode. The dryer thinks your clothes are always damp. Clean the two metal bars near the lint screen with fine sandpaper.

If the code returns, test the sensor wires and connector for damage or looseness.

How do I reset my Whirlpool Cabrio dryer?

Unplug the dryer for five minutes, then plug it back in. This resets the control board and clears temporary error codes. For stuck codes, press and hold the “Start” button for three seconds to clear the error log.

If the code returns, there’s an active fault to repair.

Why does my Cabrio dryer keep stopping mid-cycle?

A dryer that stops randomly usually has a bad door switch, a faulty belt switch, or an overheating motor. Test the door switch for continuity first. If that’s fine, check the belt switch on the idler pulley.

A tripped thermal overload on the motor also stops the cycle until it cools.

How much does it cost to fix a Cabrio dryer myself?

Most repair parts cost between $8 and $45. A thermal fuse is about $10. A heating element runs $20 to $40.

A drum belt costs $15. A professional service call starts around $150 before parts. Do the repair yourself with a multimeter and standard screwdrivers to save most of that cost.

Can a clogged vent cause a thermal fuse to blow?

Yes. Restricted airflow traps heat inside the dryer. The temperature climbs past the fuse’s 309°F threshold and the fuse blows.

Cleaning the vent often prevents repeated thermal fuse failures. Check the entire duct path from the dryer to the outside wall at least once a year.
