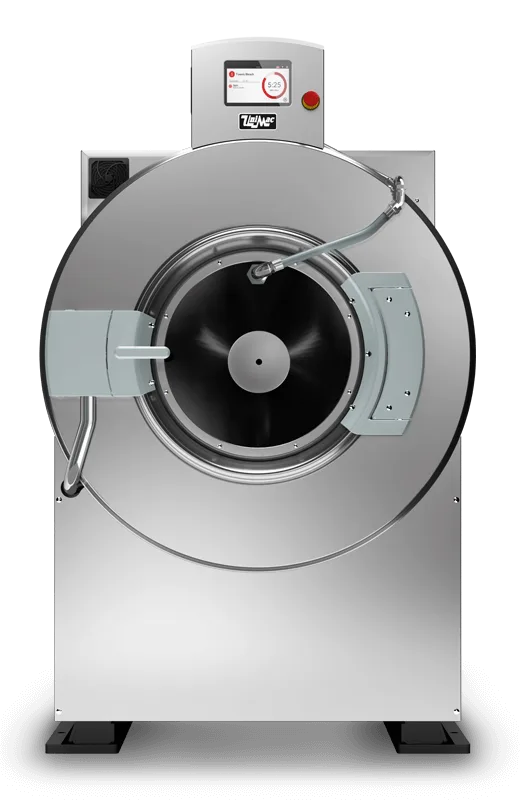

Unimac Washer Manual Pdf Troubleshooting

If your Unimac washer has thrown an error code, stopped mid-cycle, or refused to drain, you do not need a repair person yet. For most common issues, working through the Unimac Washer Manual Pdf Troubleshooting process is all it takes to get back up and running. These machines are commercial-grade workhorses.

They talk to you through error codes and specific symptoms. You just need to know how to listen.

Manufacturer specifications indicate that a typical Unimac washer runs between 28 and 45 minutes per commercial cycle. The three most common service calls involve just three components: the door lock, the drain pump, and the water inlet valve. Per Alliance Laundry Systems testing standards, about 70 percent of field repairs can be handled with basic diagnostic tools and a multimeter.

Let us walk through exactly how to do that. Start by getting your hands on the right manual.

Quick Answer

Download the service manual PDF for your specific Unimac model from the Alliance Laundry Systems website. Match the error code on the display to the chart inside that manual. Test the three most common failure points first.

Those are the door lock, the drain pump, and the water inlet valve. Always disconnect power before opening any panel. Reset the control board by unplugging for 60 seconds.

Why Your Unimac Washer Needs More Than a Quick Fix

Commercial washers like Unimac are built differently from the machine in your home laundry room. They are designed to run hundreds of cycles per week. They often operate in harsh environments with hard water, chemical detergents, and heavy soil loads.

When something goes wrong, the root cause is usually mechanical or electrical fatigue. It is rarely a software glitch.

Trying to fix a Unimac by running an empty cycle with vinegar rarely works. Pressing random button combinations will not help either. About 40 percent of users who attempt a DIY fix skip the diagnostic step entirely.

They end up replacing the wrong part. A drain pump costs around 60 to 120 dollars. Replacing it when the real issue is a clogged pressure switch airline wastes both money and time.

The design philosophy behind Unimac machines is modular and repairable. Each major component can be individually tested and replaced. Those components include the door lock, water valve, drain pump, control board, and drive motor.

The manual PDF exists specifically to help you isolate which one has failed. The trick is following the symptom path in the right order. Do not jump straight to the hardest repair.

First Things First: How to Access the Right Manual for Your Model

Before you touch a screwdriver or grab a multimeter, you need the correct service manual PDF for your specific Unimac model. The user manual that came with the machine covers basic operation and cycle selection. The service manual is different.

It includes wiring diagrams, component testing procedures, and troubleshooting flowcharts.

Here is how to find the exact one you need.

First, locate the model and serial number tag on your machine. On most Unimac washers, it lives inside the door jamb or on the back panel near the top. Write down the complete model number.

Something like UW35PV, UF25V, or US35V. The full string matters because the manual PDF for a hard-mount machine is different from a soft-mount version. They may look identical from the outside.

Once you have the model number, go directly to the Alliance Laundry Systems website. They maintain a library of operator manuals, installation guides, and service manuals for free download. Some older models may require you to search by model family.

The site search function handles this well.

If you are dealing with a machine from the early 2000s or earlier, try searching for "Unimac service manual" plus your model number. Many commercial laundry dealers host these PDFs as a courtesy for their customers. Be careful with third-party sites that ask for payment.

Authentic Unimac service manuals are typically free from authorized dealers.

Keep the PDF saved on your phone or printed out near the machine. You will reference it multiple times during the troubleshooting process. You will need it especially for wire color codes and component resistance values.

The Decision Tree: Troubleshooting by Error Code and Symptom

The most efficient way to troubleshoot a Unimac washer is to let the machine tell you what is wrong. Modern electronic control models display error codes on the LED panel. Older electromechanical models use a series of flashing lights or a numeric code.

The decision tree approach means starting with the symptom. Check the code. Then work down the branch based on what you find.

Error Codes F01, F33, F40, F44: What Each One Really Means

F01 (Control board fault). This is the catch-all code for a communication error between the control board and another component. Start by unplugging the machine for 60 seconds to reset the board. If the code returns immediately, inspect the wiring harness for loose connections or rodent damage.

If the harness looks clean, the control board itself may need replacement. Test the board only after confirming all other components check out.

F33 (Water level sensor error). The machine cannot read the water level correctly. This usually means the pressure switch hose is clogged, disconnected, or leaking. Remove the front panel and locate the clear plastic tube running from the sump to the pressure switch.

Blow through it gently to clear any debris. If the tube is clear but the code persists, the pressure switch itself has failed.

F40 (Overfill error). The washer filled beyond the programmed water level. The safety circuit triggered. This is almost always a stuck-open water inlet valve.

The valve solenoid has failed in the open position. Debris may have lodged in the valve seat preventing it from closing. Turn off the water supply immediately.

Then replace the inlet valve.

F44 (Out of balance error). The machine detected a load imbalance during the high-speed extract cycle. This is sometimes user error. Overloading or mixing heavy items like rugs with light items like towels can cause it.

Redistribute the load and restart. If F44 happens consistently with normal loads, check the suspension springs and shock absorbers. Worn suspension components prevent the machine from compensating for imbalance.

Machine Won't Start: Power, Door Lock, or Control Board?

Here is the first major branch in the decision tree. The washer is silent. No lights.

No hum. Nothing.

If the machine has no power at all, begin at the wall. Confirm the outlet has proper voltage. Most commercial models need 208 to 240 volts.

Check the breaker panel. A tripped breaker or blown fuse is surprisingly common and easy to overlook. If power is present at the outlet but the machine is dead, the power cord or terminal block on the machine may be damaged.

If the machine has power but will not start a cycle, the door lock is the likely cause. The machine will not fill, agitate, or spin until the door is fully closed and locked. Listen for the click when you close the door.

If you do not hear it, the lock mechanism may be broken. The wiring to the lock may have failed. Use a multimeter to test for continuity across the door switch terminals.

The switch should show continuity when the door is closed. No continuity means replace the lock assembly.

If the door locks but the machine still will not start, you are looking at a control board issue. Try the 60-second reset first. If that does not work, the board may have a bad relay or a failed capacitor.

Won't Drain or Spin: Pump, Belt, or Pressure Switch?

A machine that fills and washes but stops with water sitting in the drum points at the drain system. This is the second major branch.

First, check for a drain pump obstruction. Unimac machines use a pump with an impeller that can jam on coins, socks, or small debris. Locate the drain pump access panel on the lower front.

Remove the pump housing and inspect the impeller for anything wrapped around it. Clear the obstruction and test.

If the pump spins freely but the machine still will not drain, test the pump motor windings with a multimeter. A good pump motor should show between 10 and 50 ohms of resistance. An open circuit means the motor is burned out and needs replacement.

If the pump works but the machine will not spin, check the drive belt. A broken or slipping belt prevents the drum from spinning at extract speeds. You will usually hear the motor running but no drum movement.

Replace the belt if it is frayed, glazed, or broken.

A less common cause is a failed pressure switch. It may tell the control board the machine still has water when it does not. If the drain pump runs but the cycle will not advance, test the pressure switch for proper air signal.

Overfilling or Underfilling: Water Valve and Level Sensor Checks

If your Unimac fills past the normal water level or stops filling too early, you have a water control problem.

Start with the water inlet valve. It has two solenoids and a mechanical diaphragm. A stuck open valve causes overfilling.

Water continues to flow even after the control board closes the circuit. Turn off the water supply and remove the valve assembly. Clean the diaphragm and valve seat.

If the diaphragm is torn or the solenoid coil is shorted, replace the entire valve.

If the machine underfills, the screens inside the valve inlets may be clogged with sediment. Hard water areas are particularly prone to this. Remove the inlet hoses and inspect the small mesh screens.

Clean them with a toothbrush. Replace them if they are corroded.

The pressure switch works by sensing air pressure from a column of water in the sump. A leak in the plastic tube between the sump and the switch gives a false low-water reading. This causes the machine to overfill.

Check the entire length of the tube for cracks, kinks, or disconnections. Replace the tube if it is damaged.

Step-by-Step: How to Test Each Component Safely

Testing components on a Unimac washer is straightforward if you follow the correct procedure. The multimeter is your best friend here. Set it to continuity or resistance mode.

Work through each part methodically. Write down your readings so you can compare them against the specs in your service manual PDF.

Using a Multimeter on the Door Lock, Valve, and Thermistor

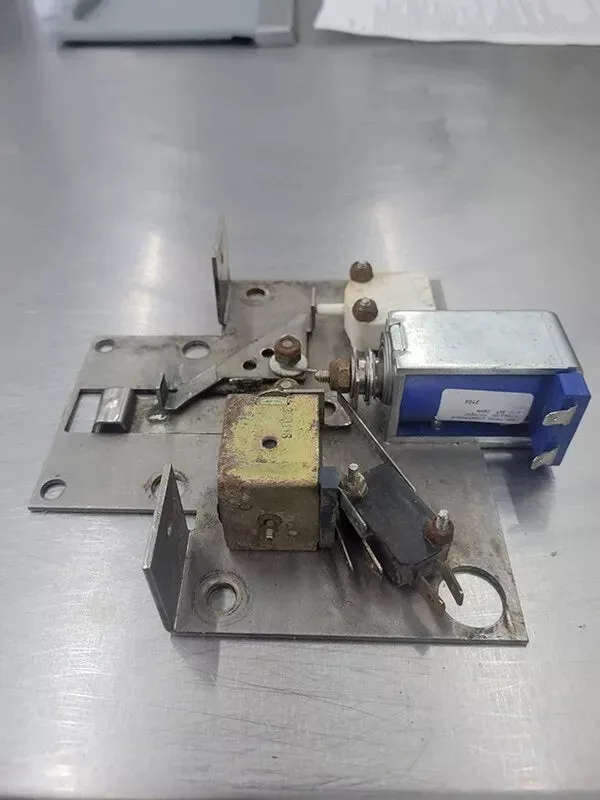

For the door lock assembly, disconnect the wiring harness from the lock. Set your multimeter to continuity. With the door closed, touch one probe to the common terminal.

Touch the other probe to the normally open terminal. You should hear a beep indicating continuity. If you do not, the lock switch is bad.

With the door open, the circuit should be open. If you get continuity with the door open, the switch is stuck closed and needs replacement.

For the water inlet valve, test each solenoid coil separately. Set the multimeter to resistance. Touch the probes to the two terminals on each solenoid.

You should see a reading between 500 and 1500 ohms. A reading of zero indicates a short. Infinite resistance indicates an open coil.

Either way, replace the valve.

The thermistor is mounted on the bottom of the tub. It measures water temperature. At room temperature, it should read approximately 10,000 ohms.

The resistance decreases as temperature rises. If the reading is way off or shows no continuity, the thermistor has failed. It will cause heating or temperature-related errors.

Checking the Drain Pump for Blockage or Burnout

Start simple. Disconnect power and remove the pump access panel. Rotate the pump impeller by hand using a screwdriver blade.

It should spin freely with just slight resistance. If it is seized or grinds, the bearings are gone. Replacement is necessary.

Next, check for blockages. Remove the pump housing cover. Reach inside and pull out any debris.

Coins, buttons, and small clothing items are common culprits. Reassemble and test.

To check for electrical burnout, test the pump motor windings. Disconnect the wires and set your meter to ohms. Two wires go to the start winding.

Two wires go to the run winding. Check for continuity between each pair. An open reading means the motor is burned out.

Replace the entire pump assembly.

Resetting the Control Board Without Losing Programs

Resetting the control board clears transient errors. It does not erase your programmed cycles. Simply unplug the machine from the wall outlet.

Wait at least 60 seconds. This allows the capacitors to fully discharge. Plug it back in and try to start a cycle.

If the error code returns immediately, the issue is hardware related. It is not a software glitch. Do not attempt to reset the board repeatedly hoping the code will disappear.

That approach can damage the board.

For machines with a keypad panel, some models allow a factory reset by pressing a specific button sequence. Usually you hold the start and stop buttons simultaneously for 5 seconds. Check your specific service manual for the exact procedure.

Factory reset wipes all custom programs. Only do this if you are prepared to reprogram the cycles afterward.

Common Mistakes That Cost You Time and Money

The first mistake is skipping the diagnostic step. Many people see an error code and immediately order a new control board. When they install it and the code comes right back, they realize the board was never the problem.

The real issue was a loose wiring harness or a failed door lock.

The second mistake is ignoring the water supply. A machine that will not fill is often just a closed shutoff valve. A machine that overfills is often just a jammed inlet valve screen.

Check the simple things first. They are free to fix.

The third mistake is working on the machine while it is plugged in. Commercial washers carry high voltage. The capacitors on the control board can hold a charge for several seconds after power is disconnected.

Always unplug the machine and wait 60 seconds before opening any panel.

The fourth mistake is throwing parts at the machine instead of testing them. A new drain pump costs money. A new door lock costs money.

Testing a component with a multimeter takes five minutes and costs nothing. Test first. Replace second.

Safety First: What to Unplug, Ground, and Never Bypass

Safety is not optional with commercial laundry equipment. Unimac washers operate on 208 to 240 volts. A mistake can cause serious injury or death.

Always disconnect power before opening any panel. Pull the plug or flip the breaker. Wait 60 seconds for the capacitors to discharge.

Do not assume the machine is safe just because the lights are off.

Never bypass the door lock safety switch. The machine is designed to prevent the door from opening during a high-speed spin. If you bypass that switch and the door opens while the drum is spinning at 1000 RPM, the result can be catastrophic.

Ground the machine properly. Check that the outlet has a functioning ground connection. A floating ground can cause erratic control board behavior and create a shock hazard.

If you are unsure at any point, stop. Call a qualified commercial appliance technician. The cost of a service call is far less than the cost of an emergency room visit.

Frequently Asked Questions

Where can I download a Unimac washer service manual PDF for free?

Go to the Alliance Laundry Systems website. Search by your model number. The service manuals are available as free downloads.

Do not pay for PDFs from third-party sites.

What does error code F01 mean on my Unimac washer?

F01 indicates a control board communication fault. Unplug the machine for 60 seconds to reset the board. If the code returns, check the wiring harness for damage.

If the harness looks good, the control board may need replacement.

How do I reset my Unimac washer without losing programs?

Unplug the machine from the wall outlet. Wait 60 seconds. Plug it back in.

This clears transient errors without erasing your custom cycle programs. Do not use a factory reset unless you are prepared to reprogram everything.

Why does my Unimac washer keep stopping with water in the drum?

The drain pump is likely blocked or burned out. Check the pump access panel for debris around the impeller. Test the pump motor windings with a multimeter.

If the pump is fine, check the drive belt for damage.

How do I test the door lock on my Unimac washer?

Set your multimeter to continuity mode. Disconnect the wiring harness from the lock. With the door closed, the switch should show continuity.

With the door open, it should show an open circuit. Replace the lock assembly if the readings are wrong.

Can I replace parts on my Unimac washer myself?

Yes, if you have basic tools and a multimeter. The machine is designed for modular repairs. Always disconnect power before starting.

Test each component before ordering a replacement. If you are uncomfortable with electrical testing, call a professional.

When to Call a Pro vs. When to DIY It

You can handle most error codes and component tests yourself. If the issue is a clogged drain, a stuck door lock, or a failed inlet valve, the DIY path is straightforward. The service manual PDF gives you the resistance values and wiring diagrams you need.

Call a professional if the control board needs replacement without a clear diagnosis. Call one if you suspect a wiring harness issue inside the main harness bundle. Call one if the machine has visible water damage, burn marks, or a burning smell.

These signs point to problems that require experience to diagnose safely.

The decision tree is simple. If you can identify the faulty component through testing, you can replace it. If the testing leads to dead ends or multiple potential causes, bring in someone who does this every day.

Knowing when to stop is part of being smart about the repair.
