Sun Joe Pressure Washer Troubleshooting

Your Sun Joe pressure washer sputters, leaks, or flat-out refuses to start. Sun Joe Pressure Washer Troubleshooting doesn't have to be a guessing game. Most issues fall into one of four symptom groups.

Once you identify yours, the fix is usually straightforward.

Manufacturer specs show that the SPX3000, one of the most common models, delivers 2030 PSI at 1.76 GPM. When that flow drops or stops, it's typically a simple blockage or a stuck valve. As of 2026, every Sun Joe electric model also includes the Total Stop System.

Let's walk through the decision tree so you can get back to cleaning.

Quick Answer: Which Branch Are You On?

Image source: Bing (Web (fair-use with source credit))

The Total Stop System, or TSS, automatically kills the motor when you release the trigger. It saves wear on the pump, but it confuses a lot of owners. If the trigger lock is on, the motor will not run at all.

Branch 1: Motor Won't Start or Keeps Shutting Off

Start by checking the power source. A GFCI outlet can trip when the cord end gets wet. Press the reset button on the outlet until it clicks.

If that doesn't work, look for the thermal overload protector. It's a small red button near the motor housing. Let the unit cool for five minutes, press it firmly, and try again.

About 1 in 4 "dead unit" calls come from the TSS trigger lock being engaged. Pull the trigger gun fully open before touching the power switch. If the motor starts and then dies instantly, the same rule applies.

The TSS won't let the motor run unless the trigger is completely squeezed.

Low water flow also triggers the safety shutdown. Make sure the garden hose is fully open. Remove any kinks, and open any spray gun valves completely.

The pump needs a steady supply of water to hold pressure.

Check the extension cord too. A 100-foot cord with a 16-gauge wire causes a voltage drop that stalls the motor. Use a 14-gauge cord rated for 15 amps, and keep it under 50 feet if you can.

Still cycling on and off? The unloader valve may be stuck. Tap the valve body gently with a wrench handle.

If that doesn't free it, replacement is the standard fix.

Branch 2: Runs But Has No Pressure or Weak Spray

If the motor runs but the stream is a trickle, start with the nozzle. Remove the spray wand and look at the tip. A single piece of debris can cut pressure by 80 percent.

Use a paperclip to push the dirt out of the orifice. Then purge the air lock.

Turn the water supply on fully. Hold the trigger open for 10 to 15 seconds with the power off. This lets water push the air out of the pump head.

Then flip the power switch while still holding the trigger. Pressure should return immediately.

Image source: Bing (Web (fair-use with source credit))

If it still won't build pressure, check the inlet filter screen. This small metal mesh sits inside the garden hose connector. Unscrew the brass coupler, rinse the screen under tap water, and reattach.

A clogged screen starves the pump of water. The pump needs at least 40 PSI from your hose, so check for kinks or low municipal pressure too.

If you've cleaned the nozzle, purged the air, and cleared the screen but the pressure is still weak, the pump seals are likely worn. Sun Joe axial cam pumps are not rebuildable. A replacement pump often costs half as much as a whole new unit.

For a machine that's three years old or more, replacement is usually the smarter choice.

Branch 3: Water Leaks from the Pump or Fittings

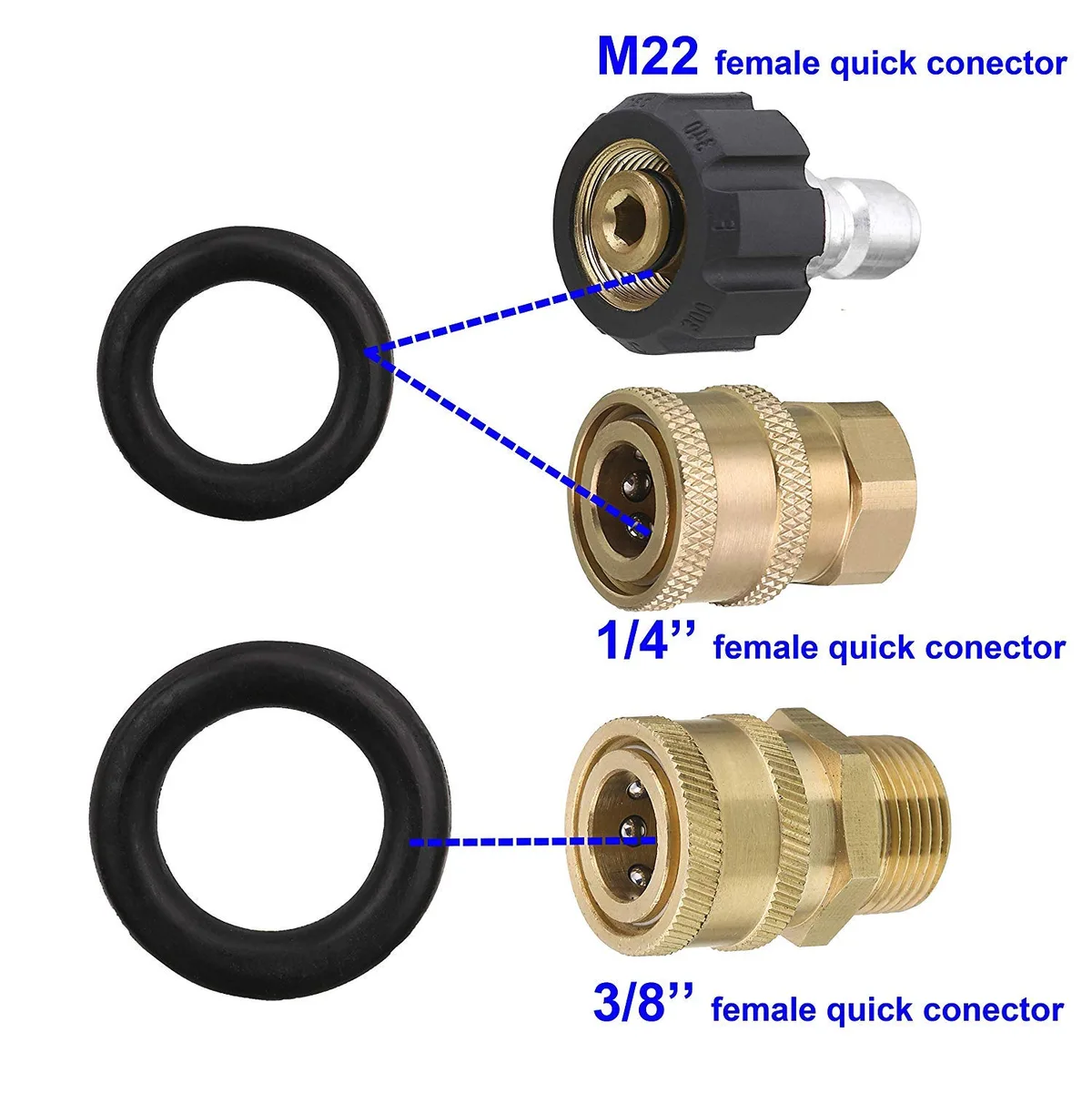

Leaks are almost always seals or O-rings. Check every quick-connect fitting first. The small rubber O-ring inside the female end can split, dry out, or pop out of place.

Replace it with a standard O-ring kit or a manufacturer replacement pack.

Image source: Bing (Web (fair-use with source credit))

The second suspect is the pump itself. If you stored the unit in an unheated garage over winter, frozen water can crack the pump head or damage internal seals. A cracked pump head is not repairable.

You would need to replace the entire pump assembly.

Before ordering parts, check the brass fittings on the hose. Overtightening the garden hose coupler can crack the brass connector and cause a drip around the pump inlet. Hand-tighten the connection, then give it only a light snug with a wrench.

Branch 4: Won't Pick Up Detergent or Soap

Sun Joe pressure washers siphon detergent through a small pickup tube from the onboard tank. If soap won't draw, the first culprit is always the nozzle tip. The black soap nozzle is the only tip that handles detergent.

The low-pressure tip creates enough suction to pull the soap from the tank.

If the tip is correct, inspect the siphon tube. A clogged pickup screen inside the tank stops the flow. Remove the tank, rinse it thoroughly, and clear the screen with a toothpick.

Also look for cracks in the tube itself. A split line won't siphon anything.

Thick detergent is another common issue. Most Sun Joe models work best with a water-thin soap solution. If your detergent is concentrated, dilute it with water before filling the tank.

Common Mistakes That Make Troubleshooting Harder

• Running the pump dry for more than 30 seconds. That wrecks the internal seals quickly.
• Using hot water. The maximum inlet temperature is 104°F (40°C). Hotter water deforms the pump seals.
• Choosing the wrong extension cord. An undersized cord causes motor stalls or tripped breakers.
• Over-tightening fittings. This cracks brass connectors and crushes O-rings.
• Skipping winter storage. A single freeze can crack the pump head and ruin the unit.

Per OSHA guidance, any electrical equipment used outdoors must plug into a GFCI-protected circuit. That includes your pressure washer. It's a simple safety check that prevents serious shocks.

Pro Maintenance to Prevent Future Breakdowns

• Rinse the inlet filter screen monthly during heavy use.
• Flush the pump by running clean water for 30 seconds after every job.
• Store the machine indoors, ideally above freezing.
• Before winter, drain all water from the pump and hoses.
• Run a cup of RV antifreeze through the system to protect leftover moisture.
• Lubricate O-rings with silicone grease each season.
• Replace spray nozzles when the orifice looks deformed or worn.

For the exact winterization steps on your model, check the manual on the official Sun Joe website. The process varies slightly between the SPX and XT series.

Frequently Asked Questions

Why does my Sun Joe pressure washer stop after a few seconds?

The Total Stop System usually causes this. The trigger gun must be fully squeezed before the motor will stay running. A low water supply or kinked hose can also trigger the auto-shutoff.

Pull the trigger completely open and verify the water supply is unrestricted.

How do I reset the thermal overload on a Sun Joe?

Unplug the unit and let the motor cool down. A small red button sits on the motor housing. Press it firmly until you hear a click.

Wait five minutes, then plug the machine back in and restart. If the button won't reset, the motor may be defective.

Why is my Sun Joe pressure washer leaking water from the bottom?

The leak usually comes from worn O-rings on the quick-connect fittings or a cracked pump head. Replace the O-rings first because they are cheap. If the pump head is cracked from freezing, the pump assembly must be replaced.

Can I use hot water in a Sun Joe pressure washer?

No. The maximum inlet water temperature is 104°F (40°C). Hot water will damage the internal seals and void the warranty.

Always connect the unit to a cold water supply from a garden hose.

How do I winterize a Sun Joe pressure washer?

Drain all water from the pump, hoses, and wand. Run a cup of RV antifreeze through the machine for about 10 seconds. Store the unit upright in a location above freezing.

Remove the spray wand and trigger gun to keep seals from sticking together.
