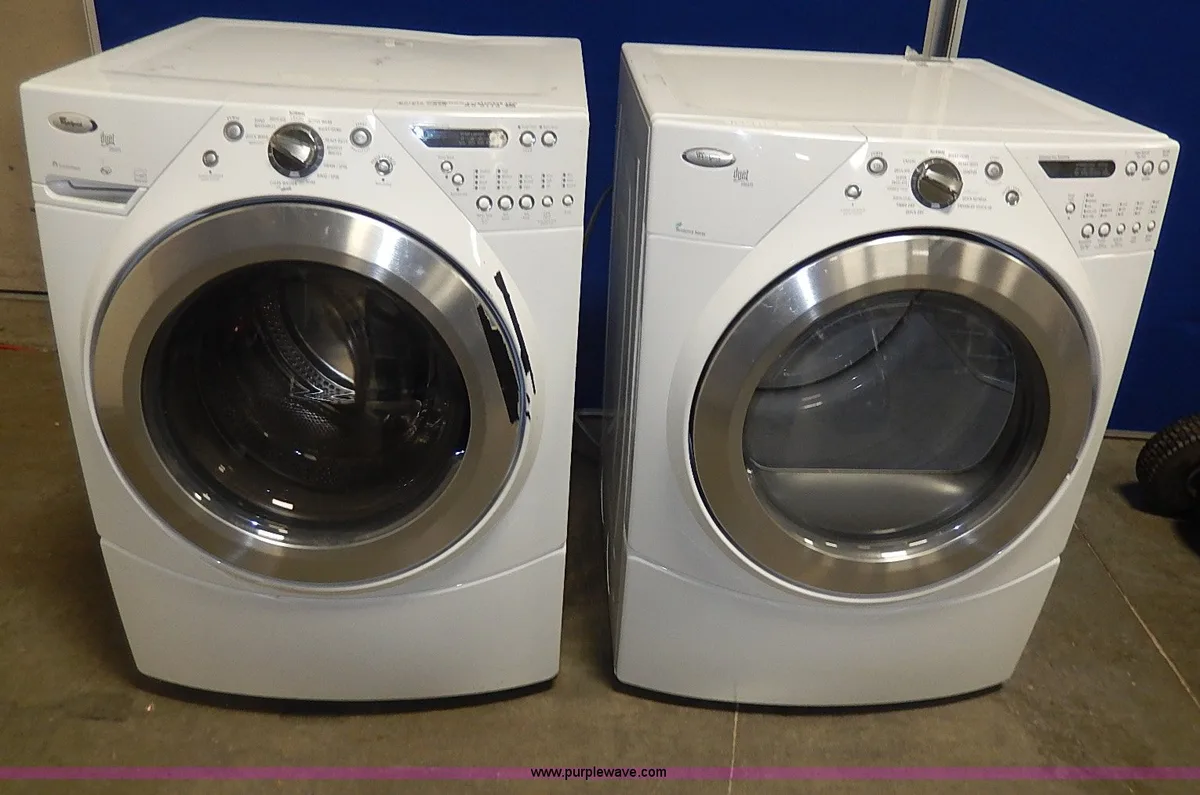

Whirlpool Duet Steam Washer Troubleshooting

If your Whirlpool Duet Steam washer has stopped mid-cycle or won’t start, you’re not alone. Working through Whirlpool Duet Steam Washer Troubleshooting can feel overwhelming, but most common issues boil down to a handful of predictable causes. Once you know where to look, you can usually fix it yourself in under an hour.

Service manuals for these machines list over 30 error codes, but about 80% of service calls are triggered by just five of them: F21, F28, F01, F02, and F33. That’s the good news. It means there’s a short list of suspects every time something goes wrong.

Let’s walk through each symptom step by step.

Quick Answer

Start by unplugging the washer for one full minute. Then check the error code from the blinking LED lights. Most codes point to a drain pump clog, a door lock failure, or a control board issue.

Match your symptom to the sections below and follow the decision tree.

Image source: Bing (Web (fair-use with source credit))

Start Here: Find Your Washer’s Error Code or Symptom

Your Duet Steam washer stores a diagnostic code every time it stops early. Press and hold the “Rinse” and “Spin” buttons at the same time for about three seconds. The LED display will flash a code like F21 or F28.

Write it down.

If the display is blank and the machine is dead, you likely have a power problem. Move to the next section. If the machine beeps but won’t start and the door light is flashing, that’s an F28 door lock issue.

Here are the most common codes you’ll run into:

• F01, Communication failure on the main control board
• F21, Drain pump failure or a clog in the drain system
• F28 / F29, Door lock not engaging or disengaging
• F33, Water temperature sensor fault
• F05, Motor speed sensor or tachometer issue

Per manufacturer specifications, the Duet uses a specific flash pattern. Each code shows up as a sequence of LED blinks repeated three times. If you can’t get a code at all, check the GFCI outlet and the thermal fuse first.

When the Washer Won’t Turn On or Start (Power, Control, or Door Lock)

Image source: Web (Bing) / blog.naver.com (Web image (fair-use with source credit))

This is the most common scenario. You push the power button and nothing happens. Or it lights up but won’t start a cycle.

Let’s narrow it down.

If the display is completely dead:

1. Check the GFCI outlet. Press the reset button. Many Duet owners trip this without realizing it, especially in basements or garages.
2. Unplug the washer for one full minute. Plug it back in. A temporary control board glitch can freeze the machine.
3. If still dead, test the outlet with a lamp. No power? Call an electrician.
4. If the outlet works, the thermal fuse may have blown. This is a small safety device on the control board. It looks like a white plastic rectangle with two wires. Use a multimeter to check for continuity. No continuity means it’s blown. Replace it with the exact OEM part (common part number WPW10508021).

If the display lights up but won’t start a cycle:

The door lock is the prime suspect. You’ll often hear a clicking sound but the door won’t latch. The lock assembly (part number WP221229 or WPW10605708) is a known wear item.

To test, open the door and look for a small plastic latch mechanism near the strike. If it’s cracked or stuck, the machine won’t start.

Sometimes the control board itself fails. You can test this by entering service mode. Hold “Rinse” and “Spin” for three seconds, then press “Start.” If the machine responds but won’t run a normal cycle, the board likely has a failed relay.

Replacement boards run about $100 to $200 and are straightforward to swap with a Phillips screwdriver. For official guidance, check the Whirlpool support site for your model’s service manual.

When It Won’t Drain or Spin (F21, Drain Pump, Belt, and Balance Issues)

Image source: Bing (Web (fair-use with source credit))

Error code F21 is the most frequent offender. It means the machine tried to drain but the water level didn’t drop fast enough. Nine times out of ten, the cause is a clogged drain pump filter or a foreign object stuck in the pump housing.

Check the drain pump first:

• Unplug the washer and shut off the water supply.
• Remove the bottom access panel (two screws, usually Torx T20).
• You’ll see a black plastic pump housing with a large rubber hose attached.
• Place a shallow pan underneath, then loosen the hose clamp and pull the hose off. Expect a cup or two of water.
• Reach into the pump cavity. You’ll likely find a coin, a sock, a hairpin, or a small piece of fabric. Remove it.
• Reattach the hose, replace the panel, and run a drain test.

If the pump is clean but the machine still won’t drain, the pump itself may have failed. Test it with a multimeter set to ohms. Probe the two terminals.

A good pump reads around 10 to 20 ohms. An open circuit means it’s dead.

If it spins but won’t spin fast or stops mid-cycle:

The drive belt might be slipping. On belt-drive Duet models, the belt runs from the motor pulley to the drum pulley. It should feel snug.

If you can twist it more than a quarter turn, replace it. Part number is typically WPW10267870.

Balance issues can also stop a spin cycle. If the load is heavy on one side, the machine will redistribute and try again. That’s normal.

But if it constantly stops during the spin, the suspension springs or dampers may be worn. You’ll hear thumping and see the washer rocking. Replace the four suspension rods (part number WPW10518226) as a set.

When the Steam Cycle Fails or No Heat (Thermal Fuse, Thermistor, Inlet Valves)

The steam feature on the Duet uses a dedicated heating element to raise water temperature above 140°F. If you run a steam cycle and clothes come out cold, you have a heat problem.

First suspect: the thermal fuse. There are actually two fuses on the Duet. One is on the control board. One is near the heating element.

The element fuse blows at about 192°F (90°C). It’s a one-time safety device. If it’s open, no heat.

Test with a multimeter. Replace with the exact OEM fuse (part number WPW10508021 or equivalent).

Second suspect: the thermistor. This is a temperature sensor mounted on the bottom of the tub. It tells the control board the water temperature. If it reads incorrectly, the board may not activate the heating element.

Test the resistance at room temperature. It should read about 10,000 ohms. If it’s way off, replace it.

Third suspect: the water inlet valves. The Duet uses separate hot and cold valves. If the hot water inlet screen is clogged with sediment, no hot water enters. The steam cycle can’t heat up.

Shut off the water, disconnect the hoses, and inspect the small mesh screens inside the valve ports. Clean them with a toothbrush or replace the valve assembly (part number WPW10128360).

Dirty inlet screens cause more steam failures than any actual electronic failure. It’s a five-minute fix that saves a service call.

When It Shakes, Leaks, or Makes Strange Noises (Suspension, Leveling, and Gasket)

A Duet that walks across the floor or bangs like a drum is trying to tell you something. Most of the time, it’s about leveling or suspension.

Leveling issues: Place a bubble level on top of the washer. It must be level front to back and side to side. Adjust the four feet by turning them.

They’re threaded. Lock the jam nuts once it’s level. Even a tiny tilt can cause the load to shift and trigger an out-of-balance stop.

Suspension springs and dampers: The Duet uses four springs that suspend the drum assembly. Over time, they stretch or lose tension. If you can rock the drum by hand and feel a lot of play, replace the spring set.

The dampers at the bottom can also fail. Signs include a metallic clanking during spin.

Leaks: The most common leak point is the door gasket. Check for a tear or a puddle of water under the door. Replace the gasket if it’s cracked.

Another leak source is the drain hose connection behind the machine. Make sure the clamp is tight.

Strange noises: A grinding or scraping sound usually means a foreign object is stuck between the drum and the tub. Listen closely. If it’s a low growl, it might be the drum bearing.

That’s a major repair. For a high-pitched squeal, suspect the belt or the pulley bearing. Stop the machine and inspect before it damages the motor.

Common Troubleshooting Mistakes That Waste Time and Money

We see the same errors repeated in forums and service logs. Avoid them and you’ll save both time and frustration.

Replacing parts without testing first. This is the number one money waster. You buy a new control board for $150, install it, and the same error code appears. Now you’re stuck with a non-returnable part.

Always test with a multimeter before ordering anything. A $10 meter can confirm a blown fuse or a dead pump in seconds.

Ignoring the error code. The Duet gives you a specific LED flash sequence for a reason. Guessing what’s wrong skips the machine’s own diagnostic intelligence. Write down the code before you touch anything.

It cuts your troubleshooting time in half.

Using non-HE detergent. This creates excessive suds that confuse the water level sensor. The machine thinks there’s a flood and stops mid-cycle or won’t drain. Use only HE detergent.

If you already used the wrong kind, run a clean washer cycle with a cup of white vinegar to break down the foam.

Forcing the door closed. If the door lock doesn’t engage, pushing harder won’t help. You can break the plastic latch mechanism. Instead, inspect the strike plate and the lock assembly for cracks.

A replacement lock costs about $30. A broken door panel costs a lot more.

Skipping the drain pump filter. Many Duet models have a filter that traps coins and lint. If you never clean it, water flow slows down and the machine throws an F21 error. Clean it every three months.

It takes five minutes.

Hosing down the control board. Some owners spray water or cleaner directly at the console. Water seeps under the membrane and shorts the touchpad. Use a damp cloth, not a spray bottle.

Frequently Asked Questions

How do I reset my Whirlpool Duet Steam washer?

Unplug the washer for one full minute. Plug it back in. Open and close the door six times within 12 seconds.

This clears the control board memory and resets the error codes. Run a test cycle afterward.

What does error code F21 mean on a Whirlpool Duet?

F21 means the machine cannot drain water fast enough. The drain pump is clogged, the pump has failed, or the drain hose is kinked. Start by checking the pump filter and the hose.

Clean any debris you find.

Why does my Duet washer lock but not start?

The door lock assembly has a switch that tells the control board the door is secure. If that switch is broken or misaligned, the machine stays locked but won’t fill. Replace the lock assembly.

Part number WP221229 fits most models.

Can I run my Duet without the steam feature working?

Yes. The steam function is separate from the main wash cycle. You can still run Normal, Heavy Duty, and Delicates cycles.

The steam only activates when you select a steam-specific option like Steam Clean or Fresh Spin.

How often should I clean the drain pump filter?

Every three months or after every 30 loads. If you wash items with loose coins or lint-heavy fabrics, check it monthly. A clean filter prevents F21 errors and extends the life of your drain pump.
