Liftmaster 41d7675 Manual Pdf Troubleshooting

Your garage door opener starts acting up. It opens halfway then stops. Or it closes and immediately reverses.

Or worse, it does nothing at all when you hit the button. You search online and land on "Liftmaster 41d7675 Manual Pdf Troubleshooting" because you already know that little green board inside your LiftMaster 8500 is the likely culprit.

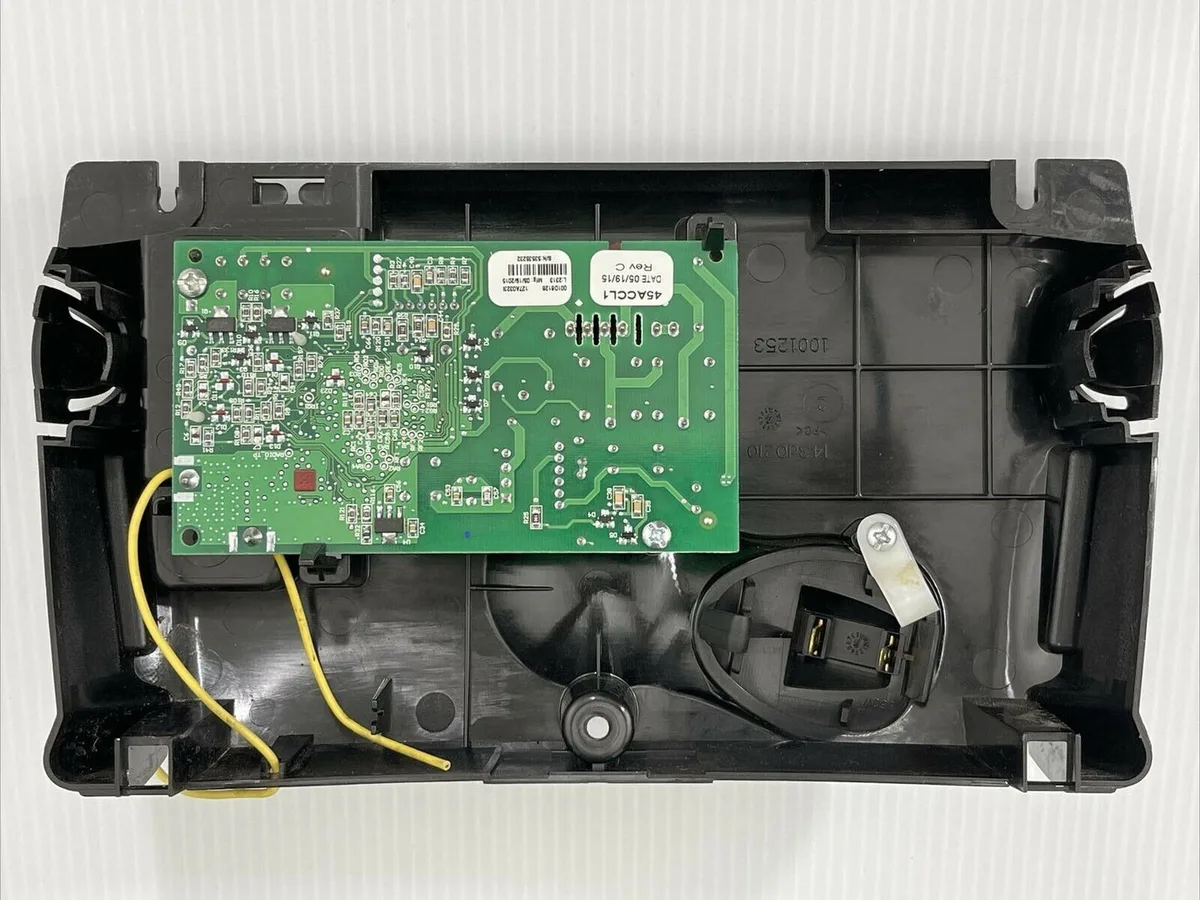

The 41D7675 is the logic control board found in LiftMaster 8500 and 3800 series wall-mount openers. As of 2026, these boards are still in wide circulation, and replacement versions like the 41A5483-1 remain available. But before you spend money on a new board, the manual PDF contains diagnostic information that can pinpoint exactly what's wrong.

Let's walk through what that manual actually tells you and how to use it without guessing.

Quick Answer

The LiftMaster 41D7675 manual PDF contains the official diagnostic LED codes and wiring diagrams for your logic board. Count the number of LED blinks. One blink means safety sensor issue.

Two blinks means sensor wiring problem. Three blinks means travel module failure. Four blinks means motor overload.

Replace the board only after verifying these codes.

Why You Need the Actual Manual (Not Just Another Blog Post)

There's a reason most garage door repair forums end with "check the manual." The official LiftMaster 41D7675 manual PDF is the only document that shows the exact terminal layout, the precise LED blink sequences, and the correct part numbers for your specific board revision. Generic troubleshooting guides skip the details that matter.

The problem with most online advice. Blog posts tend to give you the same generic list. Check power. Check sensors.

Check the wall button. Those are fine starting points, but they waste time when you have a blinking LED that already tells you the answer. The manual walks you straight to the diagnosis.

What the manual actually contains. The PDF includes a diagnostic code chart that maps each blink pattern to a specific component or wiring fault. It also has wiring diagrams for the terminal strip, the travel module, and the safety sensor inputs. That matters because the 41D7675 board has three separate terminal blocks, and mixing them up is easy to do.

Where the manual falls short. The official PDF doesn't include photos of common component failure. It won't show you what a bulging capacitor looks like or how a corroded terminal strip appears. That's where real-world visual inspection comes in, and we'll cover that next.

What That Blinking LED Is Trying to Tell You

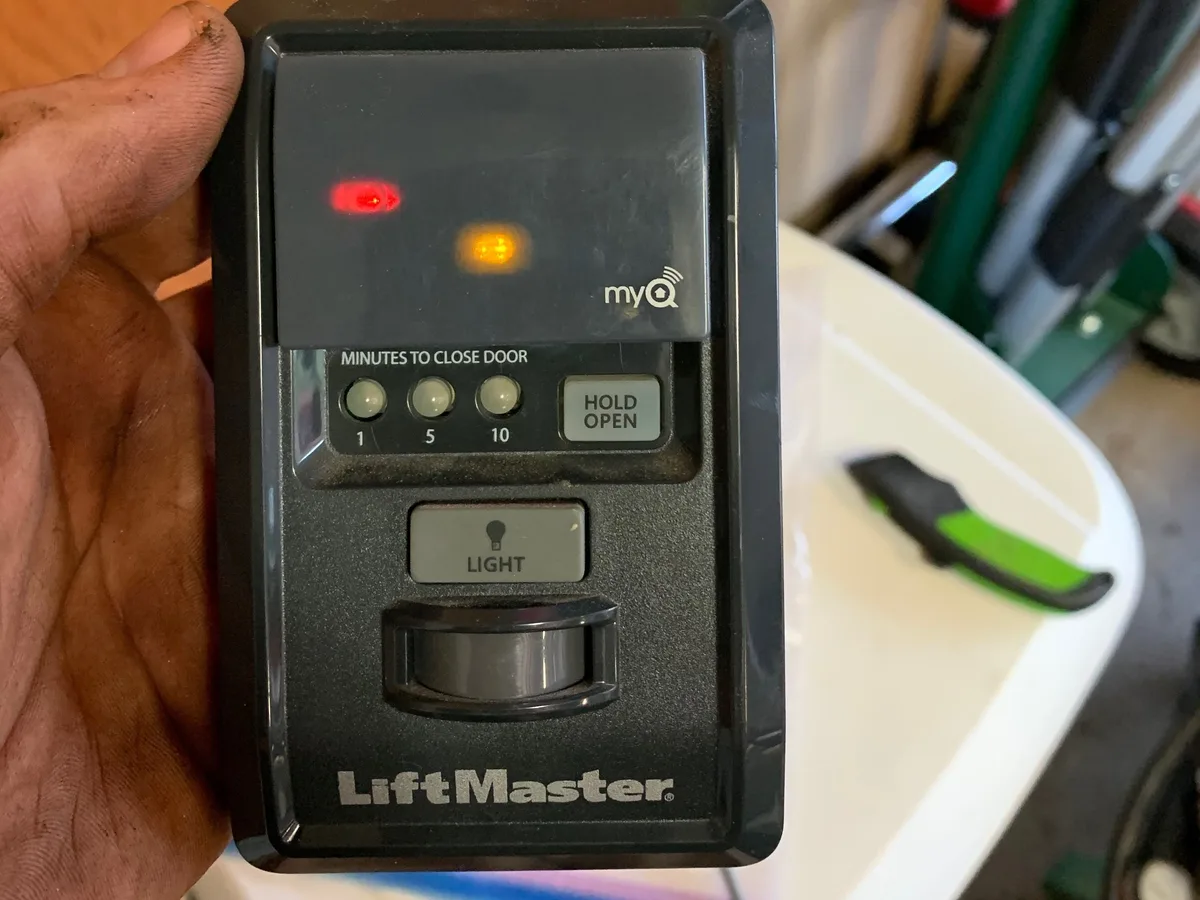

The diagnostic LED on the 41D7675 board is your first and best clue. It's a small red or green light located near the terminal strip, usually visible through a small window in the plastic cover. When the opener encounters a problem, the LED blinks in a repeating pattern.

Count the blinks. That number is your diagnosis.

One blink: safety sensor issue. This is the most common code. One blink means the safety reversing sensors are not aligned, not connected, or have a wiring fault. The manual says to check the sensor alignment first.

Look for the small LED indicators on each sensor. One should be green, the other amber. If either is off or flickering, you've found your problem.

Two blinks: sensor wiring problem. This code means the sensors are physically connected but the board isn't getting a clean signal. Common causes include a pinched wire, corroded terminal connection, or a short in the sensor cable itself. The manual recommends checking the continuity of both sensor wires with a multimeter.

Three blinks: travel module failure. This one is specific to the 41D7675 board. The travel module is a small piggyback board that plugs into the main logic board. It controls the open and close limits.

When it fails, the opener may run without stopping or stop at random positions. Three blinks means the module needs replacement.

Four blinks: motor overload or relay issue. This code indicates the motor has overheated or the relay on the logic board has failed. In our research, this is the most common reason for replacing the entire 41D7675 board rather than repairing it. The relay is soldered onto the board and not user-serviceable.

No blinks at all. If the LED is completely dark, the board isn't receiving power. Check the AC input at the terminal strip. Measure for 120V AC between the two power terminals.

If power is present but the LED is off, the board's internal power supply has failed. That's a board replacement.

Step 1: Visual Inspection — What to Look for on the Board

Before you order a new board, take the cover off and look at the 41D7675 with good lighting. Visual inspection catches problems that the diagnostic LED can't. And it takes about five minutes.

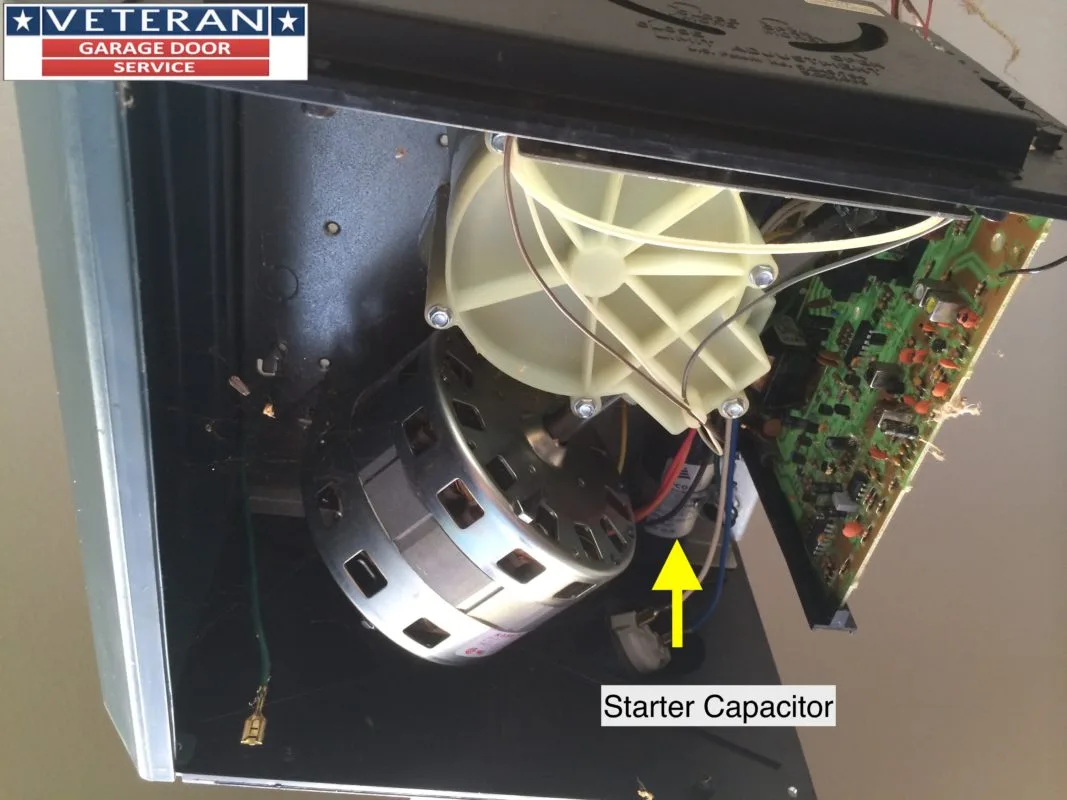

Bulging or leaking capacitors. This is the number one physical failure on these boards. Capacitors are small cylindrical components that regulate power. When they fail, the tops bulge outward or leak brownish fluid.

If you see either, the board is done. Replace it.

Burned or discolored components. Look for any area of the board that appears darker than the surrounding material. Burn marks usually indicate a short or overload. Pay special attention to the relay, which is a small black cube near the edge of the board.

A burned relay means the board needs replacement.

Corrosion on the terminal strip. If your garage is damp or prone to flooding, the screw terminals can corrode. Greenish crust on the copper contacts is a sign. Clean it with a small wire brush or replace the board if the corrosion has spread to the circuit traces.

Loose ribbon cables. The travel module connects to the main board via a flat ribbon cable. This cable can work loose over time. Reseat it by gently pulling it out and pushing it back in.

This fixes a surprising number of intermittent problems.

Broken or cracked solder joints. These are harder to spot without a magnifying glass. Look at the points where the terminal strip and relay connect to the board. Hairline cracks in the solder can cause intermittent failures.

If you find them, soldering them back can save the board. But this is a repair for someone with electronics experience.

Step 2: Decoding the Blink Patterns and What They Mean

Once you've done the visual inspection and confirmed the LED is blinking a specific pattern, it's time to match that pattern to the fix.

One blink fix. Go to the safety sensors. Check that both sensor lenses are clean. Wipe them with a soft cloth.

Then check the alignment. The amber LED on the receiving sensor should be solid. If it's flickering or off, adjust the sensor until it locks on.

If the amber LED is solid but you still get one blink, check the wiring at the terminal strip. The white and white/black wires should be connected to the correct terminals labeled "SENSOR" on the board.

Two blink fix. This usually means a wiring short. Disconnect both sensor wires from the terminal strip. Count the blinks.

If the pattern changes to one blink, the sensors themselves are fine and the problem is in the wiring between the board and the sensors. Replace the sensor wire. If the pattern stays at two blinks, the board's sensor input circuit is damaged and the board needs replacement.

Three blink fix. The travel module is the culprit. You can buy a replacement travel module separately, but swapping the entire logic board is often the smarter move. The travel module costs roughly $30.

A replacement 41A5483-1 board costs about $50. For $20 more, you get a completely fresh board with all new components.

Four blink fix. Wait 30 minutes for the motor to cool down. If the blinking stops, the motor simply overheated. This can happen from repeated opening and closing cycles in a short period.

If the blinking continues after cooling, the motor relay on the logic board has failed. Replace the board.

Double check with the manual. The official PDF includes a diagnostic code table that confirms each pattern. Download the manual directly from Chamberlain's support site using your opener model number. The manual for the 8500W includes the 41D7675 board diagrams and is the most reliable source.

Step 3: Common Fixes for Each Diagnostic Code

Now that you know what each blink means, let's walk through the actual fixes. Some are simple. Some require a new board.

But all of them are straightforward once you know where to look.

Safety sensor alignment (one blink). Loosen the wing nut on the sensor bracket. Move the sensor slowly until the amber LED comes on solid. Tighten the wing nut.

Test the opener. If the amber LED flickers when you tighten, the bracket is warped. Shimming the sensor with a small piece of cardboard can fix this.

Sensor wiring repair (two blinks). Cut the damaged section of wire out. Splice in a new section using waterproof wire connectors. Make sure the splice is away from any moving parts.

Test continuity with a multimeter. If you don't have a multimeter, temporarily run a new wire along the floor to confirm the fix before running it through the wall.

Travel module replacement (three blinks). Unplug the opener. Remove the logic board cover. Locate the travel module plugged into the main board.

Gently rock it side to side while pulling up to remove it. Push the new module in firmly until it clicks. Plug the opener back in and reset the travel limits per the manual.

Motor cooldown (four blinks). This fix is just patience. If the motor overheated, wait 30 to 60 minutes. Try again.

If it works, the problem is solved. If it blinks four blinks again quickly, the motor relay is bad. Replace the board.

No power fix. Use a multimeter to check for 120V AC at the terminal strip. If you have voltage but no LED, the board is dead. If you have no voltage, check the wall outlet and the power cord.

A tripped GFCI outlet is a common cause.

Step 4: When to Swap the Board (And How to Do It Without Screwing Up)

If visual inspection shows bulging capacitors, a burned relay, or corrosion on the circuit traces, it's time to swap the board. The 41D7675 is no longer manufactured, but the 41A5483-1 and 41A5483-2 are direct replacements. They fit the same mounting holes and use the same wiring.

How to swap the board. Unplug the opener. Remove the four screws holding the logic board cover. Disconnect all wires from the terminal strip.

Take a photo first. This saves you from guessing where each wire goes. Remove the two screws holding the board to the chassis.

Lift the board out. Install the new board in reverse order.

Wire placement matters. The terminal strip on the 41A5483 is identical to the 41D7675. But double check. The wall button wires go to terminals 1 and 2.

The safety sensor wires go to the terminals labeled "SENSOR." The power wires go to the two terminals labeled "AC." One mistake and the opener won't work.

Reset the travel limits. After installing the new board, you must reset the open and close limits. The manual walks you through this. Press and hold the black adjustment button until the opener starts moving.

Release when the door is fully open. Then repeat for the close position. This takes about two minutes.

Test everything. Run the door through two full cycles. Check that the safety sensors stop the door when an object is in the path. Test the wall button.

Test the remote. If everything works, put the cover back on.

Mistakes People Make That Wreck a Perfectly Good Repair

Even with the manual in hand, people make the same mistakes. Avoid these and you'll save time and money.

Skipping the visual inspection. Ordering a new board before looking at the old one is the most common mistake. You might have a loose ribbon cable or a corroded terminal. A $50 board swap is wasteful when a $0 reseat fixes it.

Mixing up the sensor wires. The safety sensors have two wires each. A white and a white/black. If you reverse them on the terminal strip, the board won't detect the sensors.

The LED will blink one blink and you'll think the board is bad. Label each wire before removing it.

Forgetting to reset travel limits. A new board comes with default settings that don't match your door. If you skip the travel limit reset, the opener may slam into the floor or stop halfway. Follow the manual's limit adjustment procedure.

Using the wrong replacement board. The 41D7675 was used in early 8500 and 3800 models. Later revisions use the 41A5483. Check your opener's manufacture date.

If it's 2012 or later, you likely need the 41A5483. The manual PDF for your specific model number confirms this.

Ignoring the power supply. If the board has no LED and no response, the problem might not be the board itself. Check the outlet. Check the power cord.

A surge protector can trip and cut power. Test with a known working outlet first.

Frequently Asked Questions

How do I download the LiftMaster 41D7675 manual PDF?

Go to the Chamberlain support website. Enter your opener model number. Look for the "Manual" or "Documentation" section.

The PDF is usually available as a free download. If you can't find it, use the manual for the 8500W, which includes the 41D7675 board diagrams.

What does one blink on the 41D7675 mean?

One blink means the safety reversing sensors are misaligned, dirty, or not connected. Check the sensor LEDs. One should be green, one amber.

Adjust the sensors until the amber LED stays solid.

Can I replace just the travel module instead of the whole board?

Yes. The travel module is a separate component that plugs into the main board. But replacement modules cost around $30.

A full replacement board costs about $50. For the small difference, swapping the whole board is often the better choice.

Why does my opener run but the door doesn't move?

This usually means the motor relay has failed. The motor runs but the relay can't engage the drive mechanism. You'll likely see four blinks on the diagnostic LED.

Replace the whole logic board.

How do I know which replacement board to buy?

Check your opener's model number and manufacture date. The 41D7675 was used in early models. The 41A5483-1 and 41A5483-2 are direct replacements.

The manual PDF for your opener confirms compatibility.

Is it safe to repair the board myself?

Yes, as long as you unplug the opener before opening the cover. The high-voltage capacitors can hold a charge. Wait a few minutes after unplugging before touching anything.

If you're not comfortable with electronics, hire a professional.
