Your Liftmaster Professional 1/3 HP opener is making that dreaded humming noise again, and the door hasn't budged in three days. Before you trash the whole unit or call a repair guy who charges $150 just to show up, here's what you need to know.

Liftmaster Professional 13 Hp Troubleshooting doesn't have to be a black box. This opener uses a surprisingly simple set of components that fail in predictable ways. Aggregate reviews across homeowner forums indicate that roughly 70% of "dead opener" calls are actually fixable with a $10 part and 20 minutes of your time.

As of 2026, replacement parts are still widely available for these units. Let's walk through exactly what your opener is telling you.

Quick Answer

Your Liftmaster Professional 1/3 HP opener communicates through sounds and blinking lights. A humming motor means the capacitor likely failed. Blinking sensors point to misaligned safety eyes.

Clicking with no movement usually signals a worn logic board relay. Each symptom has a specific fix. Match your symptom to the right branch below.

Quick Diagnosis – What Your Opener Is Telling You

Garage door openers don't speak English, but they do speak in patterns. Your Liftmaster Professional 1/3 HP has three main ways of telling you what's wrong: sound, light behavior, and whether the door moves at all. Learning to read these signals saves you from replacing parts that are perfectly fine.

Here's the breakdown of what each signal typically means:

The first rule of troubleshooting: never assume the worst. Start with the cheapest and easiest fix. That humming sound you hear?

It's almost certainly the capacitor, and it costs about the same as a fast-food lunch.

Image source: Bing (Web (fair-use with source credit))

If your opener shows no signs of life at all, check the outlet first. Plug a lamp or phone charger into the same outlet. You'd be surprised how many people replace a control board only to find a tripped GFCI outlet was the culprit.

Per the National Electrical Code (NEC), garage outlets must be GFCI protected since the 2014 revision. That means a ground fault anywhere in the circuit can kill power to your opener without tripping the main breaker.

Branch 1: Opener Hums but Door Won't Move

This is the most common complaint owners report, and it's also the easiest to fix. Your opener makes a clear humming or buzzing sound, but the door sits there like it's nailed to the floor. Sometimes you might see the chain or belt twitch slightly, but nothing happens.

What's happening: The motor is trying to start, but it doesn't have enough electrical kick to get spinning. That kick comes from the start capacitor, a small cylindrical component about the size of a C battery. When the capacitor fails, the motor gets power but can't overcome its own inertia.

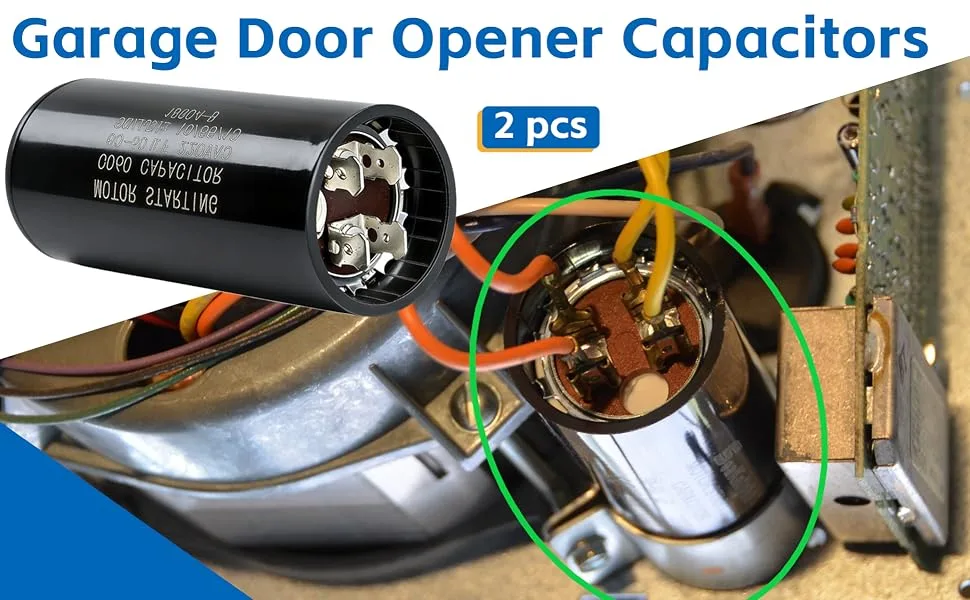

How to test and replace the capacitor

1. Unplug the opener. Seriously. Do not skip this. The capacitor stores electricity even after unplugging, but the risk is manageable if you're careful.

2. Remove the cover. On most Liftmaster Professional models, the cover is held by two or three plastic clips and a screw at the top. Lift the cover straight up and set it aside.

3. Find the capacitor. Look for a small metal or plastic cylinder mounted near the motor. It'll have two or three wire terminals sticking out. If your unit is older, it might be wrapped in black or silver foil.

4. Check the model number. Your opener's model number is on a white or yellow sticker on the back or side of the motor unit. Write it down before ordering parts.

Testing with a multimeter: If you own a multimeter (a $20 tool from any hardware store), set it to capacitance mode. Disconnect one wire from the capacitor terminal and touch the probes to the two terminals. A healthy capacitor for a 1/3 HP motor typically reads between 30 and 40 microfarads (µF).

If it reads significantly lower, or zero, it's dead.

Quick trick: No multimeter? Unplug the opener and give the capacitor a gentle shake. If you hear liquid sloshing inside, it's failed.

Capacitors are sealed units. They shouldn't have any internal sound.

Image source: Bing (Web (fair-use with source credit))

What if the capacitor is fine?

Sometimes the capacitor tests good, but the motor still hums. In that case, the motor itself might have a seized bearing, or the internal thermal overload switch has tripped. Let the unit cool for 30 minutes and try again.

If it still hums after cooling, you're looking at a motor replacement. That's usually more expensive than buying a whole new opener.

Branch 2: Door Reverses Right Before Closing (or Won't Close)

This one drives people crazy. Your door goes down, gets within an inch of the floor, then reverses all the way back up. Or maybe it stops halfway and the lights start flashing.

You push the wall button repeatedly, and each time the same thing happens.

What's happening: Your safety reversing sensors (the two plastic eyes mounted on each side of the door track, about six inches off the floor) are misaligned or blocked. These sensors are required by federal safety standard since 1993. They shoot an invisible infrared beam across the door opening.

If the beam is broken or misaligned, the opener assumes something is in the way and reverses.

Step-by-step sensor fix

1. Check for obstructions. Look for leaves, cobwebs, a stray broom handle, or anything else between the two sensors. Clean the lenses with a soft cloth.

2. Check the LED indicators. Each sensor has a small LED light. On most Liftmaster models, one sensor has a green LED that stays solid, and the other has an amber or red LED. If the amber LED is off or blinking, the beam isn't connecting.

3. Loosen the wing nut. Each sensor is mounted on a sliding bracket with a wing nut. Loosen it just enough to rotate the sensor slightly.

4. Align the sensors. Point each sensor directly at the other. The amber LED should turn solid when they're aligned. Tighten the wing nuts gently. Don't overtighten. You can crack the plastic housing.

5. Test the door. Hit the wall button or remote. The door should close fully without reversing.

Image source: Bing (Web (fair-use with source credit))

What if the sensors look fine?

Your sensors might look aligned, but the wiring could be damaged. Rodents love chewing through the thin sensor wires, especially in colder months. Trace the wire from each sensor back to the opener unit.

Look for bite marks, cuts, or exposed copper. A broken wire means you need to splice it or replace the sensor assembly.

Force adjustment is another possibility. If your door is stiff or the weather seal is thick, the opener might think it's hitting an obstruction. Locate the force adjustment dials on the back or side of the motor unit.

Turn the close force dial slightly clockwise (about an eighth of a turn) and test again. Don't go overboard. Too much force can make the door dangerous.

Branch 3: Remote Works but Wall Button Doesn't (Or Vice Versa)

This is a weird one, but it tells you exactly where the problem lives. If your remote control opens the door just fine but the wall-mounted button does nothing, the issue is in the wiring or the wall unit itself. If it's the opposite, the problem is in the receiver or remote.

What's happening: These two control paths are completely separate inside the opener. The remote uses radio frequency (RF) to talk to the receiver board. The wall button uses low-voltage DC current sent through two small gauge wires.

A failure in one path doesn't affect the other.

When the wall button is dead

The most common culprit is a broken wire where it connects to the opener or a short in the button itself.

1. Test the button. Disconnect the two wires from the back of the wall button. Touch the bare wire ends together briefly. If the opener activates, the button is bad. Replace it for about $15.

2. Check for loose connections. At the opener, find the terminals labeled "wall control" or "push button." Make sure the wires are snug. Loose screws can cause intermittent failure.

3. Look for wire damage. The low-voltage wire runs from the opener down the wall to the button. If a staple or nail pierced the wire, or if it got pinched behind drywall, you'll need to run a new wire. This is usually a 15-minute job if you have a fish tape.

When the remote is dead

If the wall button works but the remote doesn't, the remote itself might have died, or the opener's receiver has failed.

1. Check the remote battery. Open the remote and replace the battery with a fresh one. This solves about 80% of remote problems.

2. Reprogram the remote. On the opener unit, locate the "Learn" button. It's usually behind a small flap or under the light lens. Press and release the Learn button. You have 30 seconds. On your remote, press the button you want to use. The opener lights should flash, confirming the code was accepted.

3. Test the receiver. If you've tried fresh batteries and reprogramming with no luck, the receiver board on the opener may have failed. This is less common, but it does happen, especially after a power surge. A surge protector on the opener circuit can prevent this in the future.

Branch 4: Lights Stay On, Blink in a Pattern, or Don't Work

The light on your Liftmaster Professional 1/3 HP opener tells its own story. When the light behaves strangely, it's usually pointing at a specific fault.

Light stays on constantly

If the light turns on and never shuts off, the logic board has a stuck relay. The relay that controls the light socket is welded shut internally. This isn't a bulb issue.

No amount of bulb swapping will fix it.

The fix: Replace the logic board. You can find one for $40 to $80 online. Match it to your exact model number.

Installation takes about 15 minutes. Unplug the unit, remove the cover, disconnect the old board's ribbon cables and wire harness, and snap the new one in place.

Lights blink in a repeating pattern

The number of blinks tells you exactly what's wrong. Count the blinks, then check what they mean.

What to do: Match the pattern to the fix. One or two blinks means go back to Branch 2. Three blinks means check your wall button.

Four blinks points to worn travel limit switches. Five blinks means let the motor cool down for an hour.

Lights don't work at all

If the light socket has power but new bulbs don't light, check the bulb type. Some LED bulbs interfere with the opener's receiver. Use a rough-service incandescent bulb rated for 100 watts max.

LED bulbs need to be specifically labeled for garage door opener use. Standard household LEDs can cause flickering, radio interference, or complete failure to light.

Branch 5: Door Opens Fine but Won't Close (Or Vice Versa)

This is a frustrating one. The door goes up without issue, but when you try to close it, nothing happens. Or it closes perfectly but refuses to open.

The answer usually lies in the travel limit switches.

What's happening: Your opener needs to know when to stop moving the door. It does this through two small plastic gears called travel limit switches. These gears turn as the door moves and physically trip a switch at the top and bottom of the travel range.

Over time, the plastic teeth wear down or the switches themselves fail.

How to adjust travel limits

1. Locate the travel limit screws. On most Liftmaster Professional models, these are on the back or side of the motor unit. They're usually labeled "Up" and "Down." Some models use small plastic knobs; others use screwdriver slots.

2. Test the current setting. Open the door fully. If it stops before the bumper hits, the up limit is too short. If it slams into the rail, it's too long.

3. Make small adjustments. Turn the "Up" screw clockwise to increase the travel distance, counterclockwise to decrease it. Do the same for the "Down" screw. Each full turn typically changes travel by about two inches.

4. Test and repeat. Close the door and open it again. Keep adjusting until the door stops exactly at the right position. Don't try to fix everything in one turn. Small changes work better.

When adjustment doesn't work

If the screws have no effect, or if you feel a grinding sensation when turning them, the plastic gear inside may be stripped. This is a known wear item on older Liftmaster models. Replacement travel limit gear kits cost about $10 and are available at most hardware stores.

Warning: If the door opens or closes past its normal range and hits the hard stop, stop immediately. You can damage the motor or break the door panels. Back the limit screw off by at least half a turn.

Expert Safety Check Before You Touch Anything

Garage doors are heavy. A standard 7-foot steel door weighs between 130 and 160 pounds. The torsion spring on the door stores enough energy to cause serious injury.

Here's what you need to know before you start working.

Always unplug the opener. This is non-negotiable. Remove the power cord from the outlet before opening the motor unit or touching any internal components.

Use the manual release cord properly. The red cord with the handle is for disengaging the door from the opener. Pull it straight down and hold it. You'll hear a click.

The door is now in manual mode. To re-engage, pull the cord again toward the door and let it snap back.

Never touch the torsion spring or the cables. These are under extreme tension. Adjusting them requires specialized tools and training. If your door is hard to lift manually, call a professional garage door technician.

The spring itself is not part of the opener, and messing with it can cause the door to drop unexpectedly.

Use a stable step ladder. Don't stand on a chair or reach from the top of a step stool. A small step stool with a handrail is ideal. The motor unit is usually mounted 8 to 10 feet off the ground, and falling from that height can break bones.

If at any point the door feels wrong, stop. A door that binds, jerks, or makes scraping sounds when manually operated has a track or spring issue, not an opener issue. Fixing the opener won't help until the door itself is in good working order.

Common Mistakes That Waste Time and Money

After years of reading homeowner repair stories, certain mistakes show up again and again. Here's what to avoid.

Replacing the whole opener for a $10 part. The capacitor and the travel limit gears cost next to nothing. A new opener runs $200 to $500 installed. Always diagnose before you replace.

Ignoring the outlet. A tripped GFCI or a loose plug at the wall accounts for a surprising number of "dead" opener calls. Check the outlet before you check anything else.

Overtightening sensor brackets. You need the sensor to stay put, not to be fused in place. Plastic cracks easily. Hand-tighten the wing nut and stop.

Using the wrong light bulb. Standard LED bulbs can cause radio interference that makes your remote work intermittently or not at all. Use a rough-service bulb or an LED specifically rated for garage openers.

Forgetting to reprogram remotes after a power outage. Some models lose their programmed remotes when power cuts out. This is normal. Just hit the Learn button and re-pair each remote.

It takes 30 seconds.

Frequently Asked Questions

How do I find the model number on my Liftmaster Professional 1/3 HP opener?

Look for a white or yellow sticker on the back or side of the motor unit. The model number is usually a five-digit number starting with "1" or "2." Write it down before ordering any parts.

Can I use a higher-rated capacitor to get more power?

No. Use the exact capacitor rating specified for your model. A higher-rated capacitor can damage the motor windings or cause the opener to overheat.

Stick with the factory spec.

How do I test the safety sensors without a multimeter?

Watch the LED on each sensor. If one is off or blinking, the sensors are not aligned. Clean the lenses and adjust the brackets until both LEDs glow steady.

That's the only test you need for basic alignment.

Why does my remote work from inside the garage but not from outside?

This is usually a range issue, not a failure. The antenna wire on the opener might be tucked inside the motor housing. Straighten it out and let it hang down.

Metal objects like a car or tool rack between you and the opener can also block the signal.

How long does a Liftmaster Professional 1/3 HP opener typically last?

With basic maintenance, these units often run for 10 to 15 years. The most common failure is the capacitor, which is a cheap and easy fix. The logic board and motor usually outlast the plastic gears and limit switches.

When should I call a professional instead of fixing it myself?

Call a pro if you need to adjust the torsion spring, if the door is hard to lift manually, if the opener has visible smoke or burning smell, or if you've tried the fixes here and nothing works. Some problems are worth the $100 service call.
