Moen 1225 Cartridge Replacement Troubleshooting
Your Moen faucet started dripping. Or maybe the handle won't turn off all the way. Or the water temperature swings from scalding to freezing with barely a touch.
If you've landed here, you're probably staring at a faucet that's acting up and wondering if you need to call a plumber. Chances are, you don't. Moen 1225 Cartridge Replacement Troubleshooting is one of those DIY skills that saves you a service call and has you back to normal in under an hour.
The fix itself is straightforward, but the troubleshooting part is where most people get stuck.

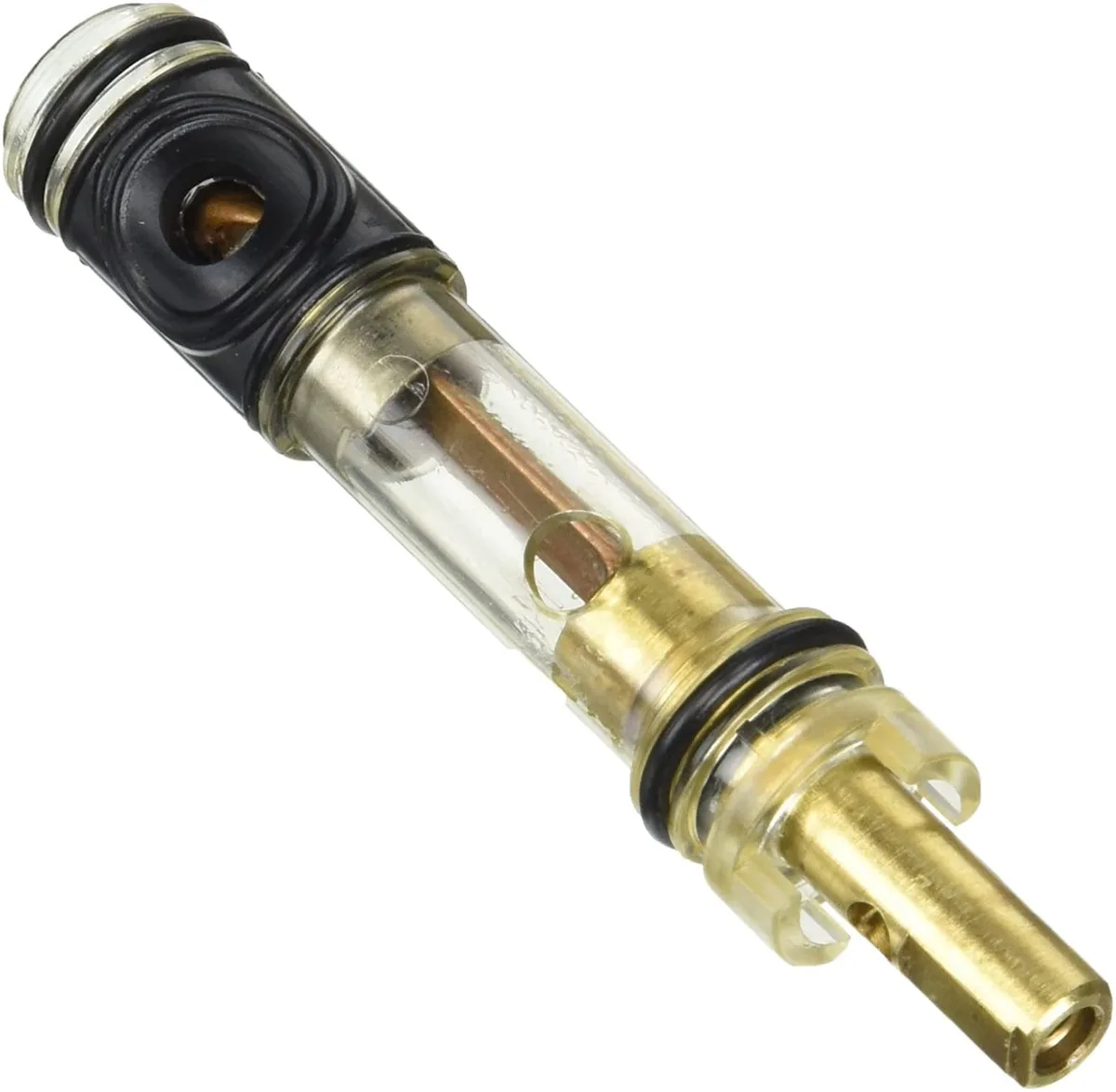

That's because the Moen 1225 cartridge sits inside a Posi-Temp valve system that's been standard in millions of homes built since the early 1990s. Per Moen's own specifications, the cartridge is designed to last about 10 to 15 years under normal water conditions. But hard water, mineral buildup, and plain old wear and tear can cause problems much sooner.
The trick is knowing which problem you're dealing with before you start yanking on things. Let's walk through it step by step.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
The Moen 1225 cartridge controls hot and cold water mixing and on/off flow. If your faucet drips, won't shut off, or has temperature issues, the cartridge is likely failing. Replace it by shutting off water, removing the handle and retaining clip, pulling the old cartridge, and installing a new one with lubricated O-rings.
Use a cartridge puller tool if it's stuck. Always test for leaks before reassembling fully.
Which Moen 1225 Problem Are You Having?
Before you buy a replacement cartridge or grab any tools, stop and look at what your faucet is actually doing. The Moen 1225 fails in three distinct ways, and each one has a different root cause. Treating the wrong symptom means wasted time and a second trip to the hardware store.
| Symptom | Most Likely Cause | What to Check First |
|---|---|---|
| Faucet drips or water trickles constantly | Worn O-rings or debris on the cartridge seal | Confirm water supply is fully shut off |
| Handle won't turn off completely | Cartridge stem is stripped or internal mechanism failed | Check if handle spins freely without engaging |
| Water temperature is wrong (too hot, too cold, or inconsistent) | Temperature limit stop is misaligned or cartridge is failing | Test both hot and cold supply lines individually |
If your faucet drips only when the handle is in a certain position, that's a strong sign the cartridge O-rings have worn unevenly. The rubber seals develop flat spots over time, and water finds the gap. You'll feel it with your finger if you run it along the cartridge body where it meets the valve housing.
Aggregate reviews from DIY forums confirm this is the most common failure mode for the 1225.
If the handle feels loose like it's spinning without actually pushing the stem, the splines on the cartridge stem have probably stripped. This happens more often in hard water areas where calcium deposits add friction. The handle works harder to turn, and eventually the plastic splines give out.
Temperature problems usually mean the cartridge is still functional but the internal mixing mechanism is failing. As of 2026, Moen still produces the 1225 with a brass body and plastic internal components, which means temperature regulation can degrade before the cartridge actually leaks. If you get nothing but cold water, the hot side supply line or valve might be the issue, not the cartridge itself.
We'll cover that in the troubleshooting branches below.
Quick Tools and Parts Checklist
You don't need a full plumbing kit to swap a Moen 1225. Most of what you need is already in a basic toolbox. But there are a few specialty items that make the difference between a 15-minute job and a two-hour wrestling match.
| Tool or Part | Why You Need It | Pro Tip |
|---|---|---|
| Moen 1225 replacement cartridge | The core fix | Get the genuine Moen part, not a generic |
| Allen wrench set (3/32" or 1/8" most common) | Removes handle set screw | Magnetic tip ones save dropped screws |
| Needle-nose pliers | Removes the retaining clip | Right-angle pliers work best in tight spaces |
| Adjustable wrench | Loosens the retaining nut under the handle | Wrap jaws with tape to avoid scratching chrome |
| Flathead screwdriver | Prying off stubborn escutcheon or clip | Use a plastic trim tool if you have one |
| Cartridge puller tool | Extracts seized cartridges | Worth the $10 if you have hard water |
| Plumber's grease (silicone-based) | Lubricates new O-rings | Never use petroleum jelly, it rots rubber |
| Towel or small bucket | Catches residual water in the valve body | You'll get maybe a cup of water, not a flood |
The cartridge itself runs between $10 and $20 at most hardware stores. Moen also sells a 1225B variant, which is identical except for a brass sleeve around the cartridge body. Some users report the brass sleeve helps with corrosion resistance in hard water areas.
Both fit the same valve housing.
Here's the one thing people overlook: check your faucet model number before buying. Moen uses the 1225 in the majority of its single-handle kitchen and bathroom faucets, but not all. If your faucet uses a 1200 or 1222 cartridge, the 1225 won't fit.
The cartridge is the same physical size, but the spline pattern is different. You can find the model number on a sticker under the sink or stamped on the faucet base.
If you're not sure, pull the old cartridge first and compare it side by side at the store. The spline count on a 1225 is 24, and the stem length is about 1.5 inches from the O-ring base to the tip. That visual match is the only way to be certain.
Branch 1: Water Won't Shut Off or Faucet Drips
This is the most common reason people search for Moen 1225 cartridge replacement troubleshooting. The faucet keeps dripping even after you turn the handle all the way to the off position. Sometimes it's a slow drip.
Sometimes it's a steady stream. Either way, it's wasting water and driving you crazy.
Here's the decision tree for this branch.
If water runs constantly with the handle in the off position, start by confirming the shut-off valves under the sink are fully open. Yes, it sounds obvious, but partial shut-off valves create backpressure that can force water past the cartridge. Turn both valves counterclockwise until they stop.
If the drip stops, you just saved yourself a cartridge swap.

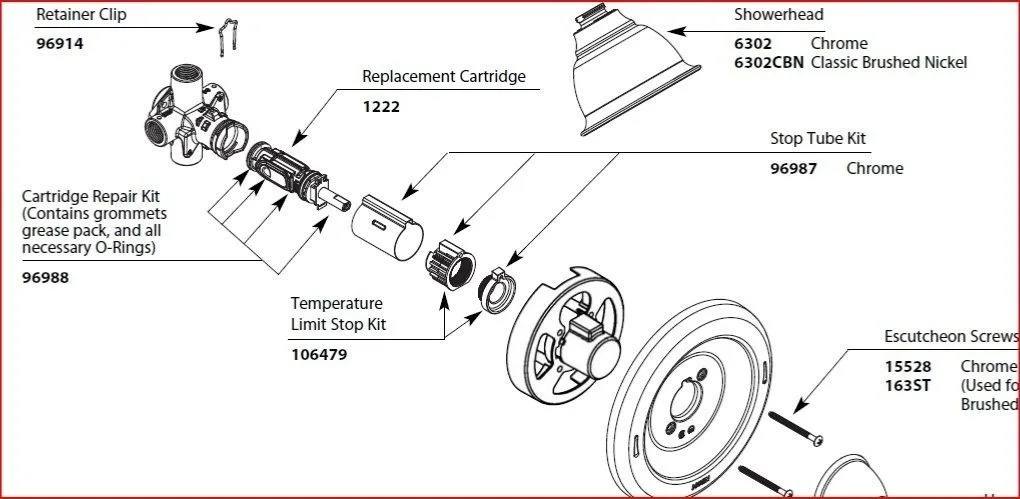

If the drip continues, the cartridge O-rings are almost certainly your culprit. The two rubber O-rings on the cartridge body create a watertight seal inside the valve housing. Over time, mineral deposits and normal wear cause them to flatten or crack.
Water seeps past, and you get a drip.
The fix is a full cartridge replacement. You can try just replacing the O-rings, but Moen doesn't sell them separately for the 1225. The cartridge is a sealed unit, so swapping the whole thing is the only real option.
Here's the step-by-step for this branch:
- Shut off the water supply. Turn both the hot and cold shut-off valves under the sink clockwise until they stop. If you don't have individual shut-off valves, turn off the main water supply for the house. Open the faucet to relieve pressure and drain remaining water.
- Remove the handle. Pry off the decorative cap on top of the handle (it usually pops off with a flathead screwdriver). Underneath, you'll find a set screw. Use the appropriate Allen wrench to loosen it. Pull the handle straight up and off the cartridge stem.
- Remove the escutcheon plate and retaining nut. The escutcheon is the decorative plate against the sink or counter. It usually unscrews by hand or with a gentle twist. Underneath is a large retaining nut that holds the cartridge in place. Loosen it with an adjustable wrench.
- Pull the retaining clip. This is a U-shaped metal or plastic clip that locks the cartridge in the valve body. Use needle-nose pliers to grip it and pull straight up. It's spring-loaded, so it might pop out. Don't lose it, you'll need it for the new cartridge.
- Pull the old cartridge. This is where things get tricky. If the cartridge comes out easily, great. If not, see Branch 2 below. For now, grip the stem with pliers and pull straight up with steady pressure. A slight wiggle motion helps.
- Install the new cartridge. Apply a thin layer of plumber's grease to the two O-rings on the new cartridge. Don't skip this step, the grease prevents the O-rings from rolling or tearing during insertion. Align the keyed notch on the cartridge with the groove inside the valve body. Push it straight in until it seats fully. You'll feel it click into place.
- Reinstall the retaining clip. Push it down until it snaps into the groove. It should sit flush with the top of the cartridge.
- Reassemble everything. Thread the retaining nut back on, replace the escutcheon, slide the handle on, and tighten the set screw. Turn the water back on slowly and test for leaks.
If the faucet still drips after replacing the cartridge, you likely have a different problem. Check the shut-off valves again for full open position. If they're fine, the issue might be in the valve body itself.
A small piece of debris or mineral scale can prevent the new cartridge from seating properly. Turn the water off, pull the cartridge, and inspect the inside of the valve body with a flashlight. Use a small brush or compressed air to clear any debris.
Reinstall and test again.
Branch 2: Cartridge Is Stuck or Won't Budge
This is the branch nobody wants to be on. The old cartridge is fused to the valve housing by years of mineral deposits, corrosion, or simple age. You pull, you wiggle, you curse, and it doesn't move.
This is where a lot of DIYers give up and call a plumber. But you don't have to.
Image source: Bing (Web (fair-use with source credit))
If the cartridge stem pulls out but the base stays in the valve body, you've snapped the cartridge. The plastic stem separates from the brass body, leaving the core stuck inside. This is actually more common than a fully intact stuck cartridge.
The fix is the same either way: you need to extract the remaining piece.
Here's your tool hierarchy for stuck cartridges, from least aggressive to most:
- Penetrating oil. Spray a small amount of penetrating oil (WD-40 Specialist or similar) around the cartridge where it meets the valve body. Let it sit for 15 to 20 minutes. This breaks down mineral deposits and lubricates the rubber seals. Try pulling again.

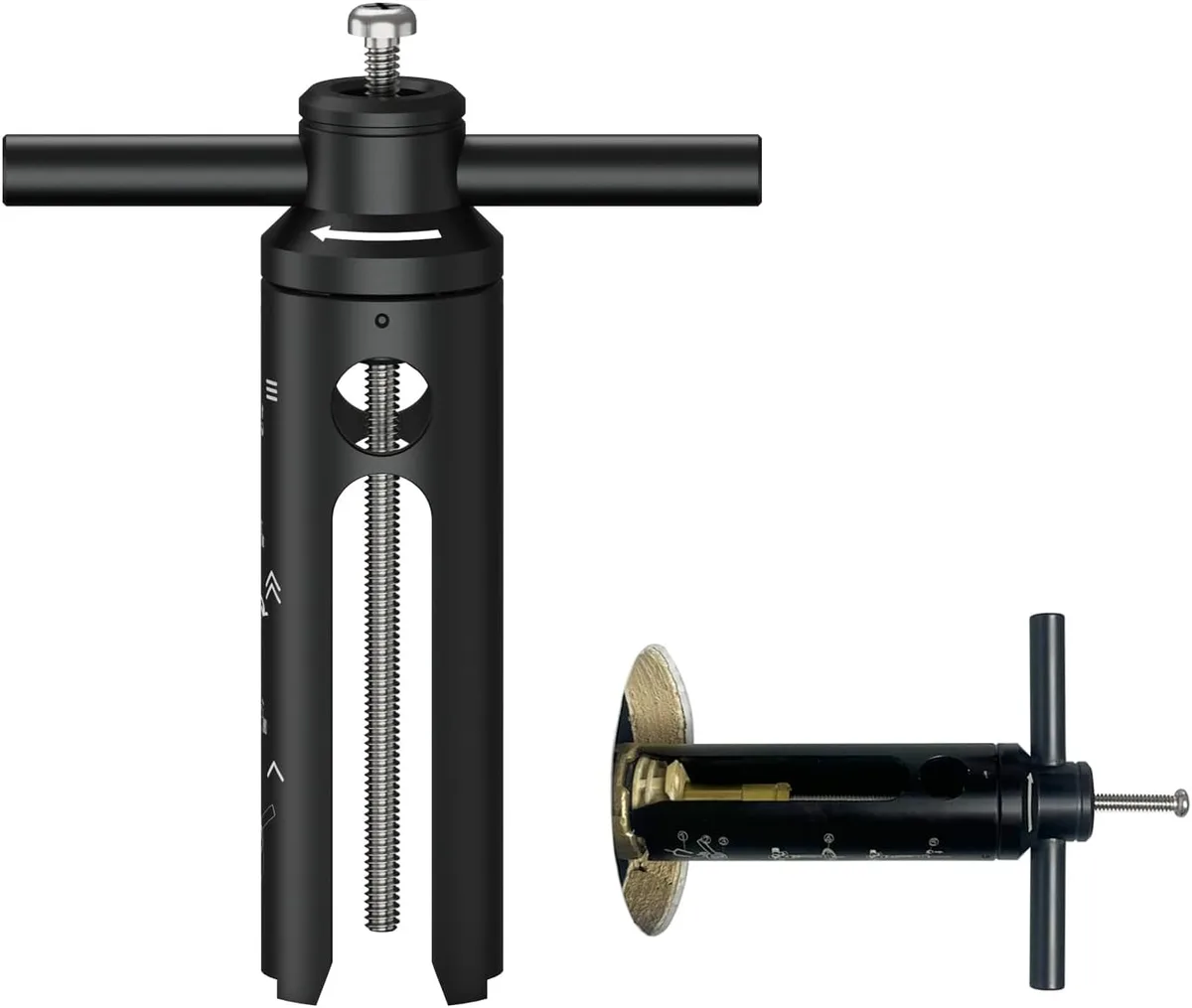

- Cartridge puller tool. This is a small threaded tool that screws into the cartridge stem. You tighten a nut against the body, and it pulls the cartridge straight out with even pressure. It costs about $10 and is worth every penny. Moen makes a specific one, but universal models work too.
- Heat. If penetrating oil and the puller don't work, apply gentle heat to the valve body with a hairdryer or heat gun on low setting. The expansion can break the seal between cartridge and housing. Never use a torch, you'll damage the valve body or start a fire.
If nothing works, the cartridge might be fused at a chemical level. Some older Moen cartridges used a different plastic compound that bonds with the brass over time. In that case, you have two options.
Option one is to carefully chip away at the plastic cartridge body with a small screwdriver and needle-nose pliers, removing it piece by piece. Option two is to replace the entire faucet. If the valve body itself is damaged, a new cartridge won't seal anyway.
Here's the one trick that works more often than you'd think: after removing the handle and retaining clip, grab the cartridge stem with channel locks. Rock the stem gently back and forth in a circular motion while pulling upward. The rocking motion breaks the seal without twisting the stem off.
If you feel it start to move, keep going. Once it's loose, it comes out easily.
If the cartridge comes out in pieces, inspect the inside of the valve body for any remaining plastic fragments. They'll prevent the new cartridge from seating and cause leaks. Use a small flashlight and a pick or screwdriver to remove every piece.
Blow compressed air through the valve body to clear any debris.
Branch 3: Handle Feels Loose or Temperature Control Is Off
This branch covers two separate symptoms that often get confused. A loose handle and bad temperature control can both point to cartridge problems, but the fixes are different.
If the handle wobbles or spins without turning the water off, the splines on the cartridge stem are stripped. You can confirm this by pulling the handle off and looking at the stem. If the plastic splines look worn down or rounded, the cartridge needs replacing.
There's no way to repair stripped splines.
But before you replace the cartridge, check one thing first. Sometimes the handle itself has a worn-out insert where it grips the stem. Moen handles have a metal or plastic insert that can strip independently of the cartridge.
If the stem looks fine but the handle is loose, you only need a new handle, not a cartridge. Pull the handle off and look at the socket where the stem fits. If it's smooth or cracked, replace the handle.
If the water temperature is wrong (only hot, only cold, or inconsistent), the internal mixing mechanism in the cartridge is likely failing. The Moen 1225 uses a pressure-balancing spool inside the cartridge that adjusts hot and cold flow based on demand. When that spool gets stuck or worn, you get temperature swings.
Start by checking the temperature limit stop adjustment before replacing anything. The temperature limit stop is a small plastic ring on the cartridge that limits how far the handle can turn toward hot. If it's set wrong, you'll never get full hot water.
To adjust it:
- Remove the handle and escutcheon to expose the cartridge.
- Look for a plastic ring with a tab or notch on the cartridge body.
- Rotate the ring slightly toward the hot side with a screwdriver or your fingers.
- Reinstall the handle and test the temperature.
If adjusting the limit stop doesn't fix it, the cartridge is likely the problem. Replace it using the steps from Branch 1. But also check your water heater temperature setting.
If the water coming out is lukewarm even with the handle all the way to hot, your water heater might be set too low. The cartridge can only mix the water it receives, it can't make cold water hotter.
If temperature fluctuates while you're using the faucet (hot then cold then hot again), the pressure-balancing spool inside the cartridge is sticking. This happens when sediment or mineral debris gets into the valve body. Flushing the system before replacing the cartridge sometimes fixes it.
Turn off the water, remove the cartridge, and run the water for 10 seconds to flush debris out of the supply lines. Then install the new cartridge.
Common Mistakes That Wreck a Good Cartridge Swap
You've got the new cartridge in hand. You're ready to fix this thing once and for all. But there are a handful of mistakes that turn a simple swap into a headache.
Avoiding these is half the battle.
Image source: Bing (Web (fair-use with source credit))

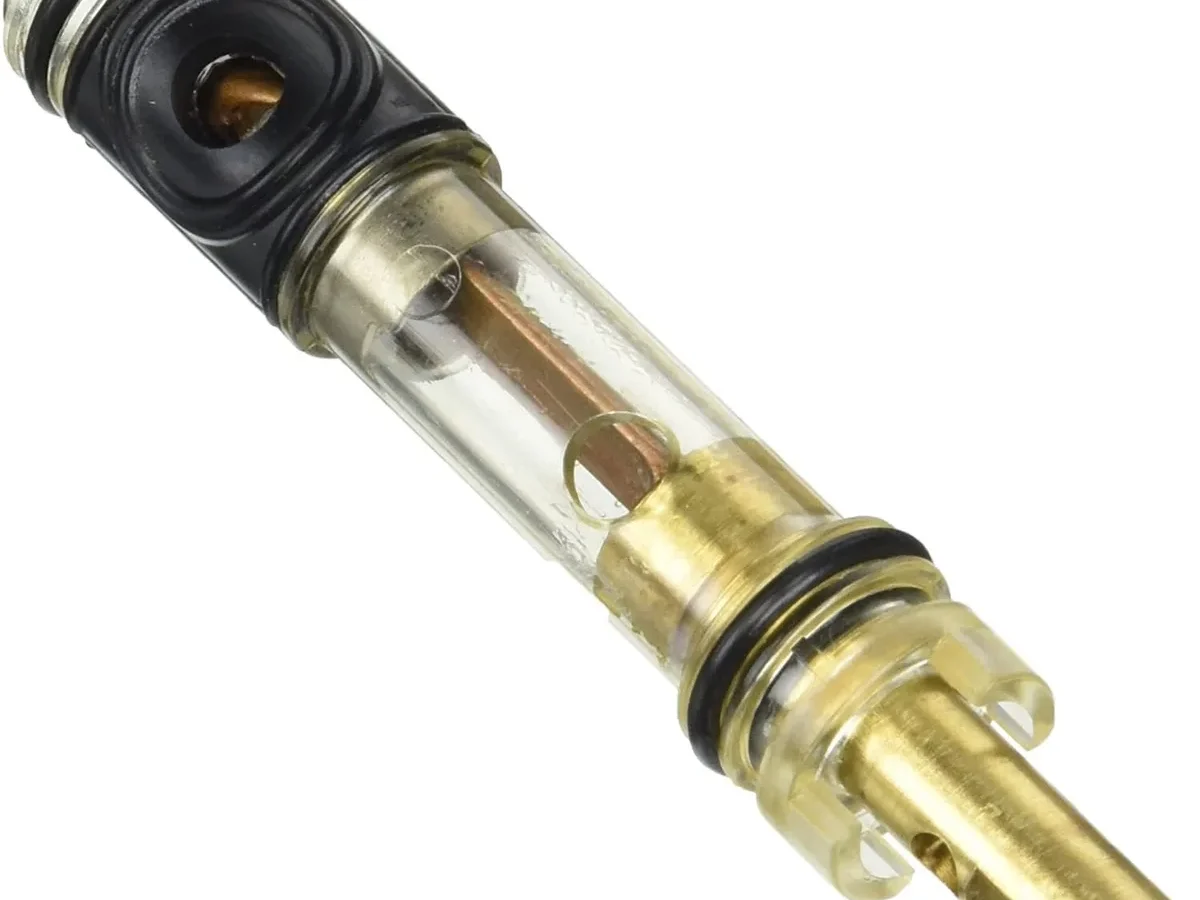

Using the wrong lubricant. Plumber's grease is silicone-based and specifically designed for plumbing O-rings. Petroleum jelly, Vaseline, or any oil-based lubricant will cause the rubber to swell and deteriorate over time. Within six months, your O-rings will fail and you'll be doing this all over again.
Use silicone plumber's grease only.
Installing the cartridge upside down. The Moen 1225 has a keyed notch that only fits one way. If you force it in backward, it won't seat properly and will leak immediately. Look for the alignment mark on the cartridge body and the corresponding groove in the valve body.
They should line up without force.
Forgetting the retaining clip. The clip is what holds the cartridge in place. Without it, water pressure can push the cartridge up and out of the valve body. It's a small part that's easy to misplace.
If you lose it, Moen sells replacements for a couple of dollars. Don't reuse a bent or deformed clip, it won't hold.
Overtightening the retaining nut. The nut that holds the cartridge in place only needs to be snug, not gorilla-tight. Overtightening can crack the plastic cartridge body or strip the threads on the brass nut. Hand-tight plus a quarter turn with a wrench is plenty.
Skipping the O-ring lubrication. Dry O-ring installation causes the rubber to roll, twist, or tear as you push the cartridge into the valve body. A visible tear is obvious, but a rolled O-ring can leak slowly and invisibly behind the escutcheon. By the time you notice, water damage has already started.
Not flushing the system. After installing the new cartridge but before fully reassembling, turn the water on briefly to flush out any debris. Old mineral scale or rubber fragments from the old cartridge can lodge in the new one and cause the same problems you just fixed. Let the water run for 5 to 10 seconds before you put the handle back on.
Assuming the cartridge is the only problem. Sometimes the faucet body itself is damaged. If you've replaced the cartridge correctly and still have leaks or temperature issues, inspect the valve housing for cracks, corrosion, or deformation. A damaged valve body means you need a new faucet, not another cartridge.
That's a bigger project, but it's better than chasing a problem that can't be fixed.
Frequently Asked Questions
How do I know if I need a Moen 1225 cartridge or a different model?
Check the faucet model number on a sticker under the sink or stamped on the base. The 1225 has a 24-spline stem and is about 1.5 inches long from the O-ring base to the tip. If you're unsure, pull the old cartridge and compare it in-store.
Can I just replace the O-rings instead of the whole cartridge?
Moen doesn't sell O-rings separately for the 1225. The cartridge is a sealed unit. You have to replace the entire cartridge.
O-ring replacement kits you find online are generic and rarely fit correctly.
Why is my faucet still dripping after I replaced the cartridge?
Check the shut-off valves are fully open. Partial valves create backpressure. Also inspect the valve body for debris or mineral scale that prevents the new cartridge from seating.
Flush the system and reinstall.
What do I do if the cartridge is stuck and won't come out?
Use penetrating oil first, then a cartridge puller tool. If that doesn't work, apply gentle heat with a hairdryer. Rock the stem with channel locks while pulling upward.
If it snaps, remove the pieces with a screwdriver and pliers.
How much does a Moen 1225 cartridge replacement cost?
The cartridge itself costs between $10 and $20. A cartridge puller tool adds about $10. A tube of plumber's grease runs $5.
Total cost is under $35. Compare that to a plumber's service call, which typically runs $150 to $300.
Should I call a plumber or do it myself?
If you're comfortable with basic tools and following step-by-step instructions, this is a solid DIY job. Call a plumber if the cartridge is severely corroded, if you've snapped it and can't extract the pieces, or if you suspect the valve body itself is damaged.
