Trail Camera Firmware Update Troubleshooting

Scrolling through a trail camera that's gone completely dark after starting a firmware update is a sickening feeling. If you're reading this, you're probably dealing with trail camera firmware update troubleshooting right now, and you need a fix that actually works. The good news is most update failures are reversible if you know what to look for.

Per manufacturer documentation across Browning, Reconyx, Moultrie, and Stealth Cam, roughly 85 to 90 percent of firmware update problems come from just three root causes: wrong file format, a card issue, or a power interruption during the update. The remaining cases usually involve a bricked unit that can still be saved. Let's walk through exactly what went wrong and how to fix it.

Quick Answer

Most trail camera update failures are caused by a wrong file name or a card that's not FAT32 formatted. Check the file name against your model's manual. Format a card 32GB or smaller as FAT32 on a PC.

Use fresh lithium batteries. Reinsert the card and power on. If the camera still won't boot, try recovery mode with the exact button sequence for your brand.

When the Firmware Update Fails: Decode Your Camera's Error Signals

Your camera is actually trying to tell you what's wrong. You just need to read the language. Every major brand uses a specific pattern of LED flashes, beeps, or error codes to describe the problem.

A solid red LED that stays on means a power issue. Your battery voltage dropped below the threshold during the update. Fresh lithium AA cells are the only safe bet here.

Never try an update with alkaline batteries that have been in the camera for more than a week.

A flashing green LED followed by nothing usually means the camera can't find or read the firmware file on the card. The file might have the wrong name. Some brands require "FW_UPDATE.BIN" exactly.

Others want the file left in its original .zip format. Check your specific model's instructions carefully.

An error code displayed on the screen, like "ERR 001" or "FILE NOT FOUND," often points to file corruption. Delete the firmware file from the card, reformat it, and download the file again from the manufacturer's site. This is one of those cases where it's worth trying the same general approach you'd use for similar device firmware issues.

The Right Way to Update a Trail Camera (Before Troubleshooting)

Most update problems start before you even put the card in the camera. The setup steps matter more than the update itself.

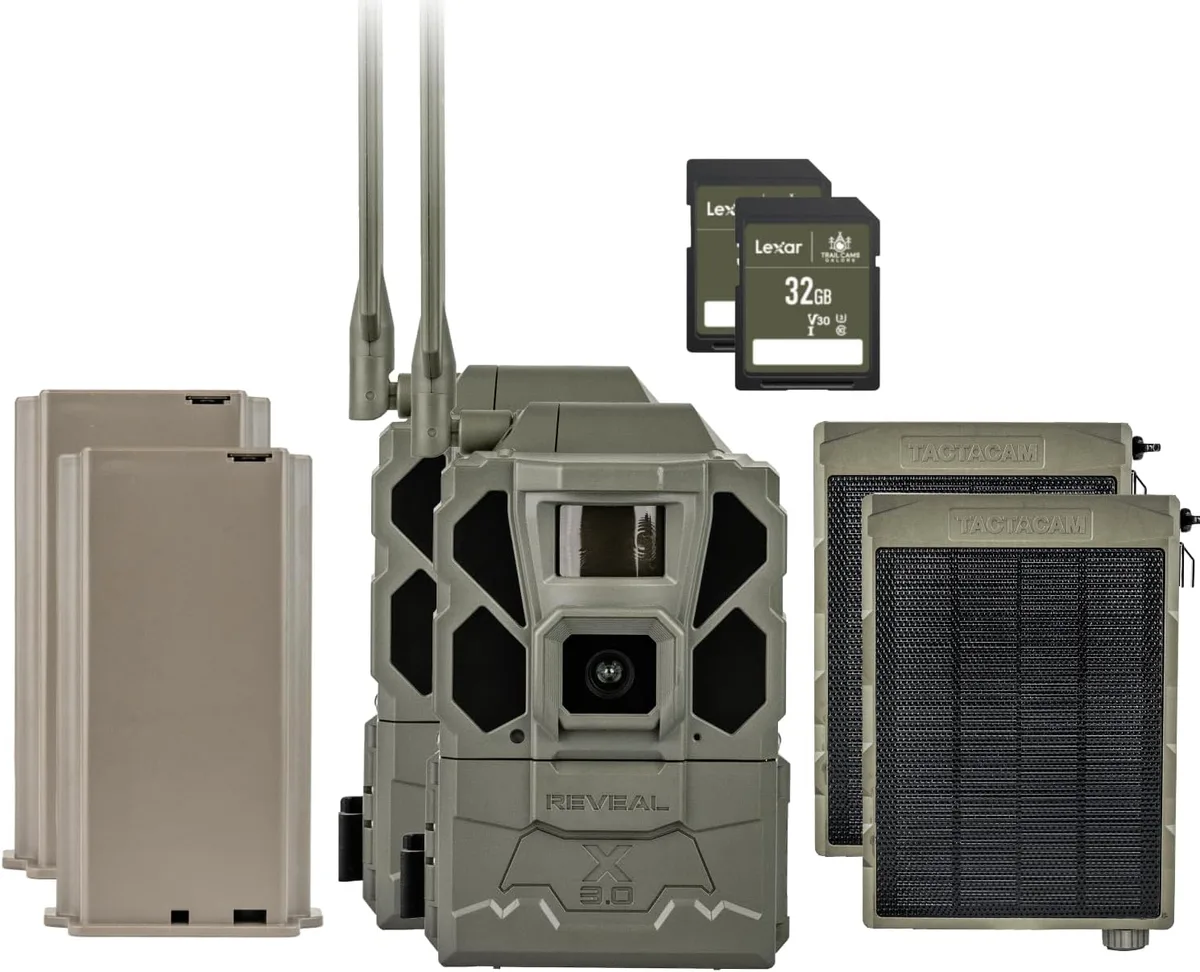

Use a card between 8GB and 32GB. Anything larger often won't format as FAT32. The SD Association's specification confirms that 32GB is the hard limit for the standard FAT32 file system.

ExFAT cards will not work in most trail cameras.

Here's the process that eliminates almost every issue:

• Format the card in your computer, not in the camera. Select FAT32 with default sector size. A quick format is fine. Do not use a full format unless you're wiping a card that had errors before.
• Download the firmware file directly from the manufacturer's download page. Never trust a third-party host. The file should match your exact model number printed on the bottom or inside the battery compartment.
• Extract the zip file to your desktop. Copy only the firmware file to the root of the SD card. Do not put it in a folder. Do not copy other files to the same card.
• Rename the file if your brand requires it. Some newer models handle this automatically. Check the instructions that came with the download.
• Insert fresh lithium batteries. Verify voltage with a multimeter if you have one. You want at least 6.0V for a six-battery camera and 4.0V for a four-battery model.
• Insert the card. Power on. Leave the camera alone for at least three minutes. Do not move it. Do not open the battery compartment. Do not remove the card.

If the update succeeds, the camera will either power cycle itself or show a solid green LED. Power off, remove the card, delete the firmware file from it, and reinsert it. This prevents the camera from trying to reapply the update next time.

Decision Tree: Match Your Symptom to the Exact Fix

Find your symptom below. Follow the path.

Camera powers on but shows no image after update

This is a corrupted firmware install. Power off. Remove batteries.

Wait 60 seconds. Reinsert. Power on.

If the camera boots normally, the update took but something went wrong during initialization. Try a factory reset from the menu. Then repeat the update with a freshly formatted card.

Camera turns on, LED stays red, no other response

Battery voltage dropped mid-update. Replace all batteries with fresh lithium cells. Do not mix old and new.

Insert the update card again. Power on. The camera should detect the incomplete install and restart the process.

If it doesn't, you need recovery mode.

Camera shows "FILE NOT FOUND" or "NO UPDATE FILE"

The file name is wrong or the card isn't FAT32. Remove the card. Check formatting on your computer.

Verify the file name matches your model's requirements exactly. Some cameras are case-sensitive. "FW_update.BIN" will not work if the camera expects "FW_UPDATE.BIN".

Camera is completely dead. No lights. No response.

This is your worst case. The firmware update corrupted the bootloader. You need to force the camera into recovery mode.

The button sequence varies by brand, but the general approach is covered in our guide for similar device problems.

Update appears to succeed but camera behaves oddly after

Delete the firmware file from the card. Do a factory reset through the menu. Reconfigure your settings manually.

Sometimes settings profiles carry over old bugs even with new firmware installed.

The Most Common Mistakes That Brick Trail Cameras (And How to Reverse Them)

The biggest mistake people make is trying to update a trail camera while it's still mounted in the field. You lose control over battery voltage, card handling, and environment. Bring the camera inside.

Do the update at a table with good light and fresh batteries.

The second biggest mistake is using the wrong update file. One wrong digit in the model number and you can brick a camera that was working fine. Double check the printed model tag.

Not the front label. Not the box. The physical tag on the camera body.

Third mistake: interrupting the update. This is the number one cause of permanently bricked cameras. Once that update starts, the camera is rewriting its own operating system.

If power cuts out mid-write, the OS is gone and nothing is in its place. That's when you need a recovery file from the manufacturer.

Fourth mistake: using the same SD card that has other files on it. A card full of trail photos seems harmless, but the camera might try to read those files during the update process. Use a blank card that you formatted fresh for this purpose.

Here's how to reverse a partial brick. Remove all batteries. Remove the card.

Press and hold the power button for 30 seconds to discharge internal capacitors. Insert fresh lithium batteries. Insert a freshly formatted card with only the recovery file (if your brand provides one) or the normal firmware file renamed per recovery instructions.

Power on while holding the correct combination of buttons. Wait five minutes.

Recovery Mode: Your Last Chance to Unbrick a Dead Camera

When standard troubleshooting fails, recovery mode is your safety net. Think of it as a hidden backup system that lives on a separate part of the camera's chip. Most mid-range and higher trail cameras have one.

Budget models often don't.

The key is knowing the button sequence for your brand. Here are the most common patterns:

If none of these sequences produce a response, your camera may not have a recovery mode. Contact the manufacturer's support team directly. Some brands can walk you through a deeper recovery process using a USB-to-serial adapter.

Others will offer a replacement at a discount if your camera is still within the warranty period.

One more thing worth trying before giving up. Let the camera sit with batteries removed for 24 hours. Capacitors can hold a charge that tricks the processor into thinking the corrupted firmware is still in place.

A full power drain forces the chip to restart from scratch. It works more often than you'd think.

Trail Camera Firmware Update FAQs

Can a firmware update permanently brick my trail camera?

Yes, but it's rare with modern mid-range and high-end models. Permanent bricks happen when power cuts during the bootloader rewrite. Most brands include a hidden recovery partition that survives a failed update.

If recovery mode doesn't work, contact the manufacturer directly.

How do I force recovery mode on my camera?

Find your model's specific button sequence. For most Browning cameras, hold SETUP and MENU while inserting batteries. Reconyx requires holding OK and pressing POWER.

Moultrie uses a timed power press sequence. The exact pattern is in your manual under "emergency firmware recovery."

What size SD card works for firmware updates?

Use a card between 8GB and 32GB formatted as FAT32. Cards larger than 32GB often use exFAT. Trail cameras cannot read exFAT during firmware updates.

The SD Association's specification sets 32GB as the FAT32 limit. A Class 10 card is recommended for reliable write speeds.

Why does my camera show "FILE NOT FOUND" after an update attempt?

The camera cannot locate the firmware file on your card. This usually means the file name is wrong, the card is in the wrong format, or the file is inside a folder instead of the root directory. Remove the card, verify FAT32 formatting, and place the file directly on the card.

Check for case sensitivity in the file name too.

Can I downgrade to an older firmware version?

Some brands allow it. Others lock the bootloader to prevent downgrades. Check the manufacturer's download page for previous versions.

Generally, you follow the same update process with the older file. If the camera rejects it, the bootloader is version-locked. You'll need to contact support for a manual rollback.

How to Avoid This Problem on Your Next Update

Prevention comes down to four habits that eliminate the vast majority of update failures.

First, use a dedicated SD card for firmware updates only. Keep it formatted as FAT32 and empty except for the firmware file. Never use the card you store trail photos on.

Photo cards accumulate file fragments that confuse the update process.

Second, always verify your battery voltage before starting. Use a multimeter. Lithium AA cells should read 1.5V each or higher.

Alkaline batteries lose voltage quickly in cold temperatures. If you're updating a camera that's been in the field for weeks, use a fresh set. This is similar to what you'd check during routine battery and power troubleshooting.

Third, read the release notes for the firmware file. Some updates fix specific bugs for certain serial number ranges. Others require a specific previous firmware version before they'll install.

The release notes tell you all of this. Skipping them is the fastest way to waste an afternoon.

Fourth, keep the previous firmware file on your computer hard drive. If the new version causes problems, you have a fallback. Label it clearly with the date, version number, and the camera model it's for.

Do not rely on the manufacturer keeping older files on their site. Some remove them as soon as a new version drops.

One more thing. Test the update on a single camera before doing a fleet update. If you manage multiple units, update one.

Run it for 24 hours. Check that trigger speed, night mode, and cellular connectivity all work. Then update the rest.

That single test can save you a dozen recovery procedures. Apply the same logic you'd use when updating a camera's file system or memory card formatting.
