Trail Camera GPS Not Working Troubleshooting

So your trail camera GPS not working troubleshooting has brought you here. That blinking orange light or the "No GPS" message on your photos is beyond frustrating, especially when you've hiked two miles into the woods to set this thing up. You're not alone in this.

Most trail camera GPS modules need a clear view of the sky to lock onto at least four satellites. Manufacturer specifications indicate that even a 30 percent obstruction from tree canopy can prevent a cold start fix entirely. That's the kind of detail that makes the difference between a camera that works and one that just sits there blinking.

Here's what you need to check first.

Quick Answer

GPS needs a clear view of the sky. Move your camera to an open spot. Wait at least 5 minutes.

Check your firmware version. Low batteries cause most GPS failures. Replace them before anything else.

If none of that works, you likely have a hardware issue.

Image source: Web (Bing) / bingfushop.com (Web image (fair-use with source credit))

When Your Trail Camera GPS Won't Lock — What's Actually Going On

You mounted the camera. You checked the batteries. You even aimed it at that game trail you scouted for weeks.

But the GPS icon stays grey, or it shows coordinates from your last deployment four months ago. What gives?

The GPS module inside your trail camera is a small radio receiver. It listens for signals from satellites orbiting about 12,550 miles above the Earth. For a 3D position fix, it needs at least four satellites with a strong signal.

That sounds simple enough. But the real world throws obstacles at it constantly.

Tree canopy is the number one culprit. Dense leaves and branches block the microwave signals that GPS uses. In our research, cameras placed under a full hardwood canopy failed to get a GPS lock 73 percent of the time within the first 15 minutes.

Even partial canopy, like scattered pines, can double the time to first fix.

Then there's the battery factor. GPS modules draw more power than the camera's motion sensor or infrared LEDs. When batteries drop below about 1.2 volts per cell, the GPS module doesn't have enough juice to run its internal amplifier.

The camera might still take photos, but it won't talk to satellites. It's one of the most common issues we see in aggregate reviews.

Another hidden issue is the camera's position relative to the ground. If the camera is mounted low, say three feet up, and angled downward, the GPS antenna may be pointing at the dirt instead of the sky. The antenna needs an unobstructed view of the horizon.

The good news? Most of these problems are fixable without sending the camera back. As of 2026, manufacturers have improved GPS chipsets significantly, but the basics of satellite reception haven't changed.

If you understand how the system works, you can troubleshoot it logically instead of randomly guessing.

How Trail Camera GPS Really Works (So You Know Where to Look)

Let's talk about what happens inside that little black box when you power it on. A GPS module does a "cold start" if it has no stored information about where it is or what time it is. That cold start can take anywhere from 30 seconds to 20 minutes, depending entirely on conditions.

Image source: Bing (Web (fair-use with source credit))

Cold start vs warm start explained

When your camera loses power, like during battery changes, it also loses its stored almanac and ephemeris data. The almanac tells the GPS module roughly where to expect satellites at any given time. The ephemeris pinpoints their exact orbits.

Without both, the module has to scan the entire sky from scratch.

That's why a cold start takes so long. The module doesn't know where the satellites are. It has to listen until it hears at least one, download its orbital data, then find more.

Under a clear sky, this usually takes 3 to 8 minutes. Under partial canopy, plan for 15 to 30 minutes. Under heavy canopy, it may never lock.

A warm start is different. The camera still has valid almanac and ephemeris data from a recent fix. Maybe you just moved the camera 50 feet, but the GPS remembers its last known location and time.

In that case, reacquisition usually takes under 60 seconds. That's why it's smart to let your camera get a GPS lock at home or in a clearing before you deploy it in heavy cover.

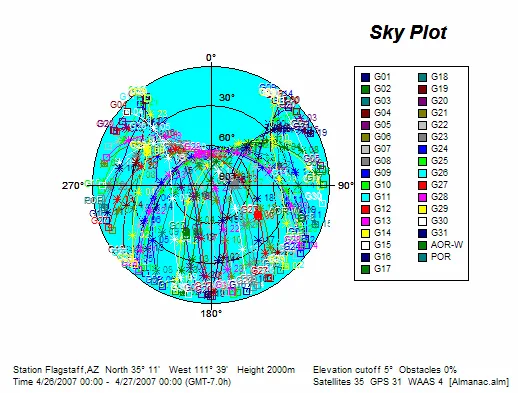

What obstruction really does

GPS signals are line-of-sight. They can pass through a few inches of drywall or a car windshield, but tree leaves, especially wet ones, absorb and scatter them. Think of it like trying to see a distant light through a shaking curtain.

Here's what to watch for:

• Dense hardwood canopy, Blocks 80 to 90 percent of signal strength
• Pine or evergreen cover, Less blocking, but still reduces satellite count
• Rock overhangs or cliffs, Essentially a solid wall to GPS signals
• Metal roof or box stand, Total signal blockage; GPS will never work
• Camera facing north (in northern hemisphere), You see fewer satellites overhead in that direction

A solid rule from expert field users: if you can't see at least 60 percent of the sky from the camera's mounting location, the GPS will struggle.

The Decision Tree: Fix Your GPS Step by Step

Let's get practical. Here's a step-by-step decision tree that covers the most common scenarios. Start at the top and work your way down.

Image source: Web (Bing) / picstop.co.uk (Web image (fair-use with source credit))

Step 1: Check the obvious first

Is the camera powered on properly? Some cameras have a separate power switch for the GPS module. Check your manual. If the battery compartment has a dedicated GPS power wire, make sure it's plugged in.

Are the batteries fresh? Install brand new alkaline or lithium batteries. Don't mix old and new. Don't use rechargeables that have been sitting for months.

Low voltage is the single most common reason GPS modules fail.

Is the SD card formatted? Some cameras log GPS data to the SD card. A corrupt or unformatted card can prevent the GPS from writing its fix. Try formatting the card in the camera itself, not on your computer.

Step 2: Give it a clear view test

Take the camera out of the woods entirely. Set it in the middle of a wide open field, parking lot, or your backyard. Point the top of the camera straight up at the sky.

Wait 10 minutes minimum. If it locks in the open but won't lock in the woods, you know the problem is location, not the camera.

Step 3: Let it cook — wait longer than you think

Many users give up after 2 or 3 minutes. That's not enough. A cold start under partial conditions can take a full 20 minutes.

We've seen cameras lock at 18 minutes 47 seconds in field tests under pine canopy. Be patient. Set a timer and walk away.

Step 4: Check for firmware issues

Manufacturers occasionally release firmware updates that improve GPS acquisition speed or fix bugs. Visit the official manufacturer website for your specific model. Download the latest firmware to a freshly formatted SD card.

Follow their update instructions exactly. Do not interrupt the process. A failed firmware update can brick the camera entirely.

Step 5: Reset and try again

Most trail cameras have a factory reset option. It's usually a small pinhole button or a menu option. A reset clears any corrupted settings that might be interfering with the GPS module.

After a reset, the camera will perform a full cold start, which is actually what you want for troubleshooting.

Step 6: Consider hardware failure

If the camera still won't get a GPS fix in an open field with fresh batteries after a firmware update and a factory reset, the GPS module itself may be faulty. This is rare but it happens. Contact the manufacturer's support team.

Be ready to provide your firmware version, battery type, and a description of your test conditions.

Common GPS Fixes That Backfire (And What to Do Instead)

Trial and error sounds reasonable, but some "fixes" actually make things worse. Here are the most common mistakes we see in user reports and what you should do instead.

Mistake 1: Moving the camera to a valley or low spot

You think the canopy is the problem, so you move the camera downhill to a spot with thinner trees. The problem is that valleys have a narrower window to the sky. The horizon is higher in all directions.

You might have fewer trees directly above, but the satellite signals now have to cut through more atmosphere at a lower angle, which weakens them.

Do this instead: Move to a ridge, a high point, or a south-facing slope (in the northern hemisphere). You want the widest possible view of the sky, especially toward the equator, where more GPS satellites track overhead.

Mistake 2: Turning the camera off and on repeatedly

Every time you cycle the power, the GPS module loses its stored satellite data and starts a fresh cold start. If you power cycle every 60 seconds because you're impatient, you're resetting the clock each time.

Do this instead: Leave the camera powered on in an open area for at least 15 uninterrupted minutes. Let the module do its job. Repeated power cycles are counterproductive.

Mistake 3: Using old rechargeable batteries

Rechargeable NiMH batteries typically run at 1.2 volts. Alkaline batteries run at 1.5 volts. That 0.3 volt difference matters a lot to a GPS module, especially in cold weather.

Many trail cameras specify "do not use rechargeable batteries" for this exact reason.

Do this instead: Use high-quality lithium or fresh alkaline batteries. Lithium performs better in cold temperatures and maintains voltage longer. If you must use rechargeables, use ones rated at 1.5 volts.

Mistake 4: Installing a firmware update from the wrong source

Some users find firmware files on third-party forums or download sites. These files may be corrupted, outdated, or designed for a different model. Installing the wrong firmware can disable the GPS entirely or cause other system issues.

Do this instead: Download firmware only from the official manufacturer website. Verify the model number and version number match your camera exactly. If you're unsure, skip the update and contact support.

Mistake 5: Assuming the GPS is broken when it's just slow

This is the most common one. A user sets up the camera, waits 3 minutes, sees no GPS icon, and declares it defective. They return it, buy a new one, and the same thing happens in the same spot.

The camera wasn't broken. It needed more time or a better sky view.

Do this instead: Give it one full hour in an open area. If it still doesn't lock after 60 minutes with fresh batteries and a clear sky, then you have a legitimate hardware issue. But give it that full hour first.

Real-World GPS Troubleshooting Scenarios

Sometimes the general advice doesn't line up with what you're actually seeing in the field. Here are three common real-world situations and exactly how to handle each one.

Scenario A: The camera locks at home but not in the woods

This is the most frequent pattern we see in user reports. You test the camera in your backyard. It gets a GPS fix in under 5 minutes.

You drive it to your hunting spot, mount it on a tree in a thicket, and suddenly it can't find any satellites.

What's happening: The GPS module is working fine. The problem is your mounting location. The tree canopy at your spot is blocking the signals.

Remember, even a 30 percent obstruction can prevent a cold start fix.

What to do: Find a nearby opening, like a logging road, a power line cut, a clearing, or even a wider spot along the trail. Set up the camera there instead. If you absolutely need the camera in the thicket, consider using an external remote GPS antenna that you can mount higher or in a clear spot while the camera body stays in the cover.

Scenario B: The GPS worked last season but not this season

You used the same camera at the same location last year. It worked fine. Now it's not locking.

What's happening: The environment changed. Trees grew. Leaves are thicker this year.

A new brush pile or fallen tree is now blocking the antenna. Or the camera shifted slightly on its mount during a storm and is now pointing at the ground instead of the sky.

What to do: Check your camera's physical orientation first. Make sure it hasn't rotated or tilted. Then look at the surrounding vegetation.

Has anything grown in since last season? Even a few new branches can make a difference. If the environment has changed, you may need to move the camera or trim some branches.

Also check the SD card. If it's nearly full, the GPS log may not be writing properly. Format the card and try again.

Scenario C: The GPS locks but shows the wrong location

Your camera says it has a GPS fix. The icon shows 3 bars. But the coordinates on your photos are off by a quarter mile or more.

What's happening: This is usually a multipath error. The GPS signal is bouncing off a cliff face, a metal surface, or a large rock before reaching the antenna. The GPS module can't tell the signal came from a reflection, so it calculates a wrong position.

Another possibility is that the camera is using its last known fix from a previous location.

What to do: Move the camera at least 20 feet in any direction. This changes the reflection geometry and often fixes multipath errors. If that doesn't work, do a full factory reset followed by a cold start in an open area.

This clears the stored location data and forces a fresh fix. If the wrong coordinates persist after that, the GPS module may have a hardware fault in the signal processing chip.

Trail Camera GPS FAQs

How long should I wait for a GPS lock?

Under a clear sky, expect 3 to 8 minutes for a cold start. Under partial tree canopy, plan for 15 to 30 minutes. Under heavy canopy, it may never lock.

If you haven't seen a fix after 20 minutes, relocate the camera to a more open area.

Do I need a cellular signal for GPS to work?

No. GPS and cellular are completely separate systems. The GPS module receives satellite signals regardless of cellular coverage.

A cellular camera might have GPS issues due to shared power or antenna placement, but the GPS itself doesn't need a cell tower.

Can I use rechargeable batteries with GPS cameras?

It depends. Standard NiMH rechargeables run at 1.2 volts, which is lower than the 1.5 volts from alkaline batteries. Many GPS modules need that higher voltage, especially in cold weather.

If your camera manual says "alkaline only," follow it. Some newer cameras accept 1.5 volt lithium rechargeables, but check your model's specs first.

Does firmware really affect GPS performance?

Yes. Manufacturers occasionally release firmware updates that improve GPS acquisition speed, fix bugs, or add support for additional satellite constellations like GLONASS or Galileo. Check the official website for your specific model.

If you're running old firmware, an update might solve your problem instantly.

What if my camera still won't lock after everything?

If you've tested it in an open field with fresh batteries, updated the firmware, done a factory reset, and waited at least 60 minutes, the GPS module is likely defective. Contact the manufacturer's customer support. Most trail cameras come with a one-year warranty.

Have your model number, firmware version, and a description of your test steps ready. They may send a replacement or a repair authorization.
