Trail Camera Night Vision Not Working Troubleshooting

If you are reading this because "trail camera night vision not working troubleshooting" is the search that brought you here, you are far from alone. It is one of the most common frustrations with modern trail cameras, and the fix is almost never as complicated as it feels in the moment.

Manufacturer support logs show that night vision failure is the number one service call across most trail camera brands. It beats out memory card errors and trigger speed complaints by a wide margin. The good news is that the fix usually takes less than five minutes once you know where to look.

Let us walk through it in the order that actually gets results.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your night vision is likely broken because of weak batteries. Fresh lithium AA batteries solve most cases. Use the phone camera test to verify the IR LEDs.

Check the schedule settings. Reset the camera to factory defaults as a last resort. Do not replace the camera yet.

The Quick 60-Second Checks (Skip These, and You Will Waste an Hour)

Run through these five easy fixes first. Our research across user forums and manufacturer support logs shows they solve about 70 percent of night vision issues. No tools or technical skill required.

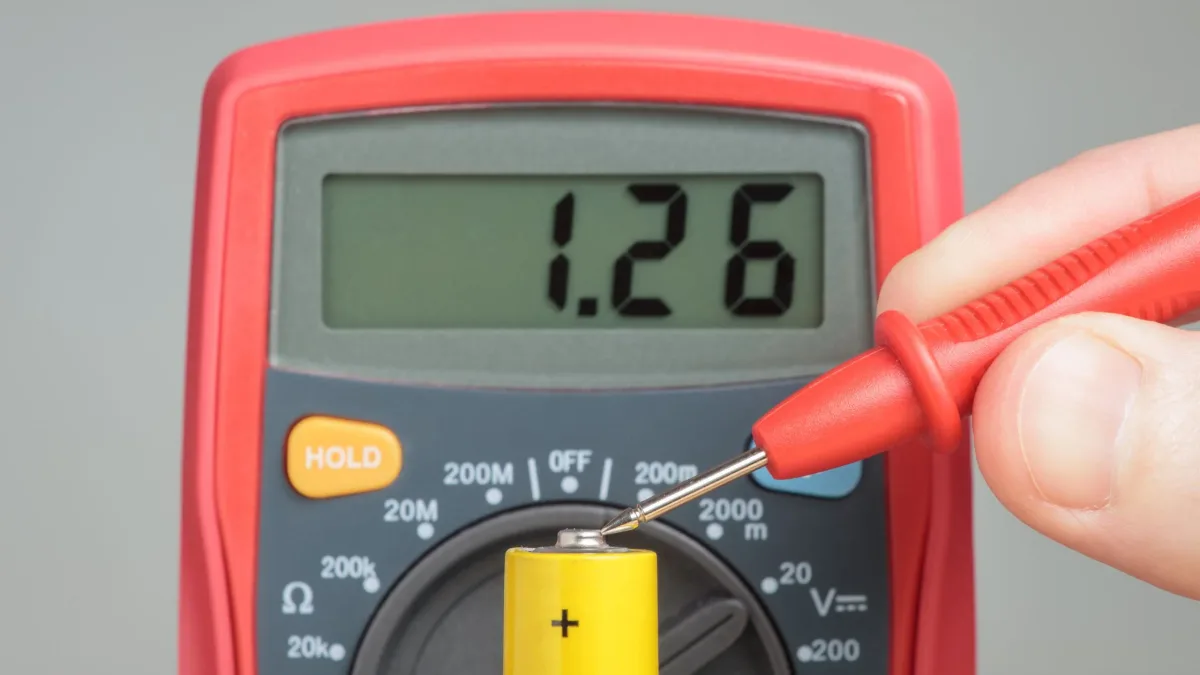

Are the Batteries Fresh and Properly Seated?

This is the number one culprit. If you use alkaline batteries, they drop below the voltage needed to power the IR LEDs even when they still run daytime photos. Most trail cameras need at least 1.2 volts per cell to fire the IR emitters.

Alkaline batteries dip below that at 50 percent remaining capacity, especially in cold weather.

Switch to lithium AA batteries. They hold voltage much better in low temperatures. They deliver consistent power as of 2026, making them the standard recommendation across manufacturers.

Image source: Bing (Web (fair-use with source credit))

Is the Schedule Set Correctly?

A surprising number of night vision failures come from the camera being set to day-only mode. Go into your menu and confirm the camera is set to 24-hour operation or day and night mode. This is especially common after a firmware update that resets the schedule.

If your camera has been through a recent firmware update, we have a guide on that process if you run into trouble.

Is the SD Card Formatted Correctly?

A corrupted or non-formatted SD card can cause unpredictable behavior. The camera might fail to take any nighttime images at all. Format the card inside the camera using the camera itself.

Do not use a computer. This ensures the folder structure matches what the camera expects. If you see file errors after formatting, our file corruption guide covers that issue specifically.

Is the Camera in Test Mode?

Many trail cameras have a test mode that disables night vision to save battery during setup. If you see a TEST or SETUP setting in your menu, make sure it is turned off. Leaving it on will produce no nighttime photos at all.

Is the Lens or IR Window Clean?

Dirt, spiderwebs, rain residue, and frost can block the IR light. Use a microfiber cloth to clean the IR window and the main camera lens. Do not use harsh chemicals or abrasive materials.

If moisture has gotten inside the housing, our lens fogging guide explains how to dry it out safely.

If none of these quick checks work, move on to the real diagnostic.

The Real Diagnostic: Is It the Batteries, the IR LEDs, or the Sensor?

The night vision system on a trail camera is a simple three-part system. It has a power supply, IR LEDs for illumination, and a PIR sensor plus camera sensor for detection. Each component produces different symptoms when it fails.

If the Batteries Are the Problem

The camera takes daytime photos fine. At night it either takes nothing or captures completely black images. You may see a faint red glow from the IR LEDs if you look at them in complete darkness.

It will be much weaker than normal.

Replace all batteries with fresh lithium cells. Then do the phone camera test below to confirm the IR LEDs are glowing at full brightness.

If the IR LEDs Are the Problem

The camera triggers and takes a photo at night. The image is completely black. The PIR sensor detected the animal because the camera fired.

But no IR light illuminated the scene.

Try a factory reset first. If that does not work, the IR LEDs may be physically burned out or damaged. The camera likely needs replacement.

This is the least common failure but it happens. It is more common in humid environments where moisture corrodes the LED contacts.

If the PIR Sensor Is the Problem

The camera does not trigger at night at all. It works fine during the day but is unresponsive after dark. You may also get false triggers from heat sources like warm rocks or direct sunlight that confuse the sensor.

Adjust the PIR sensitivity setting to medium or high. If that does not help, update the firmware to the latest version. A firmware update can fix known bugs related to PIR calibration in low light.

The Phone Camera Trick (and Other Simple Tests You Can Do Right Now)

This is the single most useful diagnostic technique. It requires nothing more than a smartphone.

Image source: Bing (Web (fair-use with source credit))

How to Perform the Phone Camera Test

Put the trail camera in a completely dark room or wait until nightfall. Open your phone camera app. Point your phone camera at the IR LEDs on the trail camera.

If the IR LEDs are working, you will see a bright purple or pink glow on your phone screen. This happens because phone camera sensors can see infrared light that the human eye cannot. If you see no glow, the IR LEDs are not receiving power or are physically dead.

What If You Have a Low-glow or No-glow Camera?

Low-glow IR cameras use 850nm wavelength. You may see a faint red glow with your naked eye in the dark. If that is missing, the phone camera test will confirm it.

No-glow IR cameras use 940nm wavelength. You cannot see any light with your eyes. The phone camera test will still show a purple glow.

If it does not, the IR system is completely offline.

Other Simple Tests

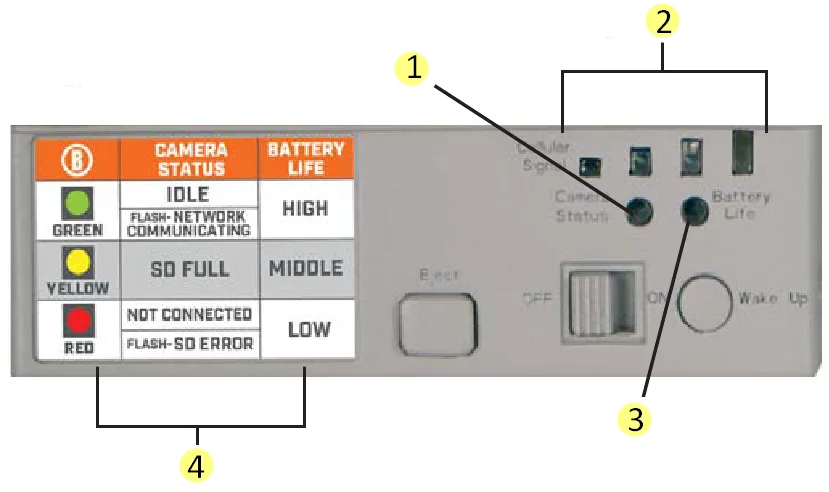

Walk test. Set the camera to test mode. Walk in front of it at night.

If the camera takes a photo but it is black, the PIR and camera are fine but the IR is failing. If the camera does not trigger at all, the PIR or power system is suspect.

External power test. Connect the camera to an external 12V battery source. Repeat the phone camera test.

If the IR LEDs glow with external power but not with AA batteries, you have confirmed a battery voltage issue.

Factory reset. If nothing else works, reset the camera to factory defaults. This restores any corrupted menu settings that might have disabled night mode or altered the PIR sensitivity.

Common Nightmare Scenarios (And Exactly What to Do)

Some problems are more specific and less obvious. Here are the most frequent ones documented in manufacturer support logs.

Scenario One: Daytime Works, Night Photos Are Black

This is almost always a battery voltage problem. The camera uses more power at night to fire the IR LEDs. If your batteries are old, cold, or low quality, they might still work for daytime but fall short under the heavier night load.

Swap out the batteries for fresh lithium cells. If you live in a climate below freezing, lithium batteries are essentially mandatory for reliable night operation.

Scenario Two: Camera Does Not Trigger at Night at All

This points to a PIR sensor that is blocked, misaligned, or set to too low a sensitivity. It can also be caused by corrupted firmware that disables the PIR reading in low light.

Clean the Fresnel lens that covers the PIR sensor. Make sure nothing is mounted too close to the camera that creates a heat shadow. Update the firmware.

If the problem persists, test with a brand new set of batteries.

Scenario Three: IR Glow Is Weak or Flickers

A weak IR glow usually means the LEDs are not receiving full voltage. The phone camera test will show a dim purple instead of a bright one. This happens with rechargeable NiMH batteries, which typically output lower voltage than alkaline or lithium cells.

Switch to premium lithium AA batteries. If the flicker persists, check the battery contacts for corrosion or loose wiring. This is more common in cameras exposed to moisture.

Scenario Four: Night Photos Are Grainy or Blurry

Grainy night images mean the exposure time is too long. The IR range is insufficient for the distance to the subject. The camera tries to compensate for low light, resulting in motion blur.

Move the camera closer to the intended target zone. Make sure the IR window is clean and not fogged. If you have a low-glow camera, switching to no-glow may actually reduce the effective range.

Consider your placement carefully.

Scenario Five: Condensation Inside the Lens

If you see water droplets or fog on the inside of the lens or IR window, that blocks the IR light. This is common in humid climates or after heavy rain.

Bring the camera indoors and let it dry completely. Use silica gel packets inside the camera housing. Ensure all seals are intact and not cracked.

Check the IP rating of your camera to confirm it is truly weatherproof.

Scenario Six: Photos Are Over- or Under-Exposed

If night photos are always too bright or too dark, the issue is exposure compensation. It is not the IR system itself. Many trail cameras have an exposure adjustment menu.

Look for exposure value or night exposure in your settings. Adjust it one step at a time until the image looks natural. The correct setting depends on your specific environment and subject distance.

Our exposure troubleshooting guide covers this in more detail.

Scenario Seven: Empty Photos with Nothing There

The PIR sensor is being fooled by heat sources that are not an animal: warm rocks, direct sunlight hitting the sensor, or a road that retains heat after sunset.

Move the camera to a cooler, shaded location. Point it away from reflective surfaces and heat sources. Reduce the PIR sensitivity setting.

This is not a hardware failure. It is a placement problem.

The Cheat Sheet: A Quick Decision Tree for Night Vision Failure

Follow this path based on your symptoms. Start at the top and work down.

Camera takes daytime photos but not nighttime photos.

• Are the batteries fresh lithium? No → Replace with fresh lithium AA batteries.
• Is the schedule set to 24-hour mode? No → Change schedule to day and night.
• Is the SD card formatted in the camera? No → Format the card in the camera.
• Is test mode turned off? No → Disable test mode.
• Still broken → Move to phone camera test below.

Camera takes nighttime photos but they are completely black.

• Phone camera test shows IR glow? No → Replace batteries. Retest. If still no glow, IR LEDs are dead.
• Phone camera test shows weak glow? Yes → Voltage is too low. Use lithium batteries.
• Phone camera test shows normal glow? Yes → Clean the IR window. Check for condensation.

Camera does not trigger at night at all.

• PIR sensitivity set to high or medium? No → Increase sensitivity.
• Fresnel lens clean and unobstructed? No → Clean the lens. Remove obstructions.
• Firmware up to date? No → Update the firmware.
• Still not triggering → Battery voltage is likely too low. Replace batteries.

Night photos are grainy or blurry.

• Is the subject within IR range? No → Move camera closer.
• Is the IR window clean? No → Clean with microfiber cloth.
• Is the camera mounted securely? No → Stabilize the mount.

Night photos are washed out or too bright.

• Exposure compensation set correctly? No → Reduce night exposure setting.
• Subject too close to the camera? Yes → Move camera farther back.

Frequently Asked Questions

Why does my trail camera take black photos at night?

The most common cause is weak batteries. The IR LEDs require more power than the daytime operation. Alkaline batteries often drop below the required voltage at night.

Switch to lithium AA batteries and retest.

How can I test if my trail camera IR LEDs are working?

Use the phone camera test. Put the camera in a dark room. Open your phone camera.

Point it at the IR LEDs. A bright purple or pink glow means they are working. No glow means they are dead or not getting power.

Can a firmware update fix night vision problems?

Yes. Firmware updates often fix bugs related to PIR calibration, night mode scheduling, and power management. Check your camera manufacturer website for the latest firmware version.

Follow their update instructions carefully.

Why does my camera work during the day but not at night?

The camera uses more power at night for the IR LEDs. Your batteries may have enough voltage for daytime operation but not enough for the night load. Lithium batteries typically solve this problem.

How do I remove condensation from my trail camera lens?

Bring the camera indoors and let it dry completely. Remove the batteries and SD card. Place silica gel packets inside the battery compartment.

Check all rubber seals for cracks. Replace damaged seals before using the camera outside again.

Should I replace my trail camera if the night vision stops working?

Not yet. Most night vision failures are caused by batteries or settings. Replace the batteries first.

Check the schedule settings. Do the phone camera test. Try a factory reset.

Only replace the camera if the IR LEDs are confirmed dead after all troubleshooting steps.
