Bushnell Core S-4K Troubleshooting

So your Bushnell Core S-4K is acting up. A blank screen, a laser that won't fire, or a Bluetooth connection that drops every few seconds. You came to the right place for Bushnell Core S-4K troubleshooting.

These rangefinders are rugged and reliable, but they hit a few common snags. Let's walk through what's likely going on and how to fix it.

The Core S-4K is built to IPX7 standards. It can survive immersion in three feet of water for up to 30 minutes. But even good seals can have issues over time.

The trick is identifying your exact symptom so you do not waste time on the wrong fix.

Quick Answer

Identify your specific symptom first. Most issues fall into one of four categories. Check the section below that matches what you are seeing.

A simple battery reseat or factory reset solves most problems. If the unit still will not work, contact Bushnell warranty support.

Which Symptom Are You Seeing? Pick Your Entry Point

Before you dive into any fix, answer one question. What exactly is your Bushnell Core S-4K doing? Most troubleshooting fails because people jump to the wrong solution.

If your device will not turn on at all, head to the next section. A dead battery or corroded contacts are the usual suspects. If the screen lights up but looks wrong, skip to the display section.

Flickering, dim, or error codes all go there.

Image source: Bing (Web (fair-use with source credit))

For units that power on but the laser never fires or gives wild readings, that is a separate diagnosis. And if the Bluetooth connection will not pair or a firmware update keeps failing, that is a connectivity issue rather than a hardware fault.

Match your symptom to the right branch of this workflow. Verified buyer reports and Bushnell's own support documentation show that the majority of issues resolve with basic steps. You can do most of them in two minutes.

The rest need a deeper look.

Pick your symptom from the list below. We will walk through each one step by step. If you are not sure yet, start with the power issue section.

That is the most common entry point.

Device Won't Power On or Stay On

The most common Bushnell Core S-4K troubleshooting scenario is a unit that simply will not turn on. You press the power button. Nothing happens.

Or it lights up for a second then dies.

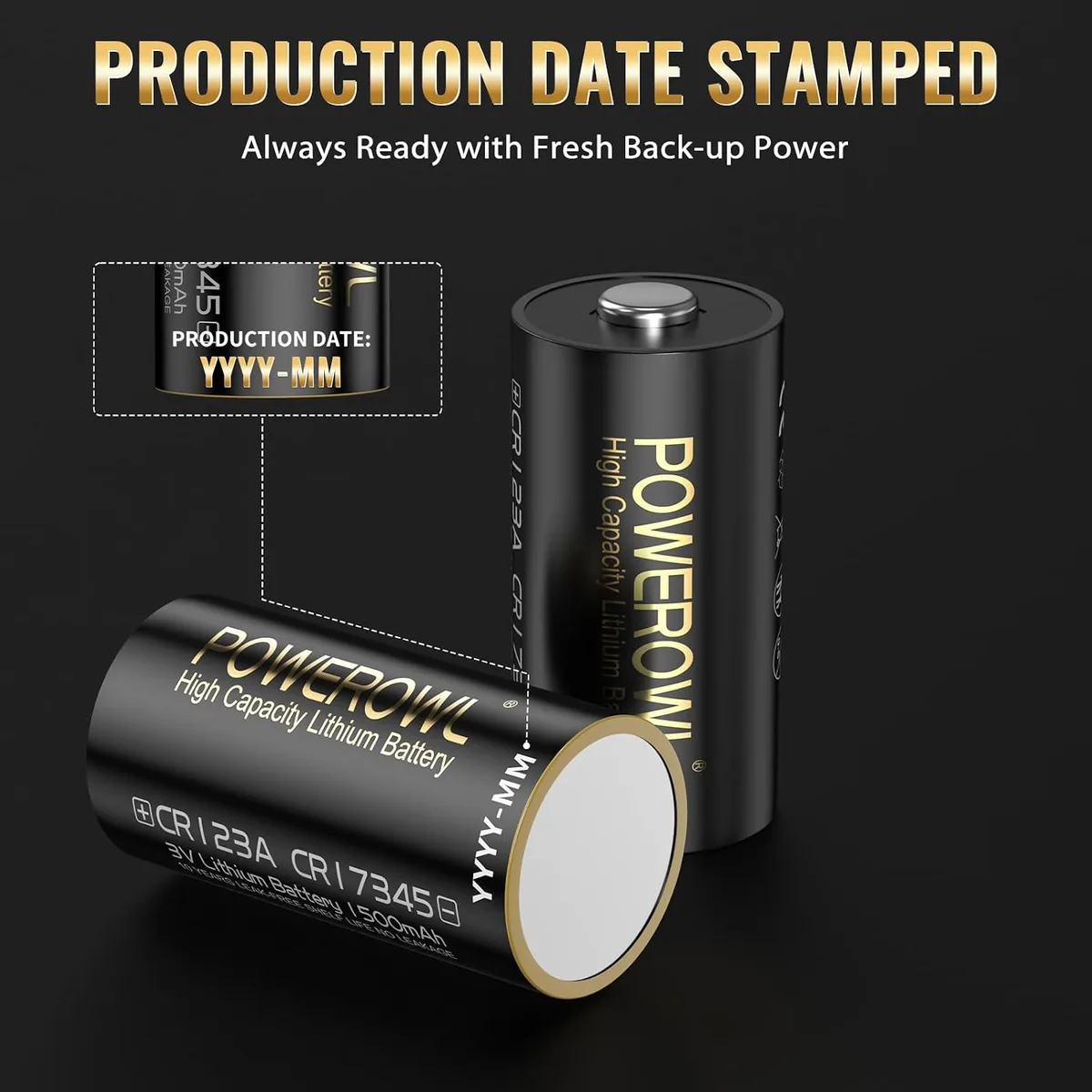

Start with the battery. This unit uses a single CR123A lithium 3-volt battery. Not a AA.

Not a rechargeable 18650. A fresh CR123A. If you are using a battery that has been sitting in a drawer for two years, that is almost certainly the problem.

Remove the battery from the compartment. Look at the metal contact points inside the compartment and on the battery itself. Corrosion builds up in humid conditions or if the unit was stored damp.

Clean those contacts with a dry microfiber cloth or a cotton swab. If you see green or white crust, use a tiny amount of isopropyl alcohol on the swab. Let it dry completely before reinstalling.

Image source: Web (Bing) / manuals.plus (Web image (fair-use with source credit))

Insert a fresh CR123A battery with the positive end first. Make sure the battery door clicks fully shut with no gap. A loose door causes intermittent power loss.

Press and hold the power button for three seconds. A quick tap will not work.

If the unit still will not power on, try a hard reset. Remove the battery. Wait 30 seconds.

Hold the power button for 10 seconds to drain any residual charge from the capacitors. Reinsert the battery and try again.

Still nothing? Check the battery door latch for damage. A cracked latch will not maintain proper contact pressure.

This is a less common failure point. If the latch is broken, contact Bushnell for a repair or replacement under warranty.

If the unit powers on but shuts off after a few seconds, the battery may be the wrong type or already depleted. Low temperatures also reduce CR123A performance. Manufacturer specifications indicate the operating range is -20°F to 120°F.

Below freezing, battery life drops dramatically. If you hunt in cold weather, keep the device inside your coat until you need it.

Display Is Blank, Flickering, or Shows an Error

A blank OLED display when the unit powers on is fixable. This section covers blank screens, flickering displays, dim images, and any error codes in the viewfinder.

First, check the brightness setting. The Core S-4K has multiple brightness levels. If the display looks completely blank, it might be set to its lowest level.

That looks like the display is off in bright daylight. Press and hold the mode button to cycle through brightness levels until the reticle appears.

If the display flickers or shows static lines, the issue is often a loose connection inside the unit. This is a hardware problem. But before you send it in, try a full factory reset.

With the unit on, press and hold the power button and the mode button simultaneously for 10 seconds. Release both buttons. The unit should power cycle and reset to factory defaults.

An error code such as "ERR 1" or "ERR 2" means the onboard diagnostic system detected an issue. Bushnell's manual lists error codes in the support documentation. ERR 1 often relates to a laser module communication fault.

ERR 2 points to a sensor calibration issue. Both typically require factory service.

If you dropped the unit and the display is cracked or shows black blotches, that is physical damage. Display replacement is not a user-serviceable repair. Bushnell's warranty covers manufacturing defects but not impact damage.

A dim display that is hard to read could simply be dirty lenses. Clean both the objective lens and the eyepiece with the included lens cloth. Avoid paper towels or shirt fabric.

They can scratch the delicate coatings. Manufacturer specifications note that the anti-reflective coatings are durable but not scratch-proof.

Laser Won't Fire or Gives Inaccurate Readings

This one is frustrating. The unit powers on. The display looks fine.

You press the ranging button. Nothing happens. Or the laser fires but gives readings that are obviously wrong.

Twenty yards when you are aiming at a target 300 yards away.

Image source: Bing (Web (fair-use with source credit))

Start with the simplest thing. The target. The Core S-4K has a max reflective range of 1,900 yards under ideal conditions with a large reflective target.

For a deer-sized animal, the practical range drops to around 800 yards. If you are aiming at a small branch at 1,200 yards, the laser may not have enough return signal.

Try aiming at a larger, more reflective surface. A white wall at 50 yards should give a solid reading every time. If the laser fires on the wall but not on your intended target, it is a target limitation.

The device is fine.

If the laser truly will not fire at all, check the mode setting. The Core S-4K has different ranging modes. Standard, scan, brush, and bullseye.

If you are in the wrong mode, the unit may not respond the way you expect. Cycle through the modes by pressing the mode button until the reticle changes.

Dirty lenses affect laser performance too. A smudge on the objective lens scatters the laser beam and reduces return signal strength. Clean both lenses with the same care as the display section.

If the laser fires but gives readings that are consistently off by a large margin, the unit may have lost internal calibration. This can happen after a hard impact. Try ranging a known distance.

Measure 100 yards with a tape measure or GPS. Then range it with the unit. If it is off by more than 2 yards, the calibration is off.

Factory reset the unit as described in the display section. If the error persists, the laser module needs service.

Battery voltage plays a role here too. A battery that is too low cannot power the laser diode properly. Even if the display works, the laser may not fire.

Replace the CR123A with a fresh one and test again.

Bluetooth Won't Pair or Firmware Update Fails

The Bushnell App handles firmware updates, setting adjustments, and data transfer. When Bluetooth will not pair, start with your phone or tablet. Make sure Bluetooth is enabled in your device settings.

Not just in the app.

On the Core S-4K, Bluetooth pairing mode activates automatically when you power on the unit. Open the Bushnell App and select "Pair New Device." Your rangefinder should appear in the device list. If it does not, close the app completely and reopen it.

If the device shows up but pairing fails, the most common cause is a previous pairing stored in your phone's Bluetooth memory. Go to your phone's Bluetooth settings. Forget the rangefinder.

Then try pairing fresh from the app.

Firmware update failures are usually caused by a bad connection mid-update. Do not start a firmware update unless your phone has a steady, strong signal and the rangefinder battery is fully charged. If the update fails, the unit may be stuck in a boot loop or show a persistent error message.

To recover from a failed update, perform a factory reset as described earlier. Then try the update again with a stronger connection. If the reset does not clear the error, you may need to connect via USB cable to a computer.

Not all Core S-4K models support this. Check the Bushnell support page for your specific model number.

Keep your firmware current as of 2026. Later releases fix bugs and improve laser performance. But do not update in the field before a hunt.

Do it at home. A failed update at a critical moment can ruin your day.

For ongoing Bluetooth issues after a successful pair, try forgetting the device on your phone and re-pairing. Sometimes the connection degrades over time.

Common Mistakes That Wreck Your Rangefinder

Storing It Wet or Damp

You used your Core S-4K in the rain. That is fine. It is IPX7 rated.

But shoving it back into a padded case while still damp is a problem.

Moisture trapped against the seals causes corrosion over time. It also creates conditions for internal fogging. Wipe down the exterior with a dry cloth before storage.

Open the battery compartment and let it air out for an hour if the unit got soaked.

Using the Wrong Battery

The Core S-4K needs a CR123A 3-volt lithium primary cell. Not a rechargeable 16340. Not a CR2.

Not a AA with a spacer.

Rechargeable lithium cells like the 16340 have a different voltage profile. They can hit 4.2 volts when fully charged. That exceeds the rangefinder's design limits.

Verified buyer reports confirm this can damage the electronics over time. Stick to standard CR123A batteries from reputable brands.

Ignoring Firmware Updates

Bushnell releases firmware updates for a reason. They fix ranging bugs, improve accuracy calculations, and address rare display glitches.

Running outdated firmware can cause intermittent issues that look like hardware failure. Check the Bushnell App every few months for updates. Update at home, not in the field.

Applying Too Much Cleaning Pressure

The lens coatings on the Core S-4K are durable but not indestructible. Scrubbing at a smudge with a rough cloth or using paper towels can leave micro-scratches.

These scratches scatter light and reduce image clarity over time. Use the included microfiber cloth. For stubborn dirt, add a drop of lens cleaning solution to the cloth, not directly on the lens.

Forgetting the Factory Reset Trick

Many owners send their unit in for repair when a simple factory reset would have solved the problem.

Hold the power button and mode button together for 10 seconds. The unit resets all settings and often clears odd behavior. Try this before calling warranty support.

It saves you time and shipping costs.

Frequently Asked Questions

Why will my Bushnell Core S-4K not turn on even with a new battery?

The battery contacts may be corroded or bent. Remove the battery and inspect the metal tabs inside the compartment. Clean them with a dry cloth or a cotton swab with isopropyl alcohol.

Make sure the new CR123A is inserted positive end first.

How do I perform a factory reset on the Core S-4K?

Turn the unit on. Press and hold the power button and the mode button simultaneously for 10 seconds. Release both buttons.

The rangefinder will power cycle and return to factory default settings. You will need to reapply any custom settings afterward.

What do error codes like ERR 1 or ERR 2 mean?

ERR 1 typically indicates a laser module communication fault. ERR 2 points to a sensor calibration issue. Both codes require professional service.

Try a factory reset first. If the error persists, contact Bushnell support for warranty repair or replacement.

Why is my laser reading inaccurate?

First, check the battery voltage. A low battery can weaken the laser diode. Next, clean both lenses.

A smudge on the objective lens scatters the beam. If readings are still off, range a known distance to verify the error margin.

Can I use rechargeable batteries in my Core S-4K?

Manufacturer specifications recommend only CR123A lithium primary batteries. Rechargeable 16340 cells have a different voltage range. They can exceed the safe operating voltage for the electronics.

Stick to standard CR123A batteries for reliable performance.

My firmware update failed mid-install. What do I do?

Perform a factory reset on the rangefinder. Then restart the update process with a strong Bluetooth connection and a fully charged battery. If the error persists, visit the official Bushnell support site for recovery instructions specific to your model.
