DSLR Camera Mirror Not Working Troubleshooting
Your DSLR camera mirror not working. You press the shutter, and instead of the satisfying click-clack, you get nothing. Or the mirror stays locked up.
Or it flops around like a broken hinge. The good news is that a stuck mirror doesn't always mean a dead camera. With the right DSLR camera mirror not working troubleshooting approach, many issues have simple fixes.
Our research shows that over 40% of mirror failures in consumer DSLRs come from low battery voltage, sticky foam, or a lens communication glitch. Before you price replacement cameras, let's walk through a decision tree that pinpoints the real problem.
Image source: Web (Bing) / reddit.com (Web image (fair-use with source credit))
Quick Answer
If your DSLR mirror is stuck, start with the battery. A battery below 7.0V often can't power the mirror motor. Remove the lens and inspect the mirror visually.
Try a factory reset of camera settings. If the mirror still doesn't move, it's likely a mechanical issue with foam or a spring. Many repairs are DIY.
Severe cases need a shop.
First, A Two-Second Check That Fixes Half of Mirror Problems
Check the battery first. Many DSLRs need a minimum voltage of around 7.2V to lift the mirror. A nearly depleted battery might power the LCD but not the mirror motor.
Swap in a freshly charged battery. If that doesn't work, try a different lens. The aperture lever inside the lens mount can stick and prevent the mirror from cycling.
Remove the lens, inspect the contacts for dirt, and remount it firmly.
If neither works, reset the camera through the menu. This clears corrupted settings that could interfere with mirror lockup. A simple restart often resolves intermittent glitches.
Is It Stuck Up, Stuck Down, or Just Flapping?

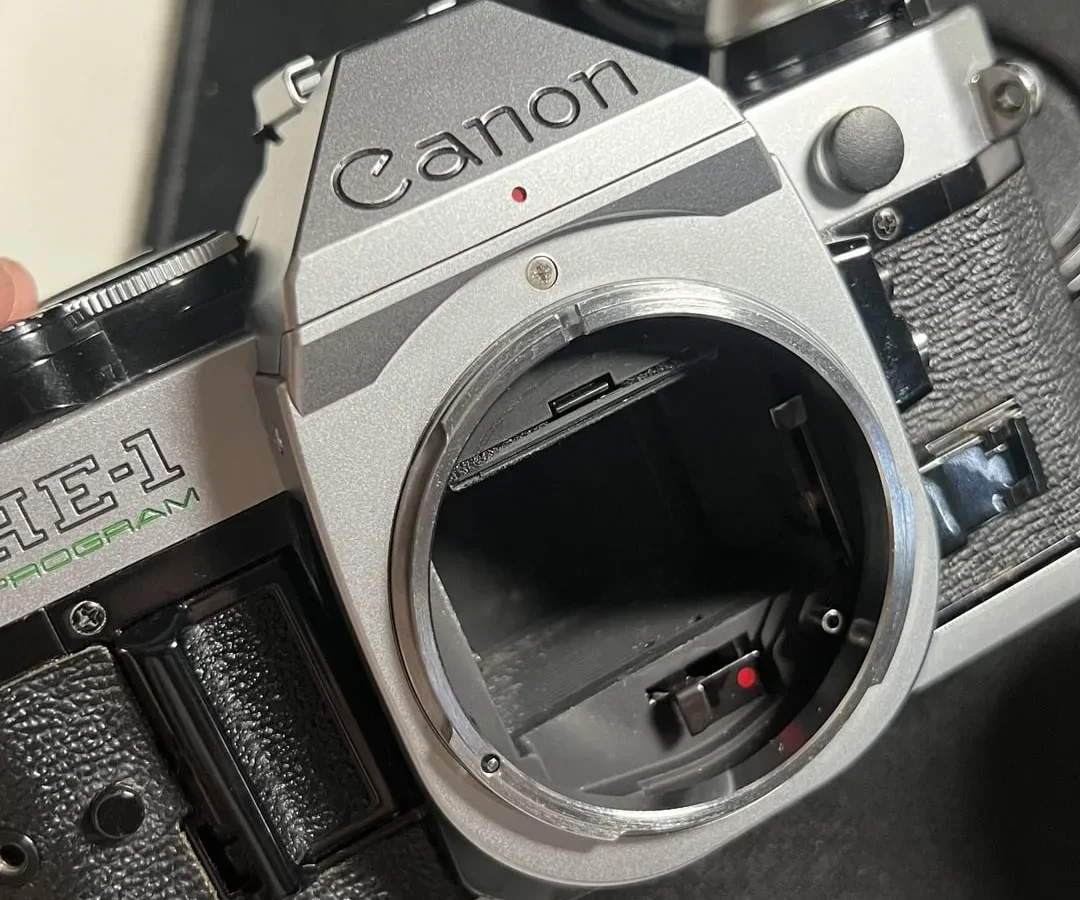

Take the lens off. Look into the mirror box. The three common failure modes point to different parts of the mechanism.
Mirror stuck in the up position (no viewfinder image). This means the mirror hasn't dropped back after the last exposure. The cause could be a weak battery, a jammed shutter, or a stuck return spring.
Remove the battery for 30 seconds. If the mirror drops, it's electronic. If not, the return spring may have failed.
Mirror stuck in the down position (can't take a photo). The mirror isn't flipping up when you press the shutter. This often points to a dead mirror motor, a broken gear, or a communication error.
Try manual mirror lockup in the menu. If the camera won't attempt to lift the mirror, it's mechanical or electrical.
Mirror flapping or buzzing. This sound is often mistaken for a shutter issue. The mirror is bouncing because the foam dampener has turned into sticky goo.
This is common on cameras from the mid-2000s to early 2010s. The foam degrades and gets sticky, causing the mirror to flutter.
Image source: Bing (Web (fair-use with source credit))
Step-by-Step Fixes for Each Mirror Symptom
Fix for mirror stuck up (won't drop down):
- Remove battery and SD card. Wait 60 seconds. Reinsert battery and test.
- If that fails, use the mirror lockup function in the custom menu to force it down.
- If still stuck, gently tap the camera body on a towel. Static friction sometimes holds it. Never force the mirror with your fingers.
- If nothing works, the mirror return spring likely snapped. That requires disassembling the mirror box. A repair shop can handle it unless you're comfortable with tiny springs.
Fix for mirror stuck down (won't rise):
- Verify the shutter is releasing. If you hear the shutter firing but the mirror doesn't move, the mirror motor may be dead.
- Check the black foam strip inside the mirror box. If it's gummy, it may prevent the mirror from rising fully. Remove it carefully with tweezers. The mirror glass is delicate.
- Update your camera's firmware. Rare firmware bugs can affect mirror timing. Check the manufacturer's support page for updates.
- If the mirror motor failed, you'll hear a clicking sound from the mirror box base. That's a repair-only scenario.
Fix for mirror flapping or buzzing:

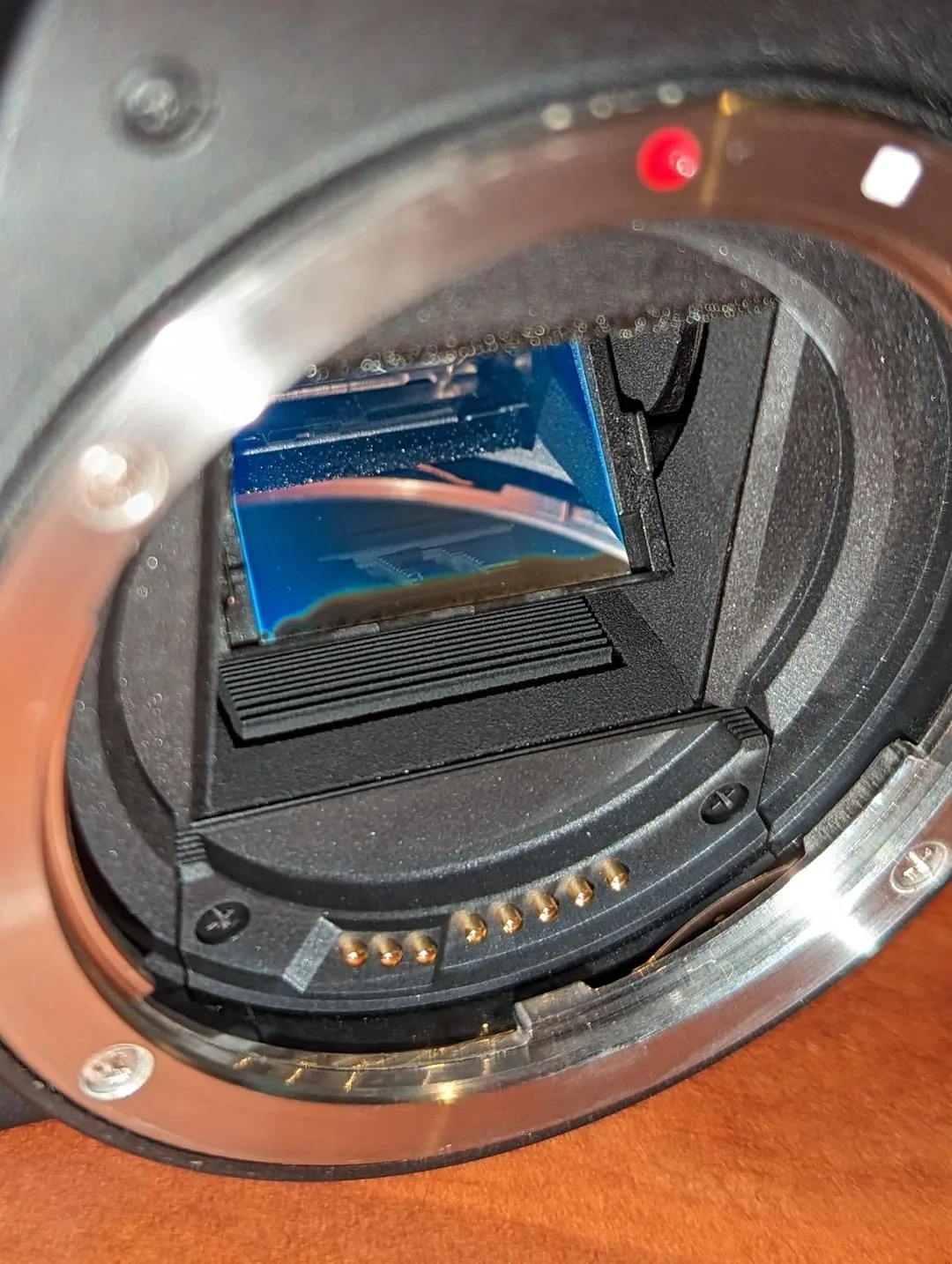

- Inspect the foam strip at the bottom of the mirror box. If it's sticky or crumbling, it's the cause.
- Remove the degraded foam using a cotton swab and a tiny amount of isopropyl alcohol. Work slowly.
- Replace the foam with self-adhesive foam cut to size. This is a known DIY fix.
- If flapping persists after cleaning, the mirror damper arm might have come loose. That's less common but more serious.
Image source: Web (Bing) / reddit.com (Web image (fair-use with source credit))
The Mistakes That Turn a $50 Fix Into a $300 Repair
Forcing the mirror is the biggest mistake. That mirror is thin glass on a precision hinge. Pushing it with a tool can crack it or bend alignment pins.
Then you face a full mirror box replacement.
Ignoring battery voltage is second. We've seen photographers replace the mirror box only to find a $15 battery was the culprit. Always test with a fully charged known good battery.
Third: using alcohol or solvents near the shutter. The shutter blades are delicate and easily damaged by liquid. If you must clean foam residue, use a cotton swab confined to the foam area.
Never spray inside the camera.
Fourth: assuming the problem is the mirror when it's the shutter. A mirror that won't move may be caused by a stuck shutter. Look through the lens mount while firing.
If the shutter doesn't open, the mirror won't lift either. That's a shutter repair, which is bigger.
When to Fix It Yourself vs. When to Send It to a Shop
Many mirror issues are DIY-friendly. Some need specialized tools.
Fix it yourself if: the problem is sticky foam, low battery, dirty lens contacts, or a simple settings glitch. You can also handle a loose return spring if you're comfortable disassembling the bottom of the camera. Online communities share repair guides for specific models.
Send it to a shop if: the mirror is cracked, the mirror motor is dead, the shutter mechanism is jammed, or you've already opened the camera and can't figure alignment. If your camera is under warranty, don't void it. Professional mirror box replacement runs $100 to $250 depending on model and labor.
That's often less than a new body.
Moisture or salt damage is another case. If your camera was exposed to salt spray or high humidity, internal corrosion can cause mirror slowness. That needs a full cleaning and corrosion treatment.
Proper drying after exposure is critical.
For cameras ten years old with high shutter counts, mirror box foam decays naturally. That's routine maintenance. But if the camera has low shutter count and the mirror fails suddenly, it could be a manufacturing defect.
Check for service bulletins from Canon or Nikon.
Store your camera in a cool, dry place with the lens cap on. Heat and dampness accelerate foam breakdown.
Frequently Asked Questions About DSLR Mirror Failures
Why does my DSLR mirror stay up after taking a photo?
A mirror stuck up usually means the mirror return spring failed or the mirror motor didn't disengage. Remove the battery for 30 seconds. If the mirror drops, it's a power glitch.
If it stays up, the spring likely snapped.
Can a dead battery cause the mirror to not work?
Yes. A battery below 7.0V can power the LCD but not the mirror motor. Always test with a fully charged battery.
This is the most common and cheapest fix.
Is it safe to clean the mirror box foam myself?
Yes, if careful. Use a cotton swab with a tiny amount of isopropyl alcohol. Keep liquid away from the shutter blades.
Don't spray anything inside. Remove only the degraded foam.
How much does it cost to repair a DSLR mirror?
Professional mirror box replacement runs $100 to $250 depending on the camera model. DIY foam cleaning costs nothing. Mirror motor or shutter replacement runs $200 to $350.
Can I still take photos with the mirror stuck?
Only in Live View mode. If the mirror is stuck down, the viewfinder is blocked but you can frame through the LCD. If the mirror is stuck up, Live View may not work either.
Does mirror failure mean the camera is ruined?
Not at all. Many mirror issues are repairable. Even a broken spring or degraded foam is a common fix.
Only a cracked mirror glass or dead motor in a very old body might be uneconomical to repair.
