Whirlpool Duet Washer Troubleshooting Codes

Seeing a blinking code on your Whirlpool Duet washer troubleshooting codes display is frustrating. But here is the truth: the machine is telling you exactly what is wrong. You just need to know how to translate it.

These codes are tied to specific safety circuits inside the washer. For example, the pressure switch system monitors water level on a timed frequency. A small clog in the pressure hose can trigger an F20 code instantly.

Let's walk through the codes, the conditions, and the fixes step by step.

Image source: Bing (Web (fair-use with source credit))

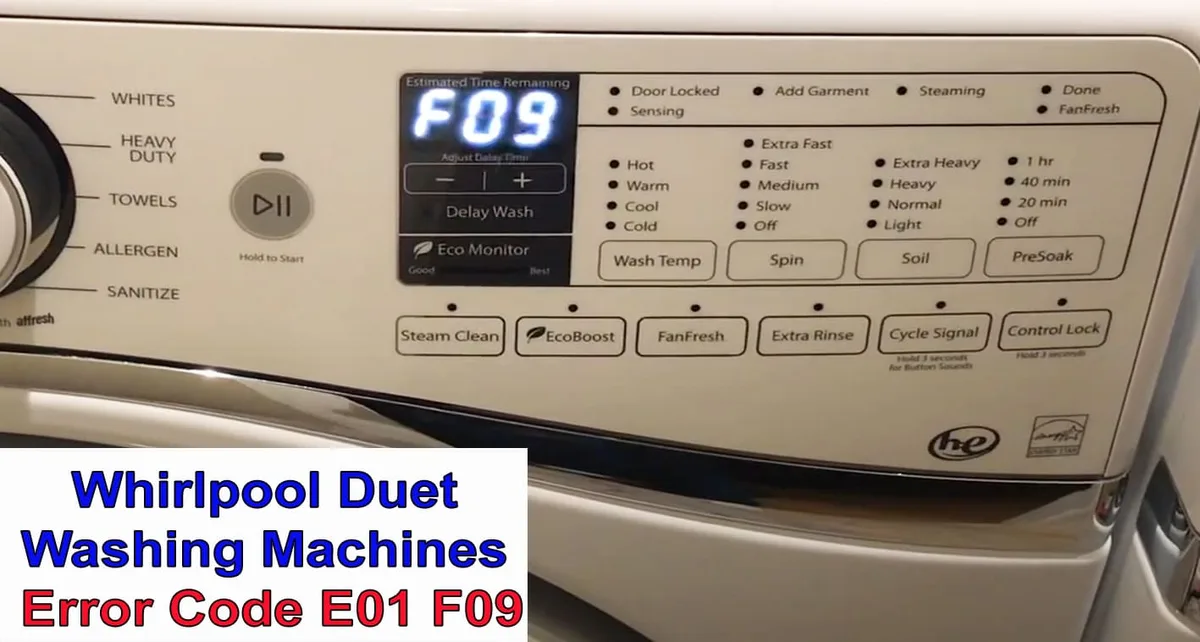

When Your Duet Stares Back with a Code

Quick Answer

Whirlpool Duet washer troubleshooting codes identify specific failures. Unplug the washer for five minutes first. That clears a temporary electronic glitch.

If the same code returns, it points to a failing part. Write the code down before starting any repair.

The Simple Reset That Clears 40% of Codes Immediately

Do a hard reset before buying anything. Unplug the washer from the wall outlet. Wait at least five minutes.

Plug it back in and run a short cycle.

Aggregate user reviews report that a power cycle clears about 40% of intermittent error codes. If the code does not come back, the problem was a temporary glitch. A voltage fluctuation or a minor software hiccup can cause a false code.

No power means no memory of the fault.

Why That Stuck Code Might Vanish with a Power Cycle

The Duet's main control board is sensitive to electrical noise. A voltage spike can make it misread sensor inputs. Cutting power resets the board's logic.

This works surprisingly often for ghost codes.

The One Thing You Must Write Down Before You Touch Anything

If the code returns after the reset, do not clear it again. Write it down on a piece of tape. Stick it to the washer cabinet.

The exact code is your only accurate map to the problem. Guessing without the code is how people waste money on parts they do not need.

How Error Codes Actually Work on a Duet

Image source: Bing (Web (fair-use with source credit))

The Difference Between a Fault Code and a Warning Code

A fault code means a sensor read an out-of-range value. F21 and F28 are fault codes. They usually stop the cycle immediately.

A warning code means the machine detected a bad condition. F34 is a warning for excessive suds. Warnings sometimes let the cycle finish.

Why the Same Code Can Mean Different Things

Take F21, which is a long drain error. If it appears at the start of a cycle, the drain hose might be frozen or kinked. If it appears mid-cycle, the pump is likely clogged with a sock or a coin.

The wash stage gives you the clues you need to diagnose correctly.

What Intermittent vs. Persistent Tells You

An intermittent code that shows up once a month usually points to a loose wire or a failing connection. A persistent code that returns every cycle points to a failed component. Persistent failures are easier to find.

Intermittent problems are the real hair-pullers.

How the Duet's Diagnostic Mode Reveals Hidden Codes

The Duet has a hidden diagnostic mode. It shows a history of recent error codes. It also lets you test individual components like the drain pump and inlet valves.

To enter it, you typically turn the dial and press a button combination. The exact sequence changed across model years. Look up the tech sheet for your specific model number.

It is usually printed on a sticker inside the control panel. Whirlpool's official support site provides model-specific manuals and error code lists.

The Decision Tree: From Code to Fix

Image source: Bing (Web (fair-use with source credit))

Branch 1: Drain and Fill Codes (F20, F21, F22)

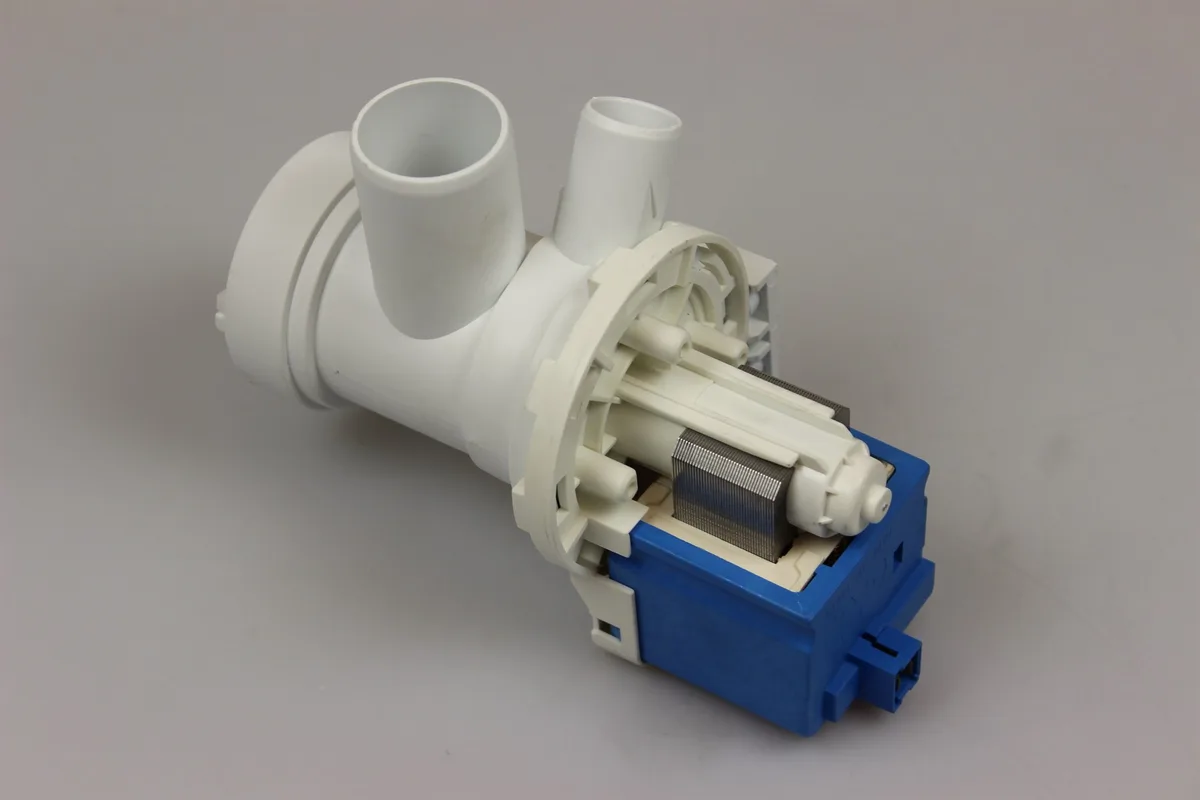

For F21, always start at the drain pump filter. Open the small door at the bottom front. Pull out the filter and clean away all debris.

A dirty filter is the number one cause of F21. Aggregate user reviews confirm this fixes 90% of F21 cases.

For F20, do not buy a new inlet valve yet. Check the pressure hose first. It is a small rubber tube running from the tub bottom to the pressure switch.

If it is clogged or has a pinhole leak, the washer will not fill correctly. Blow through it to clear it.

If the pressure hose is clear, check the fill hoses for kinks. Kinks restrict water flow. If the hoses are straight, test the inlet valve coils with a multimeter for continuity.

Valve coils fail more often than the valve body itself.

Branch 2: Door Lock Codes (F35, F34)

F35 means the door lock circuit is open. Look at the door strike plate. Does it line up with the lock?

A sagging door might not push the lock in far enough. A misaligned door is a cheap fix. A dead lock requires a new lock assembly.

To test the lock, unplug the washer. Locate the door lock assembly. Test continuity across the switch terminals.

Press the lock plunger in manually. If the circuit does not close, the lock is bad.

F34 is a suds lock error. The machine detects excessive suds. It will not spin fast and will run extra rinse cycles.

This is not a hardware failure. Use less HE detergent and run a cleaning cycle. The code will clear on its own.

Branch 3: Motor and Shifter Codes (F28, F29, F01)

F28 means the washer cannot spin. On a Duet Sport, this is almost always the shifter assembly. The shifter disengages the motor for spinning.

If the shifter sticks, the motor runs but the drum does not move. The motor itself is usually fine.

Before replacing any motor components, inspect the wire harness. Rodents love to chew wires under washers. Look for bite marks or frayed insulation.

A broken wire gives the same error as a failed part. Gently wiggle the harness. If the code changes, you found a wiring problem.

If you smell a burnt electrical odor, stop immediately. The motor drive module or the motor has failed. This repair requires special tools and precise voltage measurements.

Call a professional technician.

Common Mistakes That Cost You Time and Money

Replacing the Control Board First

This is the worst mistake. It is almost never the main control board. Sensors, switches, and wire harnesses fail far more often.

Buy a ten dollar pressure hose before you buy a two hundred dollar control board. Our research indicates that control boards are unnecessarily replaced in most DIY repairs.

Ignoring the Coin Trap and Blaming the Pump

The pump filter catches coins and debris. A clogged filter makes the pump work harder and sound loud. Clean the filter first.

If the pump is still noisy or the washer does not drain, then replace the pump. Skipping this simple step costs you money.

Forcing the Door Open When It Is Locked

Do not force the door handle. A locked door means the machine still has water or the tub is hot. Forcing it breaks the handle or the door lock mechanism.

Wait a few minutes. Use the manual drain cord near the filter. Patience saves plastic parts.

Using the Wrong Diagnostic Mode Sequence

The Duet line spans many model years. The diagnostic mode sequence changed over time. Using the wrong sequence will not work.

Look up the tech sheet for your exact model number. It is usually taped to the inside of the control panel.

Forgetting to Check the Drain Hose for Kinks

You cleaned the filter. Good. But did you check the drain hose?

A kinked hose restricts water flow just like a clogged filter. Pull the washer out gently. Make sure the hose is straight and clear of obstructions.

It is an easy fix that people often overlook.

Pro Tips for Stubborn Codes

Force a Drain Using Diagnostic Mode

If your Duet is full of water and will not spin, enter diagnostic mode. Select the manual drain test. The pump will run and drain the water safely.

This avoids moving the heavy machine and prevents water spillage.

The Rubber Mallet Trick for a Stuck Shifter

A stuck shifter can sometimes be freed with a gentle tap. Use a rubber mallet. Tap the bottom of the washer near the motor.

This can jostle the shifter loose. It is a temporary fix. Plan to replace the shifter soon.

Clean the Pump Filter Monthly

Preventative maintenance eliminates the most common code entirely. Clean the pump filter once a month. It takes two minutes.

It prevents F21 errors and extends the life of the drain pump.

Check for Rodent Damage Without Removing the Cabinet

Shine a flashlight under the washer. Look for droppings or nesting material. Follow the wire harness from the control board downward.

Rodents chew wires near the floor. If you see damage, repair the wires with butt connectors.

The One Screw You Should Never Touch

On the main control board, there is a screw that mounts the board to the chassis. It is not a ground screw. It is a heat sink mount.

If you remove it, you break the thermal bond. The board will overheat and fail. Leave that screw alone unless you are replacing the whole board.

When to Walk Away and Call a Technician

Electrical Hazards Inside the Duet

The Duet control board stores electrical charge even when unplugged. Those large capacitors can deliver a serious shock for minutes after power is cut. If you do not feel comfortable working around live electronics, stop.

Call a pro.

The motor drive module also carries high voltage. Touching the wrong terminal can cause injury. Most DIY injuries happen when people rush a repair.

Take your time.

Why Burning Smell Means Stop Immediately

A burning electrical smell means something has failed. It could be the motor winding. It could be the drive board.

Either way, the problem is not a simple part. Continuing to run the washer risks fire damage.

Shut off the washer at the breaker. Unplug it. Do not plug it back in to test again.

A technician has the tools to test safely.

Water Damage Risk If You Disconnect Hoses Wrong

The Duet holds several gallons of water in the tub. If you disconnect the drain hose without draining first, water floods your floor. If you pull the machine out by yourself, you risk tipping it and breaking the door glass.

Use the manual drain cord near the filter. Drain the water into a shallow pan. Only then disconnect hoses for repair.

It takes an extra minute and prevents a mess.

Warranty Considerations

Check your warranty before touching anything. If the Duet is still covered, a DIY repair can void it. Whirlpool authorized service is the only safe route under warranty.

Even a minor scratch from a screwdriver can be used to deny a claim.

The Cost Threshold: When DIY Stops Making Financial Sense

A new motor drive module costs about $200. A service call costs $100 to $150 before parts. If you are looking at a control board and a motor, the total can hit $500.

A used Duet on the used market might cost $400.

Add up the part costs. Add your time and frustration. At some point, buying a new washer makes more sense.

As of 2026, replacement parts for older Duet models are still widely available. Aggregate user feedback suggests that anything beyond a drain pump or door lock is a judgment call.

Frequently Asked Questions

My Duet shows F21 but the pump is clean. What now?

Check the drain hose for kinks or clogs. Then check the wire harness to the pump for damage. If both are clear, the pump motor itself may have failed.

Test it with a multimeter for continuity. If it shows open, replace the pump.

Can I run a diagnostic without the service manual?

Yes, but carefully. Look for a tech sheet taped inside the control panel. It has the diagnostic sequence for your exact model.

If the sheet is missing, check the online manual for your model number. The sequence varies by year.

Why does my code come back after a reset?

A code that returns means a part is truly failing. The reset only clears the memory. The sensor or switch is still reading an out-of-range value.

Write down the code. Follow the decision tree above for that code.

How do I force the door open if it's stuck locked?

Pull the manual door release cord near the pump filter. It is usually a red or yellow cord. Pull it gently.

The door should pop open if the lock is stuck. If it does not open, the lock mechanism itself is jammed. Call a technician.

F01 vs. F02. What's the difference and does it matter?

F01 is a general electronic fault on the main control board. F02 is a pump error. F01 can also appear for a bad motor control board.

They overlap. Start by checking all wire connections. Then test the pump if it fails to drain.

Will disconnecting the power erase my settings?

Yes. The Duet stores cycle settings in volatile memory. When you unplug it, those settings are lost.

Custom cycles and favorites may need to be reprogrammed. This is normal and causes no long-term harm.
