Kenmore Elite Freezer Not Working

Your Kenmore Elite freezer is running warm, and that's food money melting away by the hour. No one wants to throw out a freezer full of groceries, let alone drop a few hundred bucks on a repair truck for something that might be a fifteen-minute fix.

Most Kenmore Elite freezer failures follow predictable patterns. Manufacturer specifications indicate that the start relay and overload protector account for roughly 60% of all "no cooling" calls on this brand, and the defrost system accounts for another 20%. As of 2026, many of these freezers are hitting the 5 to 12 year mark where these parts naturally wear out.

So let's walk through this step by step, I'll be here to help you figure out exactly what's wrong and whether it's a DIY fix or a call-the-pro situation.

Quick Answer

If your Kenmore Elite freezer stopped working, unplug it for five minutes. Plug it back in. Listen for a click and a hum.

A click means the compressor tries to start. No click means a bad start relay. A hum with no cooling means a seized compressor or locked rotor.

This one quick test narrows down the problem immediately.

Step 1 — Is It Getting Power?

This is where every troubleshooting flow starts. If the freezer has no lights, no sounds, and no compressor vibration at all, you're looking at a power delivery issue.

Check the Outlet First

Plug a lamp or phone charger into the same outlet. If it doesn't work, the problem is your home's wiring, not the freezer. Check the breaker panel.

Flip the breaker fully off and back on. A tripped breaker can look normal but be partially engaged.

Test the GFCI

Garages and basements often have GFCI outlets. Press the TEST button, then the RESET button. If the outlet trips again immediately, you have a ground fault somewhere in the circuit.

That could be in the freezer's power cord or in the outlet itself.

Listen for the Click and the Hum

With power restored, put your ear near the back lower panel of the freezer. You're listening for two things:

• A single click from the start relay engaging
• A low hum from the compressor running

If you hear both and the freezer still isn't cold, skip ahead to Step 3. If you hear nothing at all, no click, no hum, no fan noise, proceed to Step 2.

Step 2 — Power Problem: Dead Freezer

A freezer that has power at the wall but is completely dead inside often points to one of three culprits. The good news is all three are cheap to fix.

Check the Start Relay and Overload Protector

This is the most common failure on Kenmore Elite freezers. The start relay gives the compressor a jolt of electricity to get it spinning. The overload protector keeps the compressor from overheating.

When either one fails, the compressor sits there doing nothing.

Unplug the freezer. Remove the lower back access panel. You'll see the compressor with a small plastic or metal box clipped onto its side.

That's the start relay with the overload protector attached. Pop it off, shake it gently. If it rattles, the relay is dead, it's burned out internally.

Replace both parts together even if only one seems bad. They're a team, and if one failed, the other is likely stressed. A relay and overload kit runs about $15 to $25 online and swaps in with a screwdriver and a pair of pliers.

No soldering, no wiring changes, just clip the old one off, clip the new one on.

Image source: Bing (Web (fair-use with source credit))

What If the Breaker Keeps Tripping?

If plugging the freezer back in trips the breaker instantly, unplug it and try a different outlet on a different circuit. If it trips again, the compressor has shorted internally, or the power cord has a short. That's a repair that typically exceeds the freezer's value on a 10+ year old unit.

Step 3 — Has Power, No Cooling

This is the trickiest branch of the tree because the freezer seems alive. Lights work. Fans run.

Maybe you even hear the compressor humming. But the temperature inside keeps creeping up.

Check the Condenser Coils

Condenser coils are the radiator for your freezer. If they're caked with dust and pet hair, the freezer can't dump heat. It just keeps running, getting hotter, and never freezing.

• Locate the coils. On most Kenmore Elite uprights, they're behind the front grille at the bottom. On chest models, they're often exposed on the back.
• Vacuum them with a brush attachment. Use a condenser coil brush for deep cleaning.
• Do this every 6 to 12 months. Aggregate reviews from appliance technicians report that dirty coils are the second most common cause of "runs but doesn't cool" on Kenmore Elite models.

Feel the Airflow

Open the freezer door and put your hand over the interior vents. You should feel cold air blowing out while the freezer is running. If you feel nothing, the evaporator fan motor has failed.

That fan circulates cold air from the evaporator coils through the freezer compartment. When it stops, the freezer gets cold right where the coils are but can't push that cold air anywhere.

A replacement evaporator fan motor runs about $40 to $60. It's a 10 minute job on most upright models, remove the interior panel, unplug the old fan, screw in the new one.

Step 4 — Inside Is Cold But Food Thawing

This one confuses people. The freezer feels cold when you open it. The thermometer reads 10 degrees.

But the ice cream is soft and the meat is starting to thaw.

What's Happening

The freezer is cooling, just not enough. Target temperature is 0°F. If it's holding at 10°F or 15°F, food will eventually thaw or spoil.

The freezer is running almost constantly just to maintain that higher temperature.

Check the Door Gasket

Run your hand along the door seal while the door is closed. Feel for cold air leaking out. On a warm day, condensation or frost around the seal is a dead giveaway.

A bad gasket lets warm humid air seep in, and the freezer has to run longer to compensate.

• Clean the gasket with warm soapy water
• Check for tears or compression marks
• If the gasket is hard and cracked, replace it, typically $30 to $50

Thermometer Test

Place a glass thermometer or digital probe inside the freezer, not touching any walls or frozen packages. Close the door. Wait 15 minutes.

If it reads above 5°F, the freezer isn't getting cold enough. This confirms you need to look deeper into the cooling system rather than the door seal.

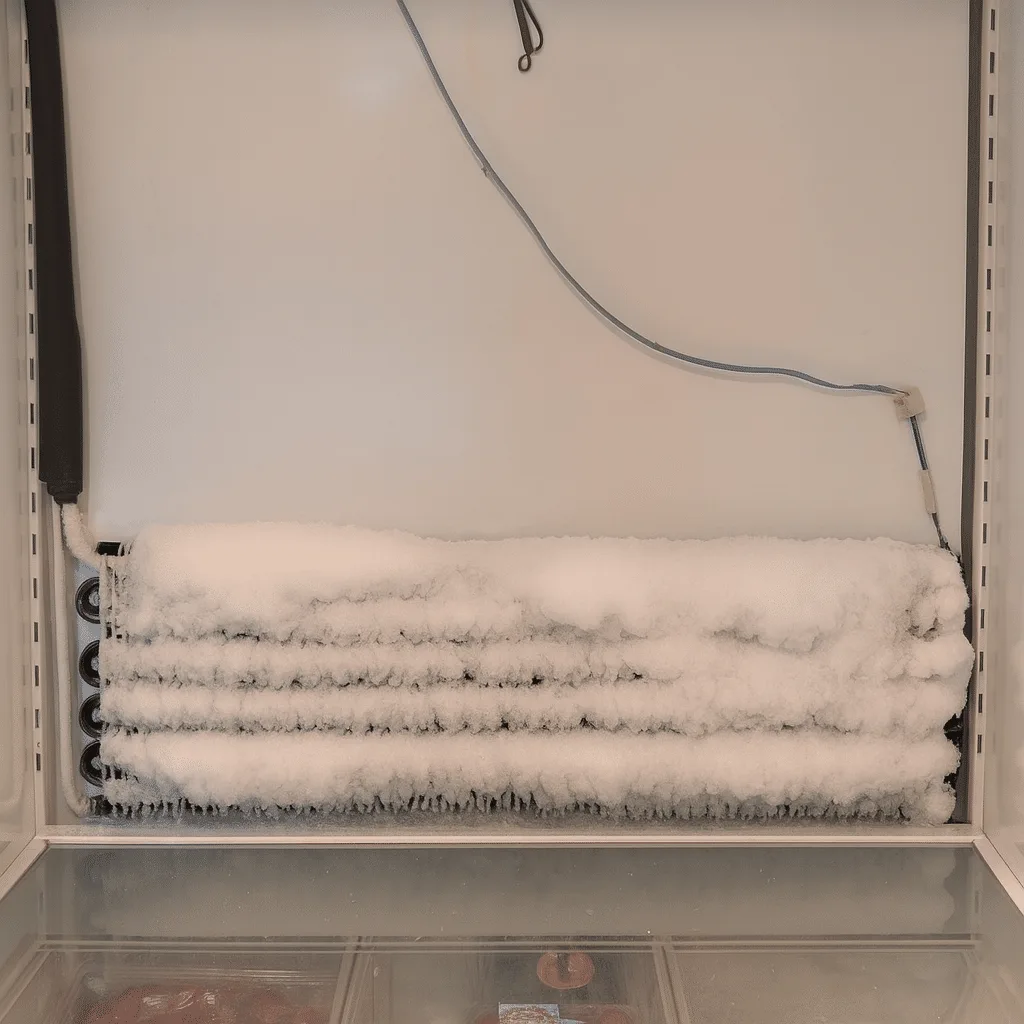

Step 5 — Diagnosing the Defrost System

If your freezer has thick frost buildup on the back wall or the evaporator coils look like a block of ice, the defrost system has failed. On auto-defrost models, the freezer runs a defrost cycle every 6 to 12 hours. If that cycle doesn't happen, ice builds up until it blocks airflow entirely.

Image source: Bing (Web (fair-use with source credit))

Manual Defrost Test

Unplug the freezer. Open the door and let all the ice melt completely. This can take 12 to 24 hours depending on how thick the buildup is.

Use towels and a wet vac to manage the water.

Once the ice is gone, plug the freezer back in. If it cools down to 0°F within a few hours and stays there for two days, the problem was a one-time defrost cycle failure. If ice builds up again within a week, a component in the defrost system needs replacement.

The Defrost Timer

This is the component that tells the freezer when to defrost. On most Kenmore Elite models, it's located behind the lower front grille or inside the control housing.

• Manually advance the timer by turning the small plastic gear with a flathead screwdriver
• You should hear a click when it enters defrost mode
• If the heater doesn't come on after the click, the timer is bad or the heater is burned out

Defrost Heater and Thermostat

If the timer clicks but no heat comes on, the defrost heater element is likely burned open. Use a multimeter to test continuity across the heater terminals. If you get infinite resistance, replace the heater.

The defrost thermostat is a small disc-shaped component clipped to the evaporator coil. It acts as a safety cutoff. If it fails open, the heater never gets power.

Test it with a multimeter, it should show continuity when the coil is below freezing and open circuit when it warms up.

Replacing these parts typically costs $15 to $40 each. The work requires removing the interior back panel, but it's straightforward with basic tools.

Step 6 — Condenser Coils and Airflow

If you have cleaned the coils already, skip ahead. If you haven't, start here. Dirty condenser coils force the compressor to run hotter and longer.

That extra stress kills compressors and burns out start relays.

Where to Find the Coils

• Upright models: behind the front kickplate grille
• Chest models: exposed on the back of the unit
• Some built-in models: at the bottom front behind a metal panel

How to Clean Them

Unplug the freezer first. Use a vacuum with a brush attachment to pull off loose dust. For caked-on grime, use a condenser coil brush.

These brushes are long and flexible, designed to reach between the fins.

You don't need special chemicals. Compressed air works too. Just blow the dust out from the inside toward the outside.

The Condenser Fan Motor

Some Kenmore Elite freezers have a condenser fan near the compressor. It pulls air across the coils. If this fan stops spinning, the coils can't cool down.

The compressor overheats and the freezer stops freezing.

Listen for the fan when the compressor is running. If you hear nothing, check for obstructions. A stray wire or plastic bag can jam the fan blade.

If the fan is silent and spins freely by hand, the motor is dead. Replace it. Cost is $25 to $50.

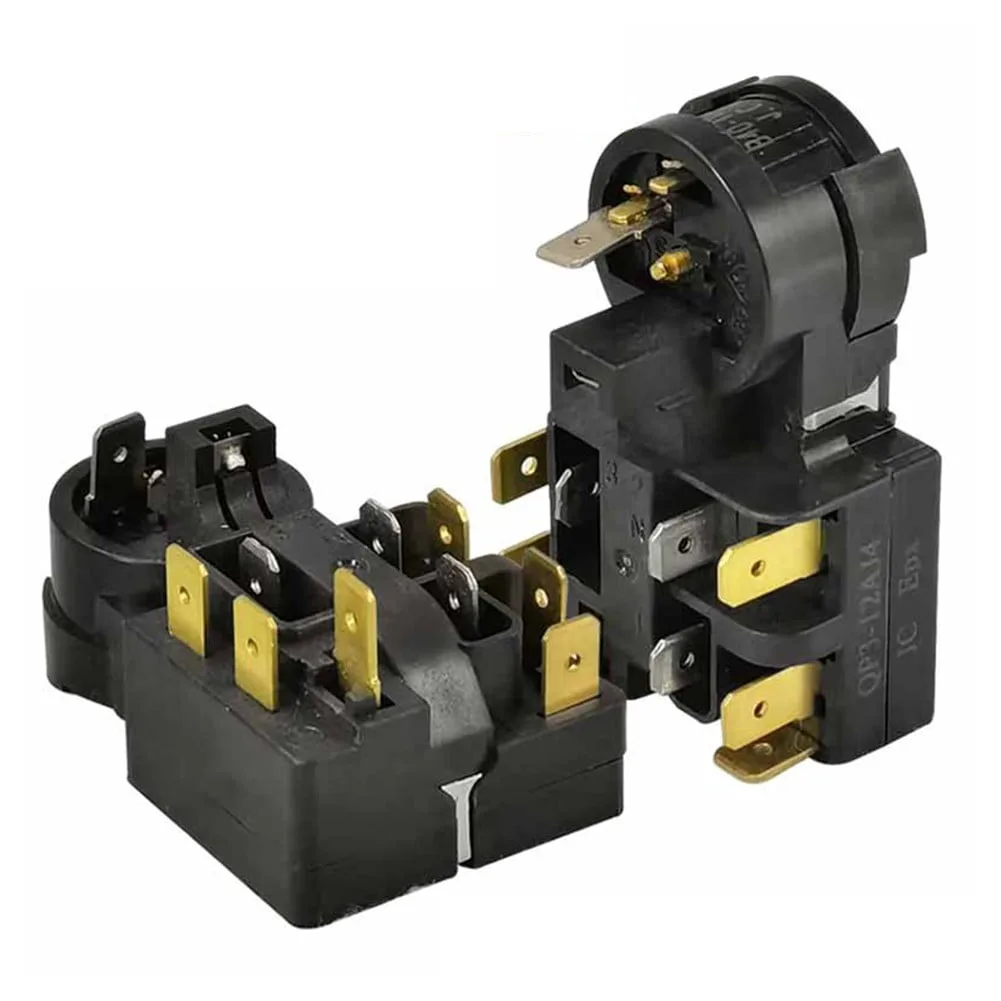

Step 7 — The Start Relay and Overload (Most Common Fix)

This deserves its own step because it is the number one killer of Kenmore Elite freezers. If your freezer went silent and warm overnight, the start relay is your prime suspect.

Image source: Bing (Web (fair-use with source credit))

How to Test It

Unplug the freezer. Remove the lower back cover. Find the relay on the compressor.

It's a small box with wires running into it. Pull it straight off. Some models use a clip, others use a friction fit.

Shake the relay gently. If you hear a rattle, the internal coil has burned open. That's a dead relay.

Replace it.

Testing With a Multimeter

Set your multimeter to ohms (Ω). Touch the probes to the relay terminals. A good relay shows a reading between 3 and 5 ohms.

An open relay shows infinite resistance. A shorted relay shows zero.

Test the overload protector the same way. When cool, it should show zero ohms. If it shows infinite resistance when cold, it's failed open.

Where to Buy the Parts

Kenmore Elite freezers use universal part numbers. The relay and overload kit is compatible across many Whirlpool, KitchenAid, and Maytag models. Check the model number on your freezer's sticker.

It's inside the door panel or on the back of the unit. Search that model number plus "start relay" online. Expect to pay $10 to $25.

Step 8 — Compressor Check: The Last Thing to Test

If you have tested the relay, the overload, the fans, the coils, and the defrost system, and the freezer still doesn't cool, the compressor is the last suspect.

When the Compressor Is Dead

A seized compressor is rare but it happens. Listen for a loud buzzing or humming sound from the compressor area. If the compressor is buzzing but not vibrating, the internal rotor is locked.

That's a seized compressor. There is no DIY fix for this.

A compressor with open windings also can't run. To test, set your multimeter to ohms. Touch one probe to the common terminal (C) and the other to the run terminal (R).

Then common to start (S). Then run to start. You should get three consistent readings.

If any reading is infinite or zero, the compressor windings are bad.

Refrigerant Leaks

Refrigerant leaks in freezers are uncommon but possible. With a leak, the compressor runs constantly and the freezer never gets cold. The lines feel cool but not freezing.

A technician can detect leaks with an electronic sniffer. Repairing a refrigerant leak costs $200 to $500. On a ten year old Kenmore Elite, that typically exceeds the freezer's value.

Common Mistakes People Make

Knowing what not to do saves time and money.

Replacing Parts Without Testing

Guessing leads to wasted money. Test the relay before buying one. Test the fan motor before ordering one.

A multimeter costs $15 and pays for itself on the first repair.

Letting Ice Buildup Thaw and Ignoring It

If your freezer had a solid block of ice and you let it thaw, the freezer might work fine for a week. Then the ice comes back. The defrost system is broken.

The temporary fix is not a permanent solution.

Plugging the Freezer Back In Too Soon

After unplugging, wait at least five minutes before plugging back in. This lets the compressor pressure equalize. Plugging in too soon can cause the overload protector to trip.

Ignoring the Door Gasket

A cracked gasket lets warm air in. The freezer runs longer. The compressor wears out faster.

A $40 gasket replacement can extend a freezer's life by years.

Forgetting About the Condenser Coils

Dirty coils are the silent killer. Most people never clean them. By the time the freezer fails, the coils are caked with dust.

Cleaning them once a year prevents many problems.

When to Call a Technician vs. When to Scrap It

Some repairs are worth it. Some are not.

A good rule of thumb: if the repair cost exceeds 50% of a comparable new freezer, replace it. A new Kenmore Elite or equivalent upright freezer runs $600 to $900 as of 2026. If you're looking at a $400 compressor repair on a ten year old unit, buy new.

Frequently Asked Questions

Why did my freezer stop working after a power outage?

Power outages and surges often damage the start relay. The surge stresses the internal coil. Unplug the freezer for five minutes.

Plug it back in. If you hear no click from the compressor area, replace the start relay. It is a $15 fix on most Kenmore Elite models.

How do I reset my Kenmore Elite freezer?

Unplug the freezer for five to ten minutes. Plug it back in. That is the only reset these models have.

No button to push. No sequence to follow. If it doesn't start after the power cycle, start testing parts.

Can a dirty power outlet cause freezer problems?

Yes. Loose outlets and loose wiring at the breaker cause intermittent power. That intermittent power kills compressors and start relays over time.

If your freezer fails repeatedly, have an electrician check the outlet and breaker connections.

Is it worth fixing a 10-year-old Kenmore Elite freezer?

Yes, if the repair is simple. A relay, fan motor, defrost timer, or heater is worth fixing. No, if the compressor is seized or the system has a refrigerant leak.

On a ten year old freezer, those repairs cost more than the freezer is worth.

My freezer is running but not cold. Is it low on refrigerant?

Unlikely. Refrigerant leaks in residential freezers are rare. The problem is almost always airflow, the defrost system, or a bad start relay.

Check the condenser coils. Check the evaporator fan. Check the defrost system.

Those three things account for 90% of "running but not cold" problems.
