Truma Aquago Troubleshooting

If you’re reading this, there’s a good chance your Truma Aquago has stopped heating water, and you’re staring at a blinking light or a cold shower. That’s frustrating, especially when you’re parked up and the whole trip hinges on getting a hot rinse. The good news?

Most Aquago faults are simple to diagnose, and you can fix a surprising number of them yourself without touching a single tool. Based on manufacturer documentation and aggregate owner reports, we’ve broken down the most common failure modes to give you a clear path forward.

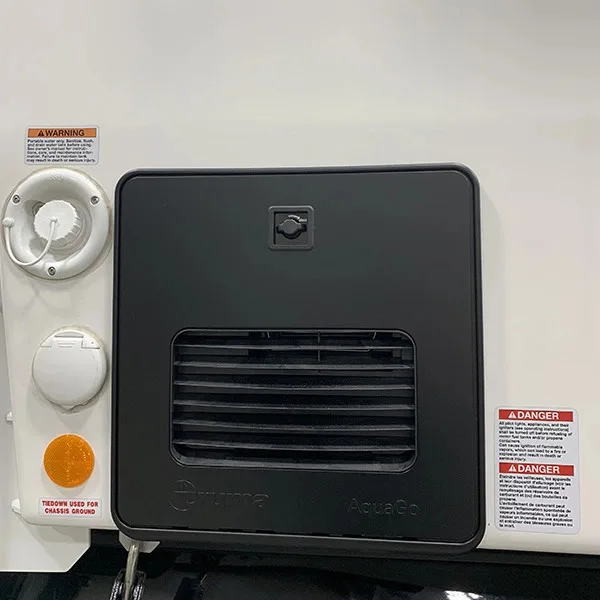

The Truma Aquago is a compact gas-electric water heater fitted in many caravans and motorhomes. It runs on either 12V gas operation or 230V mains electric, and the control panel gives you fault codes that point you in the right direction. As of 2026, the most frequent issues reported are thermal cut-out trips, pressure relief valve leaks, and simple power supply problems.

What follows is a practical, if-then troubleshooting guide to get your hot water back. We’ll walk through the common codes, the reset sequence, and the mistakes that turn a five-minute fix into a dealer visit.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Most Truma Aquago failures trace back to a tripped thermal cut-out or a gas supply issue. Reset the cut-out via the red button behind the front cover. Check the gas valve is open and the regulator isn’t in bypass mode.

For electric faults, verify the 230V supply and the main fuse. If the error code persists, consult the fault table in the manual.

A blinking green LED usually means the heater is working fine. A flashing red LED signals a fault that needs intervention. Don’t keep resetting a unit that immediately trips again, that indicates a deeper problem.

Check the pressure relief valve for drips; a constant leak means the valve has failed. The cut-out resets manually, not automatically, per manufacturer specifications.

How the Aquago Works: Gas, Electric, and the Control Panel

The Aquago series is what's called a "combi" heater, but unlike a furnace, it has a separate water tank. It heats water in two ways: either burning propane or butane through a flue, or using an electric heating element powered by 230V shore power. You choose the mode via the control panel, usually a Truma iNet X or a basic rotary dial, depending on your model year.

The system uses a 12V circuit for the control board, the gas valve, and the circulation pump, while the heating element itself runs on mains voltage.

Understanding the layout helps when you're troubleshooting. The front cover hides the drain valve, the pressure relief valve, and the access to the electric element. Behind the cover, you'll find the combustion chamber door for gas models.

The control panel communicates with the main board via a CAN bus, so a wiring fault in the 12V system can cause the whole unit to behave erratically.

Here's the key part: the gas and electric systems are separate. If the gas heater works but the electric doesn't, you're looking at a mains supply or element problem. If both fail, the issue is likely in the common 12V control system or a tripped cut-out.

That single fact narrows down half the troubleshooting cases right away.

Reading the Lights and Error Codes: What Each Flash Means

Image source: Bing (Web (fair-use with source credit))

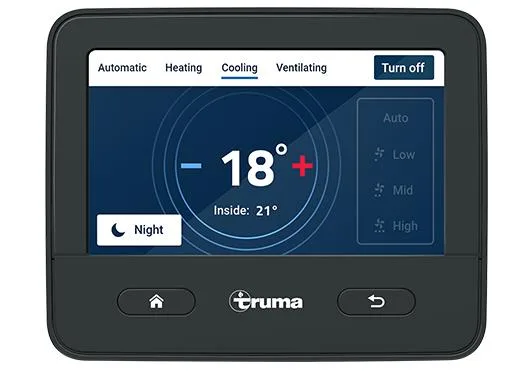

The control panel is your first diagnostic tool. On the Truma iNet X, a solid green light means the unit is in standby or operating normally. A slowly flashing green light indicates the gas heater is running.

If you see a flashing red light, count the flashes. The number of pulses corresponds to a fault code listed in the manual. For example, three flashes typically indicate a gas supply problem, while five flashes often point to a temperature sensor fault.

If you don't have the manual handy, the error code is still decipherable. A steady red light usually means the unit has gone into a safety lockout after repeated failed ignition attempts. This happens when the gas hasn't reached the burner in time, often because the gas bottle is empty or the regulator has tripped.

You can reset a lockout by switching the unit off at the panel, waiting 30 seconds, and switching it back on. If it cycles through three lockouts, the system will stop and require a manual reset.

The basic rotary dial models work differently. These don't show codes; instead they use a single fault LED. A continuous red glow means a general fault, which could be anything from a failed igniter to a blocked flue.

In our experience, a yellow or orange light on older models indicates the unit is in electric mode, not a fault. Always check the manual for your specific model year, the flash patterns changed between generations.

Step-by-Step Troubleshooting: No Hot Water on Gas

Start with the simplest checks before you pull anything apart. Open the gas bottle valve fully, sometimes it gets turned off accidentally after a service. Check the gas regulator for a bypass valve; if it's stuck in bypass, the pressure drops and the burner won't light.

Most regulators have a small reset button on the underside; press it firmly. If you smell gas at any point, stop immediately and ventilate the area. Don't attempt to relight the burner until the leak is resolved.

If the gas supply is fine, switch the unit to gas mode and listen for the ignition spark. You should hear a distinct clicking sound for a few seconds. If you hear only a hum and no clicking, the igniter may be dirty or failed.

Remove the combustion chamber cover and inspect the electrode. Clean it with a fine emery cloth, and check the gap is about 3mm. Per manufacturer specs, the gap has to be consistent or the spark won't jump.

Next, check the flame sensor. This is a small rod next to the igniter. If it's covered in soot, the unit won't detect the flame and will shut down after ignition.

Clean both electrodes and try again. If the burner lights and then goes out after two seconds, the flame sensor is the prime suspect. If it never lights, you're dealing with a blocked gas jet or a faulty gas valve.

Both of those require a certified technician to service safely.

No Hot Water on Electric

Electric faults are usually simpler. First, confirm you have a solid 230V supply at the hookup point. Check the main breaker in your vehicle's consumer unit, the one marked "Water Heater" or "Mains." A tripped breaker is the most common cause we see in owner reports.

Reset it and try again. If it trips immediately, you have a short circuit in the heating element or the wiring; stop and call a professional.

If the breaker holds, check the power selector switch on the control panel. On the iNet X, you select between Gas, Electric, or Mixed mode. If it's set to gas only, the electric heater won't run, easiest miss in the book.

Switch to Electric or Mixed, and you should hear a faint hum from the element within a few seconds.

Now, locate the thermal cut-out. This is a small red reset button mounted on the tank, behind the bottom access cover. If the tank over-temperatures, this cut-out kills the power to the element.

Wait for the tank to cool down first, then press the red button firmly until you feel a click. Refit the cover and test. A thermal cut-out that trips repeatedly points to a faulty thermostat or a heavily scaled element, both of which require replacement.

When to Call a Professional

Some issues go beyond DIY. If you've confirmed gas supply and cleaned the electrodes but the burner still won't light, you likely have a faulty gas valve or a blocked jet, both require certified servicing. Likewise, a heating element that shorts out the breaker is not a simple fix; replacing it involves draining the tank and handling high-voltage wiring.

Carbon monoxide concerns are non-negotiable. If your Aquago produces a strong exhaust smell inside the vehicle or if you feel headaches or nausea while the heater runs, switch it off immediately and get the unit inspected before further use. These symptoms point to a flue blockage or a combustion chamber leak, both of which are dangerous.

Don't attempt to fix these yourself; a qualified RV technician with Truma certification is the right call.

Maintenance Tips to Prevent Future Faults

Prevention beats troubleshooting. At the start of each season, drain the water tank completely and flush it with fresh water to clear sediment. Scale buildup on the electric element is a leading cause of thermal cut-out trips; a descaling solution designed for RV water heaters, applied per the product instructions, keeps the element clear.

Check the pressure relief valve annually by lifting the lever briefly, if water doesn't flow out, the valve is stuck and should be replaced.

Inspect the anode rod, if your model has one. This sacrificial rod corrodes over time to protect the tank; inspect it yearly and replace it when it's half worn. Also, check the sealing of the combustion chamber door each time you open it; a poor seal allows exhaust gases to recirculate, which triggers the safety cut-out and reduces efficiency.

Finally, carry a spare gas regulator and a set of electrodes in your RV toolkit. These two parts account for a significant share of on-the-road gas faults, and swapping them is a 15-minute job with basic tools. Doing so turns a weekend-ruining breakdown into a minor detour.

Common Myths and Misconceptions

Let’s clear up a few things we hear repeatedly. Myth one: "The Aquago only works on gas." Wrong, every model in the series supports electric heating, either as standard or via an optional kit. Myth two: "You need to drain the tank for any fault." False; most electrical and gas faults are accessible through the front cover without draining a drop.

Myth three: "If the red light is solid, the unit is dead." Not necessarily; it often means a simple lockout that a power cycle fixes.

Another common misunderstanding: "A leaking pressure relief valve means the tank is cracked." In most cases, the valve has simply failed or has debris holding it open. Replacing the valve is a cheap, straightforward fix. The tank itself rarely fails unless it has been frozen, so don’t jump to the worst-case conclusion.

Model-Specific Notes: Aquago 4, 6, and 8

The Aquago series comes in three main capacities: the Aquago 4, 6, and 8. The number refers to the water capacity in liters. The troubleshooting steps above apply across the range, but there are a few differences worth noting.

The Aquago 4 is often paired with smaller vans and has a slightly lower heating output, so it may take longer to reach temperature. The Aquago 6 and 8 models feature a more powerful burner and a larger heat exchanger, which means they're more prone to scale buildup if you use hard water.

For the Aquago 6 and 8, check the drain valve, located at the bottom rear. It has a habit of leaking if the sealing washer dries out; a smear of silicone grease on the washer solves that. The larger models also have a separate pump for the hot water circulation, and if you hear a whining noise, the pump bearings may be dry.

A drop of food-grade lubricant on the shaft usually silences it.

None of the models have a user-serviceable anode rod, so don't plan on replacing that. Instead, focus on descaling the tank annually if you use electric mode regularly. A five-minute flush with a descaling solution keeps the element happy and the cut-out from tripping.

Conclusion

Getting your Aquago running again usually comes down to a few practical checks: power supply, gas flow, and the thermal cut-out. You've got the steps now, so work through them in order and don't skip the simple ones, the gas bottle valve being closed has caught more than one seasoned camper. If you hit a hard fault like a failed gas valve or a shorted element, don't hesitate to call a certified technician.

Your safety, and your wallet, are better off with a proper fix.

With regular maintenance, draining the tank, descaling the element, and checking the pressure relief valve, most Aquago units run for years without a hitch. Keep a spare regulator and electrode set onboard, and you'll handle the vast majority of roadside faults yourself. That's the kind of self-sufficiency that makes the lifestyle worth it.
