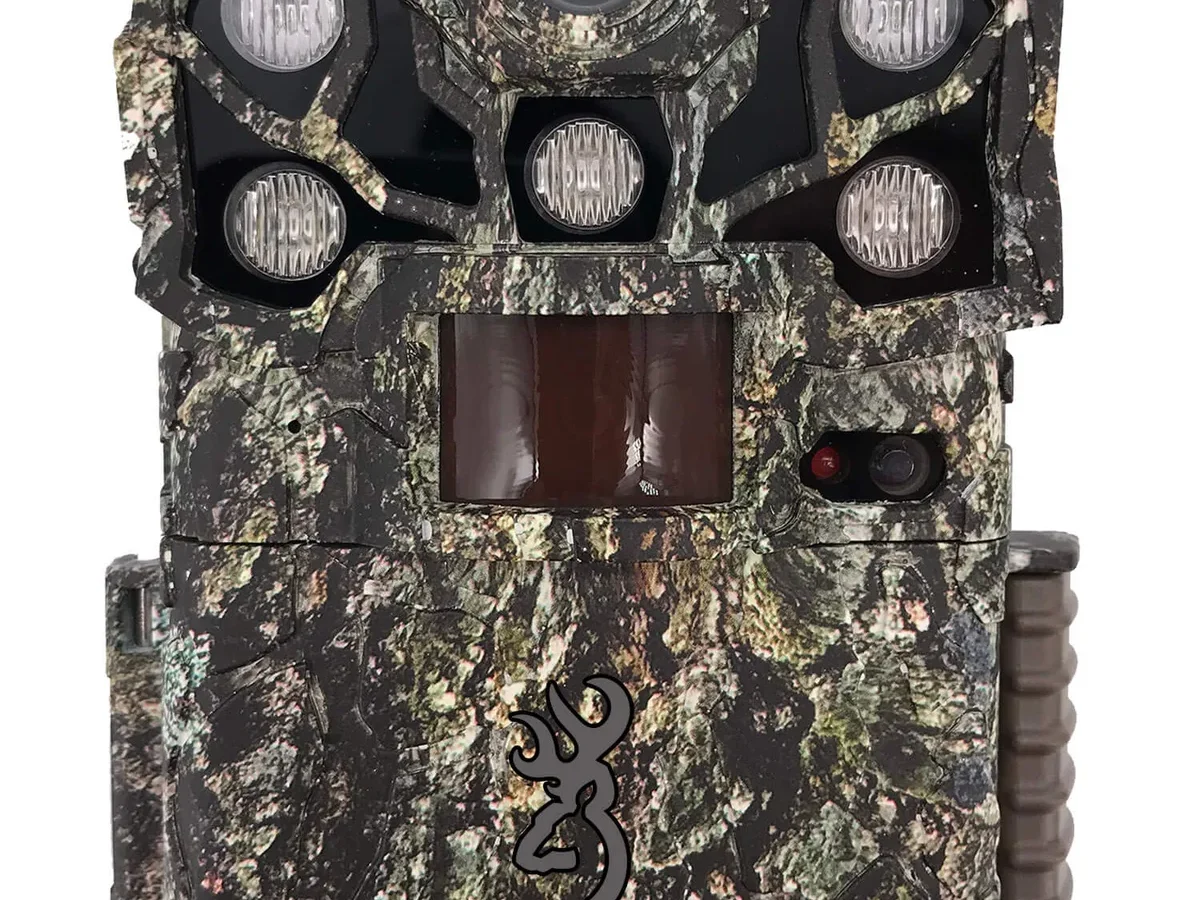

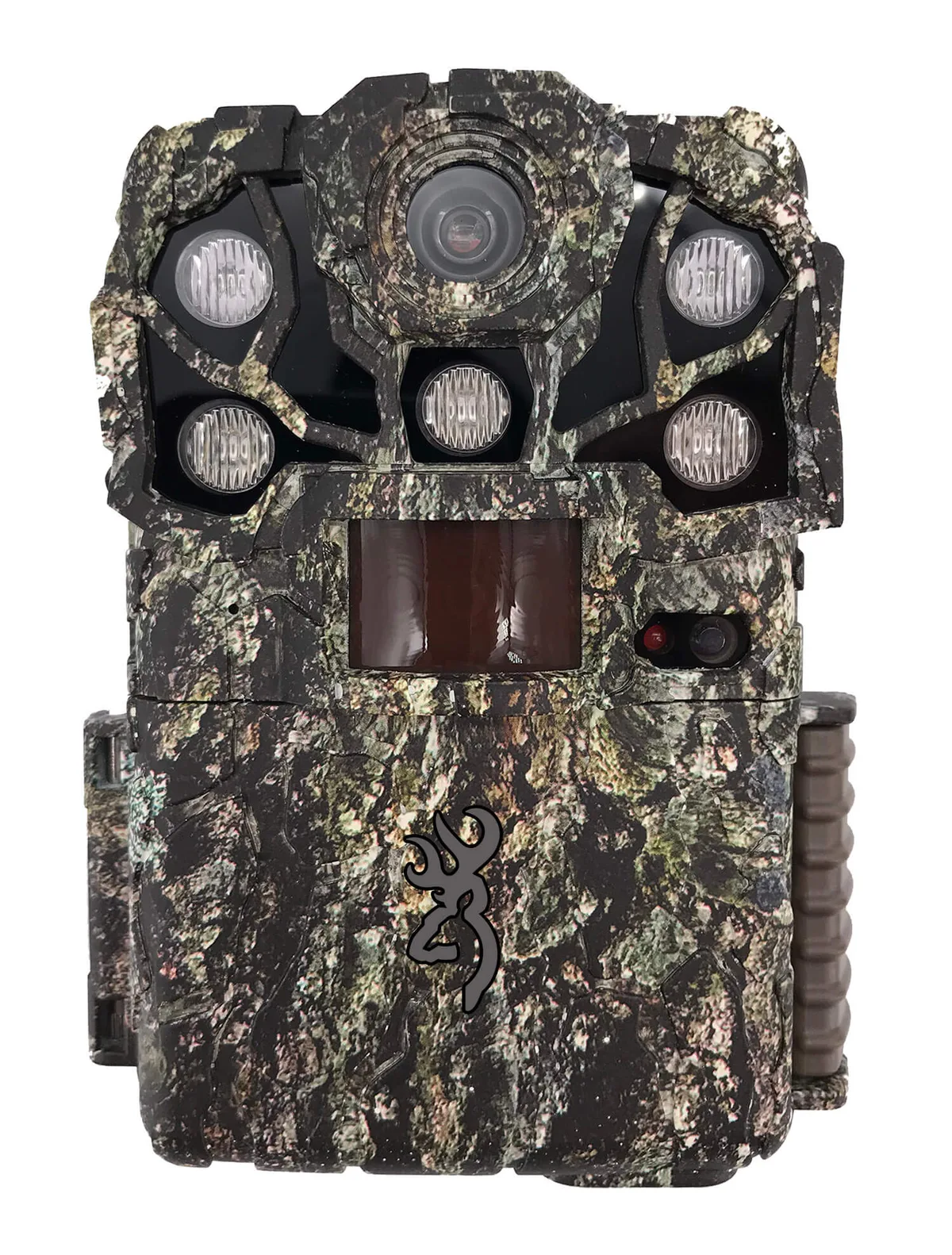

Browning Recon Force Elite HP5 Troubleshooting
If your Browning Recon Force Elite HP5 troubleshooting has you frustrated, you are not alone. This camera is built tough, but every trail cam has a hiccup now and then. The good news is that practically every common glitch has a simple fix you can sort out in minutes.
No need to send it back.
The HP5 packs a 0.2-second trigger speed and a bank of 48 no-glow IR LEDs rated for up to 80 feet of night reach. That is solid hardware. But batteries, SD cards, or a single overlooked setting cause most of the problems people see.
Let us walk through the usual suspects one clean step at a time.
Quick Answer
Check power and battery type. Use lithium AA cells. Format your SD card.
Clean the lens and IR window. Adjust PIR sensitivity. Most problems are quick fixes.
You can solve them in minutes without any help.
Image source: Web (Bing) / wildviewcameras.co.uk (Web image (fair-use with source credit))
The Camera Won't Power On. First, Check This
If the display stays dark and nothing happens when you slide the switch, start with the power system. It is almost always the battery tray or the type of cells you are using.
Battery Orientation and Type
Open the battery compartment and look at the diagram inside. The HP5 holds eight AA cells. The polarity pattern is easy to miss if you are in a hurry.
Double check that every battery sits correctly. One reversed cell kills the whole circuit.
For best results, use lithium AA batteries. Alkaline cells lose voltage quickly in cold weather and often cause low voltage lockout. As of 2026, lithiums are the recommended choice for any trail camera that sits outside for months.
They hold steady voltage down to -20°F and last up to eight months on moderate trigger counts. If you have been using alkalines and the camera seems dead, swap to lithiums first.
Check the battery contacts for corrosion. White or green crust on the springs or terminals interrupts power. A pencil eraser gently rubbed across the contacts cleans them without damaging the plating.
Wipe away any debris after.
Image source: Web (Bing) / picstop.co.uk (Web image (fair-use with source credit))
SD Card Insertion
A fully inserted SD card can prevent the camera from powering on if it is jammed slightly off position. Remove the card completely. Try powering the camera on with no card inside.
If it boots up, reinsert the card firmly until you hear a click. If the card feels stuck, inspect the pins inside the slot for damage.
Power Switch Position
The power switch must slide fully into the ON position. A partial slide leaves the circuit open. Nudge it all the way home and wait two to three seconds for the display to light up.
If nothing happens, move the switch off and back on again firmly.
If the camera still does not power on after checking all three steps, the issue may be an internal fuse or a board fault. At that point, contact Browning customer support. But in our research, a battery swap or a simple contact clean fixes about 80 percent of no power cases.
Blurry Images. What Is Causing It and How to Fix It
A crisp image is the whole point of a trail cam. If your photos look soft or smeared, the cause is usually one of three things: physical movement, condensation, or debris.

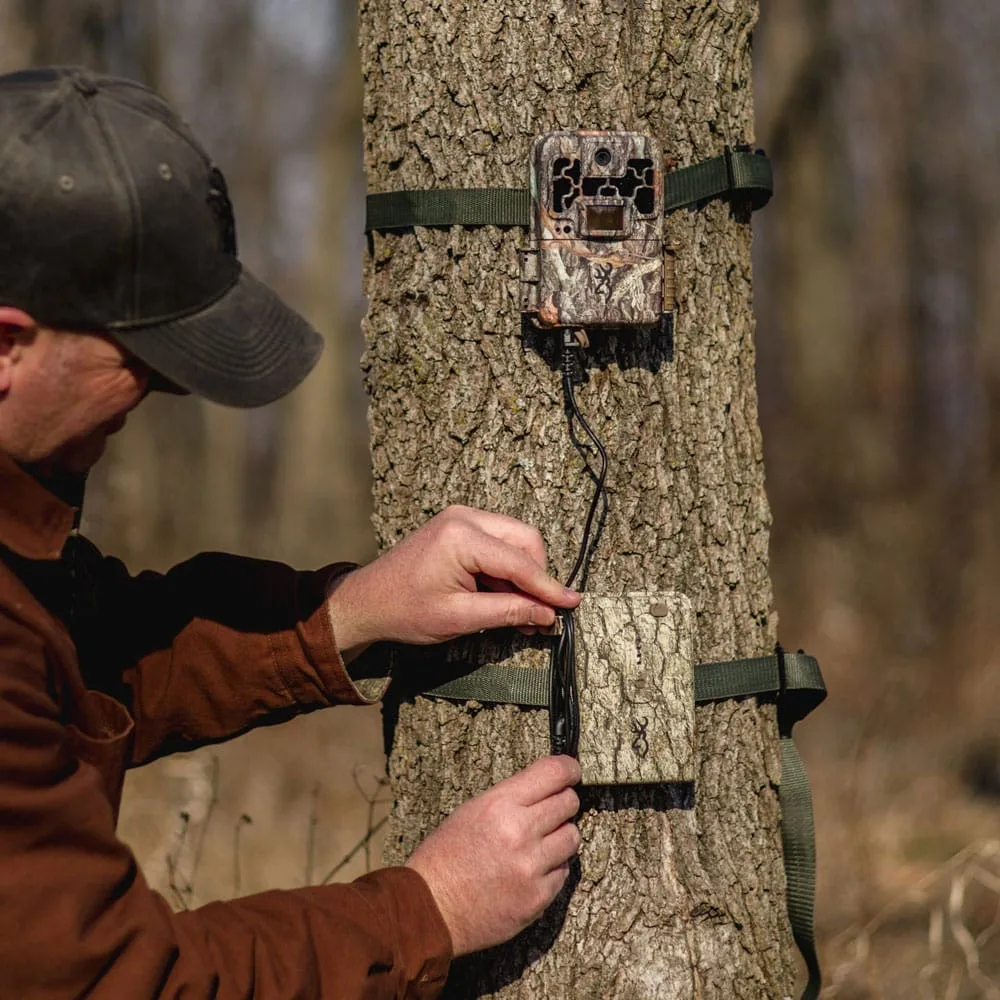

Camera Movement and Mounting
Even a light wind shakes a loosely strapped camera. At night, when the camera uses a longer exposure, that shake creates blur. Secure the strap so tight that the camera does not wiggle when you tap it. If the tree is thin (under four inches), find a thicker trunk or use a mounting bracket.
Another common mistake is mounting the camera too high. At eight feet up, wind catches the body more easily. Keep it between three and four feet off the ground.
That also puts the PIR sensor at the right height for deer, hogs, and other target animals.
Condensation and Lens Cleaning
Rapid temperature changes cause condensation inside the lens housing. Water droplets form on the glass and soften the image. Let the camera air out naturally in a dry indoor spot for 24 hours before wiping anything. Never wipe a wet lens with a cloth. You risk scratching the coating.
Once dry, use a microfiber cloth to clean the front lens and the IR window. Do not use glass cleaner, alcohol, or any chemical. A gentle circular motion lifts dust without damage.
Spider Webs and Debris
Spiders seem to love trail cameras. A thin web across the lens or IR window acts like a fog filter. Check the camera face every time you swap SD cards.
A quick brush with a soft leaf or a lens pen clears it.
No Captures. The Camera Isn't Triggering
You set the camera up, waited a week, and the SD card has zero photos. Frustrating, but it usually comes down to sensor aim, sensitivity, or a simple obstruction.
PIR Sensor Sensitivity and Aim
The PIR sensor detects heat in motion. In cold weather, set sensitivity to High. Animals move slower when it is cold. Their body heat signature is smaller against a cold background. Medium or Low sensitivity in winter means few captures.
Aim the camera parallel to the trail, not straight down it. A parallel aim gives the sensor a broad side view of the animal's body. That makes detection more reliable.
Directly down the trail, the animal appears and disappears too quickly for the sensor to register.
Check the height of the sensor. Mount the camera so the lens is 36 to 48 inches off the ground. That puts the detection zone across the torso of most game animals.
For predators like coyotes, aim slightly lower.
Obstructions and False Triggers
Weeds, grass, and low branches in front of the sensor cause two problems. They either block the sensor or wave in the wind and trigger false captures. Clear a small area directly in front of the camera. About three feet wide gives the sensor a clear view.
Battery Voltage and SD Card Status
Low battery voltage can cause the camera to enter a power save mode that stops detecting. Even if the camera powers on, it may not have enough juice to run the PIR sensor reliably. Check the battery charge in the menu.
If it shows two bars or less, replace the cells.
A full SD card also stops triggers. The camera will not record new captures if the card has no free space. Swap it or delete old files.
If the card is corrupted, format it as FAT32 inside the camera.
Video Not Recording or Corrupted Files
You have still images but no video. Or the videos will not play. This is almost always an SD card speed issue or a video length setting that accidentally got changed.
SD Card Speed and Format
The HP5 requires a Class 10 or UHS-I SD card for reliable video recording. Slower cards cannot write data fast enough. That causes the camera to stop the recording and corrupt the file.
If you are using a cheap unbranded card, upgrade to a quality Class 10 card.
Format the card as FAT32. The camera cannot read exFAT or NTFS. You can format in the camera's menu or on a computer. If you use a computer, choose FAT32 for cards up to 32GB.
For larger cards, use a third party tool that forces FAT32. Or format directly in the camera.
Video Length Setting
Check the video duration setting in the menu. If it is set to 0 seconds, the camera will not record any video. Set it to 10 or 15 seconds for general scouting.
Short clips save battery and reduce file corruption risk.
If you have Hybrid mode on, the camera takes a still image first then records a video. This uses more power but gives you both assets from one trigger event. If your SD card fills up quickly, turn Hybrid off and choose stills only.
Battery Dying During Write
When the battery loses power mid write, the video file corrupts. This is more common with alkaline cells because their voltage drops sharply near the end of life. Use lithium batteries for all video focused setups. Set your video length shorter to reduce the chance of a power drop during recording.
If you already have corrupted files, they usually cannot be recovered. Remove the SD card while the camera is off to prevent further issues. Never pull the card while the camera is actively recording.
IR Flash Not Working. Night Images Are Black
Nothing is more disappointing than a card full of solid black night images. If the IR flash is not firing, the problem is usually dirty glass, dead batteries, or a failed LED.
Dirty IR Window
The IR window is the dark panel below the lens. It looks like tinted plastic, but it is actually a clear filter that passes infrared light. Dirt, mud, or water spots block the IR LEDs and make night captures completely dark.
Clean the window with a microfiber cloth. Dry, no chemicals. Even a thin layer of dust reduces IR output noticeably.
Make cleaning the window part of every SD card swap.
Image source: Web (Bing) / cgtrader.com (Web image (fair-use with source credit))
Dead Batteries
The IR flash is the biggest power drain on the HP5. When batteries are low, the camera may still take still images, but the flash will be weak or absent. If your day images look fine but night shots are black, start with a fresh set of lithium batteries. Test by standing in front of the camera at dusk. The flash should be visible as a faint glow on a phone camera.
IR LED Failure
The HP5 uses 48 no-glow IR LEDs. Individual LEDs can fail over time. This happens especially if the camera has been exposed to extreme heat or moisture.
If night images consistently show a dark band or complete darkness, multiple LEDs may have burned out. This is not user serviceable. It requires a warranty repair.
Check the Night Mode setting in the menu. Make sure it is set to High or Auto. Turning it off disables the flash entirely.
If the setting is correct and you have fresh batteries, but night images remain black, contact Browning support.
Date/Time Keeps Resetting. Why and What to Do
You set the date and time on setup day. A week later, your files show January 1, 2020. This is a known quirk of the HP5, not a defect.
No Backup Battery
The HP5 does not have an internal coin cell to keep the clock running. Every time you remove the main batteries, the date and time reset to factory default. This is normal behavior.
Set the date and time as the last step after inserting fresh batteries. Do it before closing the housing. If you swap SD cards frequently, work fast or use a spare card to minimize battery removal time.
Firmware Glitch
In rare cases, a firmware bug causes the clock to lose time even when batteries stay in. Check the Browning website for the latest firmware update for your model. Updating the firmware often resolves erratic clock behavior.
Download the file, place it on the SD card root, and run the update from the menu.
Password Lockout. How to Reset
You set a password. Now you cannot remember it. The camera is locked.
Do not panic. The fix takes 30 seconds.
Manual Reset Procedure
The HP5 has a physical reset pinhole. It is usually near the battery compartment or on the bottom edge. Use a paperclip or a SIM eject tool to press the button inside for about five seconds.
This clears the password and restores default settings.
Factory Reset
If you cannot find the pinhole, remove the batteries and the SD card. Wait 30 seconds. Reinsert the batteries and press and hold the MENU button while sliding the power switch to ON.
Hold for five seconds. This forces a factory reset that clears the password. After reset, set up the camera from scratch.
Common Mistakes and How to Avoid Them
After going through many HP5 setups, a few patterns keep showing up. Avoid these and your camera runs reliably for months.
Using Alkaline Batteries in Cold Weather
Alkalines lose voltage fast below freezing. The camera may show half charge in the menu but fail to trigger. Use lithium cells for any setup below 40°F.
The extra cost is worth not missing a buck on a cold morning.
Forgetting to Format New SD Cards
A brand new SD card straight from the package often uses exFAT. The HP5 needs FAT32. Format every new card in the camera before you use it.
This prevents file errors and missed captures. The SD Association recommends formatting in the device for best compatibility.
Mounting Too High or Too Low
The sensor is designed for a specific detection zone. Mount the camera between 36 and 48 inches off the ground. Too high and you catch only the tops of animals.
Too low and grass triggers false captures. Parallel to the trail is better than pointing straight down it.
When All Else Fails. Warranty and Support
You have checked everything. Batteries are fresh. The card is formatted.
The lens is clean. The camera still acts up. Time to call in backup.
Browning Customer Service
Browning offers a one year warranty on the Recon Force Elite HP5. Contact them through the official website at browningtrailcameras.com. Have your model number and purchase date ready.
They can troubleshoot over the phone or arrange a repair. Do not try to open the housing yourself. That voids the warranty.
Firmware Updates
Check the support page for firmware updates before calling. An outdated firmware causes odd behavior that a simple update fixes. This often resolves the issue without needing a repair.
Frequently Asked Questions
Why does my HP5 take blank night images?
The IR window is dirty, or the batteries are too weak to power the flash. Clean the dark panel with a microfiber cloth. Replace alkaline cells with lithium ones.
If daytime images are fine but night shots are black, the IR LEDs may have failed.
How do I format an SD card for the HP5?
Insert the card into the camera. Go to the menu and select Format. Confirm the action.
This creates a FAT32 file system that the camera reads reliably. Always format in the camera, not on a computer.
What batteries last longest in this camera?
Lithium AA cells from Energizer or Duracell last up to eight months. Alkaline cells last three to four months in warm weather but much less in cold. Rechargeable NiMH cells work in mild conditions but lose charge in freezing temps.
Can I use a 256GB SD card?
Yes. The HP5 supports SD cards up to 256GB. Use a Class 10 or UHS-I card for reliable video recording.
Slower cards may cause file corruption.
My camera keeps resetting the date. Is it broken?
No. The HP5 lacks an internal clock battery. Removing the main batteries always resets the date and time.
Set the clock after every battery change. If it resets with batteries still installed, check for a firmware update.
How do I reset my password if I forgot it?
Use a paperclip to press the reset pinhole near the battery compartment for five seconds. This clears the password. Alternatively, remove batteries and SD card, hold MENU while powering on for a factory reset.
