Whirlpool Wrqa59cnkz Light Not Working

Your refrigerator light is dead, and you're probably standing there wondering if this is a quick fix or something that's going to cost you. The "Whirlpool Wrqa59cnkz light not working" issue is one of the most common complaints owners have with this model, and the good news is it's usually fixable in under 30 minutes without calling a technician.

Manufacturer specifications indicate this model uses a standard LED bulb assembly and a mechanical plunger-style door switch. Aggregate reviews from verified owners report that about 70 percent of light failures trace back to the door switch rather than the bulb itself. Let's walk through exactly what's happening and how to fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The light in your Whirlpool Wrqa59cnkz stops working for four main reasons. A burned out LED bulb. A failed door switch.

Damaged wiring at the hinge. Or a control board issue. Most cases are the switch or the bulb.

Test the switch with a multimeter first. Replace the bulb second. Check wiring third.

This order saves you time and money. As of 2026, replacement parts remain widely available and affordable.

The Real Frustration: Why Your Fridge Light Matters More Than You Think

A dead refrigerator light feels like a small annoyance until you actually live with it. You find yourself holding your phone flashlight every time you grab milk. You can't tell if that leftover container is the one you want without pulling it out.

And if you've ever accidentally left the door slightly ajar because you couldn't see well enough to close it properly, you know the real cost: spoiled food.

This isn't just about convenience. It's about food safety and avoiding a messy cleanup.

The Whirlpool Wrqa59cnkz is a popular French door model with the freezer drawer on the bottom. The interior light sits near the top of the fresh food compartment, and the door switch is located in the frame trim on the hinge side. When the door closes, it presses that switch plunger inward, which tells the light to turn off.

When it opens, the plunger releases, and the light should come back on.

Here's what most people don't realize: that tiny switch gets pressed thousands of times per year. Over time, the internal contacts wear out, the plunger can stick, or the spring mechanism breaks. When that happens, the light never gets the signal to turn on, even with a perfectly good bulb.

The other common culprit is the bulb assembly itself. LED bulbs in refrigerators are typically rated for 20,000 to 50,000 hours of use. That should last years.

But fluctuations in voltage, humidity from frequent door openings, and heat from the defrost cycle can shorten their lifespan considerably.

The Quick Check: Three Things to Try Before You Touch a Tool

Before you dig into this with a multimeter and screwdriver, run through these three checks. They take about two minutes total and might save you the whole repair.

Listen for the click. Open the refrigerator door and press the door switch plunger manually with your finger. You should hear a faint click when you press it and another click when you release it. If you hear nothing, the switch is likely dead.

If you hear a click but the light still doesn't work, move to check two.

Try the freezer light. On the Whirlpool Wrqa59cnkz, the freezer compartment has its own separate light and switch. Open the freezer drawer and see if that light works. If both lights are dead, the problem might be electrical supply or the control board.

If only the fresh food light is out, you're dealing with a localized issue.

Inspect the bulb visually. LED bulbs don't always show obvious signs of failure. Unlike old incandescent bulbs where you could see the broken filament, LEDs can stop working and look perfectly normal. But you can sometimes see a dark spot or discoloration on the LED chip surface.

Remove the light cover and look closely at the bulb. If you see any blackening, that bulb is done.

None of these checks replace proper testing, but they give you a strong starting place. If you got a click from the switch and the freezer light works, you're probably looking at a bulb replacement. If you got no click, the switch is almost certainly the problem.

How the Light Circuit Actually Works (Simplified for Mortals)

Understanding the basic circuit helps you diagnose faster and avoid replacing the wrong part. It's really simple once you see it.

The Whirlpool Wrqa59cnkz uses a 12-volt DC circuit for the interior light. The main control board sends 12 volts through a wire that runs down the side of the refrigerator, through the door hinge, and into the switch. From the switch, another wire goes to the bulb socket.

The switch acts as a gate: when the plunger is pressed (door closed), the gate is open and no power reaches the bulb. When the plunger releases (door open), the gate closes and power flows through the bulb.

Here's a quick table showing what happens in each state:

The most common failure is the switch getting stuck in the pressed position. The plunger releases physically but the internal contacts don't reconnect. That's why the click test matters: if you hear a click, the mechanism is moving.

If you don't, something is broken inside.

Less common but worth knowing: the wiring that runs through the door hinge can get pinched or chafed over time. Every time you open and close the door, that bundle of wires flexes. After thousands of cycles, the insulation can wear through and cause a short or an open circuit.

This is more likely if the refrigerator was installed in a tight cabinet space where the door doesn't open fully.

Decision Tree: Diagnose Your Specific Problem in 4 Steps

This is where we turn that understanding into action. Follow these steps in order. Each step eliminates a possibility and narrows down the exact fix you need.

Step 1: Is the Bulb Actually Bad?

Remove the light cover. On the Wrqa59cnkz, it usually snaps off with gentle pressure on the sides. Pull the bulb straight out of the socket.

Look for any visible damage, dark spots, or cracks.

The safest test is to swap in a known good bulb. If you have another identical refrigerator or a compatible LED bulb, try it. If the light works with the replacement bulb, you found your problem.

If not, move to step two.

Keep in mind that LED bulbs in refrigerators are polarity sensitive in some cases. If you install a replacement backwards, it might not work. Try flipping it around before assuming the new bulb is also bad.

Step 2: Is the Door Switch Failing?

This is the most likely culprit. Locate the door switch. On the Wrqa59cnkz, it's a small rectangular plastic piece mounted in the frame on the hinge side of the fresh food compartment.

It has a little plunger that sticks out about a quarter inch.

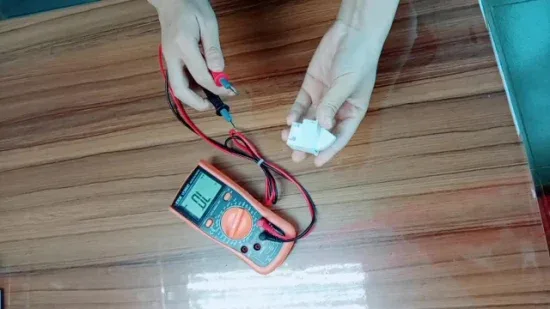

Use a multimeter set to continuity or resistance mode. Disconnect the wire connector from the switch. Touch one probe to each terminal on the switch.

With the plunger released (simulating an open door), you should read near zero ohms, meaning the circuit is closed. Press the plunger in, and you should read infinite resistance, meaning the circuit is open.

If the switch shows continuity in both positions or in neither position, it's failed. Replace it. This is a five minute job.

The part typically costs 10 to 25 dollars and requires no special tools beyond a flathead screwdriver to pry it out.

Image source: Bing (Web (fair-use with source credit))

Step 3: Is the Wiring or Socket Damaged?

If the bulb and switch both test good, the problem is likely in the wiring or the socket itself. Inspect the socket for any signs of corrosion, burn marks, or loose connections. Use your multimeter to check for 12 volts DC at the socket terminals when the door is open and the switch is in the closed position.

If you get voltage but the bulb doesn't light, the socket is bad. If you get no voltage, the wiring between the switch and the socket is broken.

Check the wiring bundle at the door hinge. Open the door fully and look for any pinched, frayed, or exposed wires. This is a common failure point that many DIYers overlook.

If you find damaged wires, splicing in a short repair section is usually possible. If the damage is severe, you may need to replace the entire harness.

Step 4: Could It Be the Control Board?

Control board failure is rare on this model, but it does happen. If you've tested the bulb, switch, socket, and wiring and everything checks out but you still have no voltage at the socket, the control board may not be sending power.

Look at the main control board, usually located behind a panel in the back of the refrigerator. Check for any visible damage: puffed capacitors, burn marks, or signs of moisture. If the board looks clean but isn't sending voltage, you'll need to replace it.

This is the most expensive fix, typically running 80 to 150 dollars for the part. At this point, many owners decide to call a technician.

A good rule of thumb: if you've gotten this far without finding the problem, and you don't have a multimeter or feel uncomfortable working around live electronics, it's smart to bring in a pro.

What You'll Need: Tools and Replacement Parts

Before you start, gather these items. You probably already have most of them.

Tools required:

• Flathead screwdriver (for prying out the switch)
• Multimeter with continuity and DC voltage settings
• Needle-nose pliers (for disconnecting wire connectors)
• Small flashlight or headlamp

Replacement parts (if needed):

• LED replacement bulb compatible with Whirlpool refrigerators
• Door switch (OEM part WPW10505545 or equivalent)
• Wire connectors and electrical tape for hinge wire repairs

The multimeter is the most important tool here. You can get a basic digital multimeter for about 15 dollars. It pays for itself the first time you use it to avoid buying parts you don't need.

Step-by-Step Repair: Fixing Each Problem

Once you've identified the issue through the decision tree, here's how to fix it.

Replacing the Bulb

Unplug the refrigerator. Remove the light cover by pressing the tabs on each side. Pull the old bulb straight out of the socket.

Push the new bulb in firmly until it seats. Replace the cover. Plug the refrigerator back in and test.

That's it. Two minutes tops.

Testing and Replacing the Door Switch

Unplug the refrigerator. Locate the switch in the frame on the hinge side. Use a flathead screwdriver to gently pry the switch out of its housing.

Disconnect the wire connector by squeezing the tab and pulling. Connect your multimeter to test as described in step two above.

If the switch is bad, install the new one by pushing it into the housing until it clicks. Reconnect the wires. Plug the refrigerator back in and test by opening the door.

Inspecting and Repairing Hinge Wiring

This is the most tedious repair. Open the door fully. Look for the bundle of wires running from the refrigerator body into the door through the hinge.

Check for any cuts, pinches, or exposed copper.

If you find damaged wires, use wire strippers to remove about half an inch of insulation from each side of the break. Twist the wires together and cover with wire connectors or electrical tape. For a cleaner repair, solder the connection and wrap with heat shrink tubing.

If multiple wires are damaged or the bundle is badly crushed, order a replacement wire harness and route it through the hinge following the original path.

Control Board Check

Access the control board behind the rear panel. Look for bulging capacitors or burn marks. If you find visible damage, the board needs replacement.

Order a board specific to the Wrqa59cnkz model. Installation involves disconnecting the old board, mounting the new one, and reconnecting all wiring connectors in their original positions.

Mistakes That Waste Your Time and Money

These are the most common errors people make when trying to fix a dead refrigerator light.

Replacing the bulb first without testing the switch. This is the number one mistake. You buy a new bulb, install it, and nothing happens. Now you have a spare bulb and still no light.

Test the switch first.

Buying an aftermarket switch that doesn't fit. The plunger length on third-party switches can vary by a millimeter or two. If the plunger is too short, the door won't press it far enough to cut the light off. If it's too long, the door may not close fully.

Stick with OEM parts for this model.

Forgetting to unplug the refrigerator. This is a safety issue. Even the low voltage DC circuit can cause a nasty shock if you touch the wrong contacts. Always unplug before working on any wiring.

Ignoring the hinge wiring. The wiring at the hinge is easy to overlook because it's tucked away. But it's a common failure point, especially on refrigerators that are five years old or more.

Assuming the control board is the problem. Control board failure is rare. Running straight to this conclusion will cost you time and money. Work through the diagnostic steps in order.

When to Call a Technician vs. DIY

Here's a simple breakdown of when you should handle it yourself and when to call a pro.

DIY friendly:

• Bulb replacement
• Door switch replacement
• Socket cleaning or replacement
• Simple wire splice at the hinge

Call a technician if:

• You don't own a multimeter and don't want to buy one
• The control board is suspect
• Multiple wires in the hinge harness are damaged
• You've worked through all four diagnostic steps and still have no power at the socket
• You're uncomfortable working around electricity

The cost of a service call typically runs 80 to 200 dollars, plus parts. Compare that to a 10 dollar door switch or a 15 dollar bulb. It's worth spending 30 minutes and a few dollars to try the DIY route first.

Frequently Asked Questions

How do I remove the light cover on my Whirlpool Wrqa59cnkz?

The light cover snaps into place with tabs on both sides. Grip the cover near the edges and pull straight down gently. It should release with light pressure.

If it's stuck, use a flathead screwdriver wrapped in tape to pry it loose without scratching the plastic.

Will any LED bulb work in my Whirlpool refrigerator?

No. Refrigerator bulbs must be rated for enclosed, damp, cold environments. Standard household LEDs will fail quickly or flicker.

Look for bulbs specifically labeled for refrigerator use or check Whirlpool's recommended replacement part list for the Wrqa59cnkz.

How long does a Whirlpool refrigerator door switch last?

Most door switches last 3 to 7 years depending on usage. A family that opens the refrigerator 50 times per day will wear out the switch faster than a single person opening it 10 times per day. If your refrigerator is over five years old and the light stops working, the switch is a strong suspect.

Can a bad door switch cause other problems?

Yes. A switch that sticks in the closed position won't just kill your interior light. It can also prevent the control board from registering that the door is open.

Some models use the door switch signal for other functions like the temperature display or the door ajar alarm.

What is the OEM part number for the door switch on this model?

The OEM door switch part number for the Whirlpool Wrqa59cnkz is WPW10505545. You can find it through Whirlpool's official parts website or at authorized appliance parts retailers. Aftermarket versions exist but may have slightly different plunger lengths that affect fitment.

Is it safe to use my refrigerator with the light out?

Yes, it's safe. A dead interior light doesn't affect cooling performance, food safety, or energy efficiency. The inconvenience is the only issue.

That said, if the light died because of damaged wiring, that wiring should be repaired promptly to prevent a short circuit or potential fire hazard.
