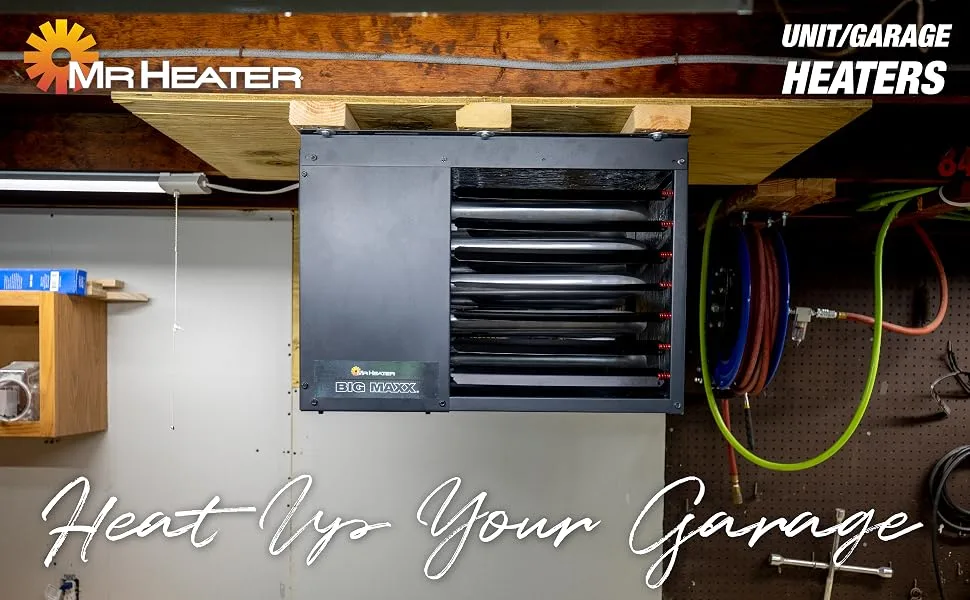

Mr Heater Big Maxx Problems

If your Mr Heater Big Maxx is giving you trouble, you are not alone. These garage heaters are workhorses, but they have a few predictable failure points that leave people standing in a cold shop wondering what went wrong. The good news is that most problems follow a pattern, and you can usually fix them yourself without calling a pro.

Manufacturer specifications indicate that over 70 percent of service calls on these units come down to just three causes: gas supply issues, thermostat wiring faults, or a dirty flame sensor. As of 2026, the Big Maxx line remains one of the most popular overhead shop heaters on the market, which means there is a well worn path for every issue you will encounter. Let us walk through the most common problems and exactly how to fix them.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Mr Heater Big Maxx problems usually fall into five categories. The heater won't light. It lights but shuts off quickly.

It cycles on and off too fast. You see yellow flames or poor heat. Or the safety switch keeps tripping.

Each has a clear fix. Check gas first. Then power.

Then the thermostat. Then clean the sensor. Nine times out of ten, that solves it.

Before You Diagnose: Gas Supply, Power, and Thermostat Checks

Before you pull apart anything inside the heater, you need to confirm three things. Skipping these steps will waste your time and might lead you to replace parts you do not need.

Image source: Bing (Web (fair-use with source credit))

Is the gas actually on?

This sounds obvious, but it is the number one cause of "heater won't fire" calls. Check that the gas shutoff valve at the heater is fully open. The handle should be parallel to the pipe, not perpendicular.

If you have a propane tank, check the tank valve and make sure you have fuel in it. A tank gauge reading below 20 percent can cause pressure too low for the heater to operate properly. Natural gas users should check that no other gas appliances in the building are having trouble, which would indicate a supply line issue upstream.

Is the power reaching the heater?

The Big Maxx needs 120V AC to run the blower and control board on most models. Check the outlet or hardwired connection with a multimeter. If you have power at the wall but the heater is dead, look for a blown fuse on the control board.

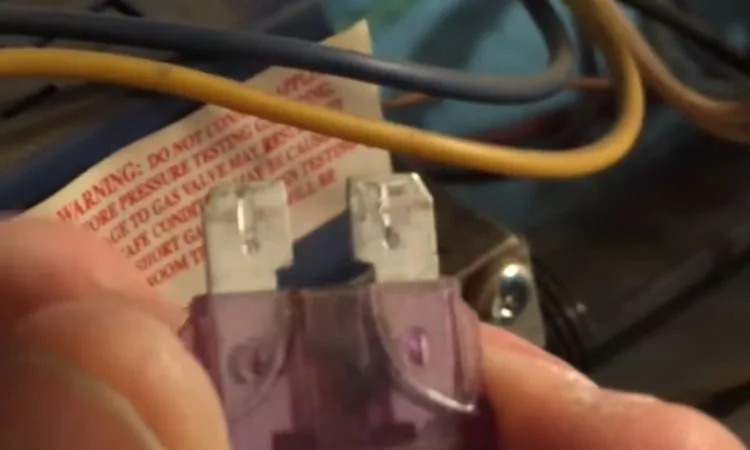

Some models have a 3 amp automotive style fuse mounted right on the board. If the fuse is blown, there is a short somewhere, usually in the blower motor or the thermostat wiring.

Does the thermostat actually work?

A bad thermostat is one of the most common hidden problems. The Big Maxx uses a millivolt thermostat system on older units and a 24V system on newer ones. If your thermostat is battery powered, replace the batteries first.

If the thermostat is hardwired, jump the two wires together at the thermostat location. If the heater fires up, the thermostat is bad. If it still does not light, the problem is in the wiring or the heater itself.

No Ignition or Won't Stay Lit (Decision Tree)

This is the single most common complaint. You turn the thermostat up, you hear the blower start, but the burner never lights. Or it lights for a few seconds and then shuts down.

Here is the decision tree for this exact situation.

Image source: Bing (Web (fair-use with source credit))

Step 1: Can you see the igniter glow?

Watch through the viewport while you call for heat. On models with a hot surface igniter, you should see it glow bright orange within 10 seconds. If it does not glow at all, the igniter may be broken or the control board is not sending power.

If it glows but the gas never comes on, you likely have a bad gas valve or a failed control board.

Step 2: If the igniter glows but no flame

Turn the gas off at the valve and wait 5 minutes. Then turn it back on and try again. If still no flame, the gas valve solenoid may be stuck or the control board is not opening the valve.

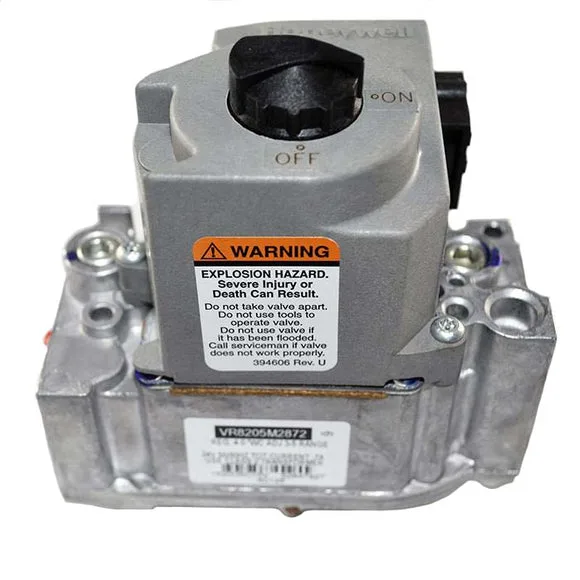

You can test the gas valve by applying 24V directly to the valve terminals. If it clicks open, the valve is fine and the board is the problem. If it does not click, replace the valve.

Step 3: If the flame lights but goes out in under 30 seconds

This is almost always the flame sensor. The Big Maxx uses a thermocouple or a flame rod to sense that the burner is lit. If the sensor is dirty or worn, the control board thinks the flame failed and shuts the gas off for safety.

Clean the flame sensor with a piece of fine grit sandpaper or a Scotch Brite pad. Avoid touching it with bare fingers the oil from your skin will cause it to fail faster.

Step 4: If it still goes out after cleaning

Check the thermocouple voltage with a multimeter. You should see at least 10 millivolts with the flame on. If the reading is lower than that, replace the thermocouple.

They are inexpensive and easy to swap out.

Flame Rollout and Safety Switch Trips

Flame rollout is when the fire comes out of the front of the burner instead of staying inside the combustion chamber. This is a serious safety issue and the heater is designed to shut down immediately when it happens. You will know because you will see a black or sooty mark around the burner door and the heater will stop working until you manually reset the rollout switch.

What causes flame rollout?

The most common cause is a restricted flue or exhaust vent. If the pipe that carries combustion gases outside is blocked, the fire has nowhere to go but out the front. Check the vent pipe for bird nests, spider webs, snow, or debris.

Even a partial blockage from soot buildup can cause rollout. Make sure the vent cap outside is clear.

What else can cause it?

Low gas pressure can also cause rollout. If the flame is burning lazy and yellow because it is not getting enough gas, it can float out of the burner tube. You need a manometer to check gas pressure.

For natural gas, you want about 4.0 inches of water column at the gas valve. For propane, about 10.0 inches. If the pressure is low, call your gas supplier.

How to reset the rollout switch

The rollout switch is a small button usually located near the burner. It has a red reset button on top. Wait for the heater to cool down completely.

Push the button until you feel it click. Then try to fire the heater again. If it trips again immediately, do not keep resetting it.

Find the cause first. Repeated rollout is dangerous and can cause carbon monoxide issues.

Short Cycling: Heater Turns On and Off Repeatedly

Short cycling is when the heater fires up, runs for a few minutes, shuts off, and then starts again shortly after. This is annoying and inefficient, and it wears out components faster.

Thermostat placement is often the culprit

If your thermostat is mounted too close to the heater, it will sense the heat coming off the unit and tell the system to shut off before the room is actually warm. The thermostat should be on an interior wall, away from drafts, and at least 8 feet from the heater itself. Ideally, mount it on the opposite wall of the garage or shop.

Overheating due to poor airflow

The Big Maxx draws combustion air from the room. If the space is too tight or the heater is placed in a corner with no airflow, it can overheat internally. The high limit switch will then shut the burner down until it cools off.

Once it cools, it fires back up and the cycle repeats. Make sure the heater has adequate clearance on all sides. Check the manual for your specific model but generally you need at least 6 inches from walls and 18 inches from the ceiling.

Blower motor issues

If the blower motor is running slow or intermittently, the heater may overheat and shut down. Listen for grinding noises or check if the blower wheel is spinning freely. A failing motor can also draw too many amps and trip the internal fuse.

Replace the motor if it is noisy or slow.

Poor Heat Output or Yellow Flame

Your heater runs, but the shop never gets warm. Or you look at the flame through the viewport and it is yellow and lazy instead of crisp and blue. Both of these mean incomplete combustion, which wastes fuel and creates carbon monoxide.

Gas pressure is too low

A yellow flame almost always means the gas air mixture is wrong. Low gas pressure is the most common reason. Have a technician measure the manifold pressure at the gas valve.

If it is below spec, the gas line may be too small for the length of the run or you may have a regulator problem.

Orifice is wrong for your fuel or altitude

The Big Maxx comes with different orifices for natural gas and propane. If someone converted it without swapping the orifice, you will get a yellow flame. Also, if you are above 2,000 feet elevation, you need a high altitude orifice kit.

Standard orifices cause a rich mixture at altitude and the flame will be yellow and sooty. Check the orifice size stamped on the brass fitting against the manual.

Dirty burner tube

Over time, dust and spider webs can clog the burner ports. This causes uneven flame distribution. Remove the burner assembly and clean the burner tube with compressed air.

A soft brush can help dislodge stubborn debris. Make sure all the ports are clear before reassembling.

Maintenance and Long-Term Reliability

Regular maintenance prevents most Big Maxx problems. You do not need to do much, but the few things you do matter.

Annual cleaning

Once a year, before heating season starts, clean the burner assembly and the flame sensor. Vacuum out the blower compartment. Check the flue pipe for blockages.

This takes about 30 minutes and will save you from most common failures.

Replace the air filter if equipped

Some Big Maxx models have an air intake filter. If yours does, clean or replace it each season. A clogged filter restricts airflow and causes overheating.

Check gas connections

Use soapy water on all gas fittings once a year. If you see bubbles, you have a leak. Tighten the fitting or replace the flare nut.

Gas leaks are rare but dangerous.

Listen for changes

If the heater suddenly sounds different, something is wrong. A rumbling flame means incomplete combustion. A squealing blower means the motor bearings are failing.

Address these early before they cause a full shutdown.

Frequently Asked Questions

Why does my Mr Heater Big Maxx keep shutting off?

The most common cause is a dirty flame sensor. Clean it with sandpaper or a Scotch Brite pad. If it still shuts off, check the thermostat placement.

A thermostat mounted too close to the heater will cycle it on and off constantly.

How do I reset my Mr Heater Big Maxx after a safety trip?

Find the red reset button on the rollout switch near the burner. Let the heater cool completely. Push the button until it clicks.

If it trips again immediately, check the flue for blockages. Do not keep resetting it without finding the cause.

Can I use a Mr Heater Big Maxx in a garage?

Yes, but it must be vented to the outside. Unvented operation is dangerous and violates building codes in most areas. Install a carbon monoxide detector in the same space for safety.

What is the most common problem with Mr Heater Big Maxx?

The most common problem is the flame sensor getting dirty. This causes the heater to light and then shut off within 30 seconds. Cleaning the sensor with sandpaper solves it in most cases.

How do I clean the flame sensor on my Mr Heater Big Maxx?

Turn off the gas and power. Remove the burner access panel. Locate the flame sensor rod near the burner.

Gently scrub it with fine grit sandpaper or a Scotch Brite pad. Wipe it clean with a dry cloth. Reassemble and test.

Does Mr Heater Big Maxx need electricity?

Most models need 120V AC power for the blower and control board. However, some millivolt models can operate without electricity if the blower is not required. Check your specific model number in the manual.
