Samsung Refrigerator Error Code 22c

Your Samsung refrigerator just flashed error code 22c, and now you are staring at a freezer that is slowly warming up. That blinking code is not a random glitch. It is your refrigerator telling you the defrost system has failed.

The longer you wait, the more ice builds up on the evaporator coils. Eventually, that ice blocks airflow completely, and your food starts to thaw.

Manufacturer specifications indicate the defrost cycle runs every 6 to 12 hours depending on the model. It melts accumulated frost before it becomes a problem. When error 22c appears, that cycle has stopped working.

As of 2026, this remains one of the most common error codes across Samsung French door and side-by-side refrigerators. The good news is it is usually fixable in under an hour with a basic multimeter and a screwdriver. Let us walk through what is actually happening and how to get your fridge back to normal.

Quick Answer

Error code 22c means the defrost system is faulty. The refrigerator cannot melt frost off the evaporator coils. Ice builds up.

Airflow stops. The freezer loses cooling power.

The most common cause is a failed defrost sensor, also called a thermistor. The second most common is a burned-out defrost heater. The main control board is rarely the problem.

You can diagnose and fix this yourself with a multimeter and basic tools. Most repairs cost under $50 in parts.

What Error Code 22c Actually Means (And What It Does Not)

Error code 22c is a defrost system failure notification. It is not a compressor failure. It is not a refrigerant leak.

It is not a main board that needs replacing. The refrigerator's control board detected that the evaporator coil temperature did not rise during the defrost cycle, so it assumes something in the defrost circuit is broken.

Samsung uses two similar codes that people often confuse. Error 22c points to the defrost sensor or heater circuit. Error 22e points to a communication fault between the main board and the display.

If you see 22e, do not follow the same troubleshooting steps.

This code appears most often on Samsung French door refrigerators with the Twin Cooling Plus system. Models with bottom-mount freezers that use a single evaporator in the freezer compartment are also common offenders. You will find the error on the display panel or as a flashing red LED pattern depending on your model year.

Image source: Bing (Web (fair-use with source credit))

Why This Error Puts Your Food at Risk

Here is what happens inside your refrigerator when error 22c appears. The evaporator coils sit behind the back panel of the freezer. They get cold.

Moisture from the air freezes onto those coils. Under normal operation, a defrost heater turns on every few hours to melt that frost into water that drains away.

When the defrost system fails, that frost never melts. It keeps building. After 24 hours, you may have a quarter inch of ice.

After 48 hours, that ice can reach half an inch. Airflow through the coils is severely restricted. The freezer struggles to stay at 0°F.

By 72 hours, freezer temperatures can rise above 20°F.

Food spoilage accelerates dramatically above 40°F in the refrigerator section and above 10°F in the freezer. USDA guidelines recommend keeping freezers at 0°F or below for long-term food storage. The refrigerator compartment should stay between 35°F and 38°F.

If your digital thermometer shows numbers outside those ranges and error 22c is on the display, you need to act quickly.

The hidden danger is that the refrigerator compartment may still feel cool. Many Samsung models route cold air from the freezer into the fridge. If the freezer coils ice over, both compartments lose cooling, but the fridge warms up slower.

By the time you notice milk going sour in the door, the freezer may already be thawing.

The Three Most Common Culprits (Ranked by Likelihood)

Image source: Bing (Web (fair-use with source credit))

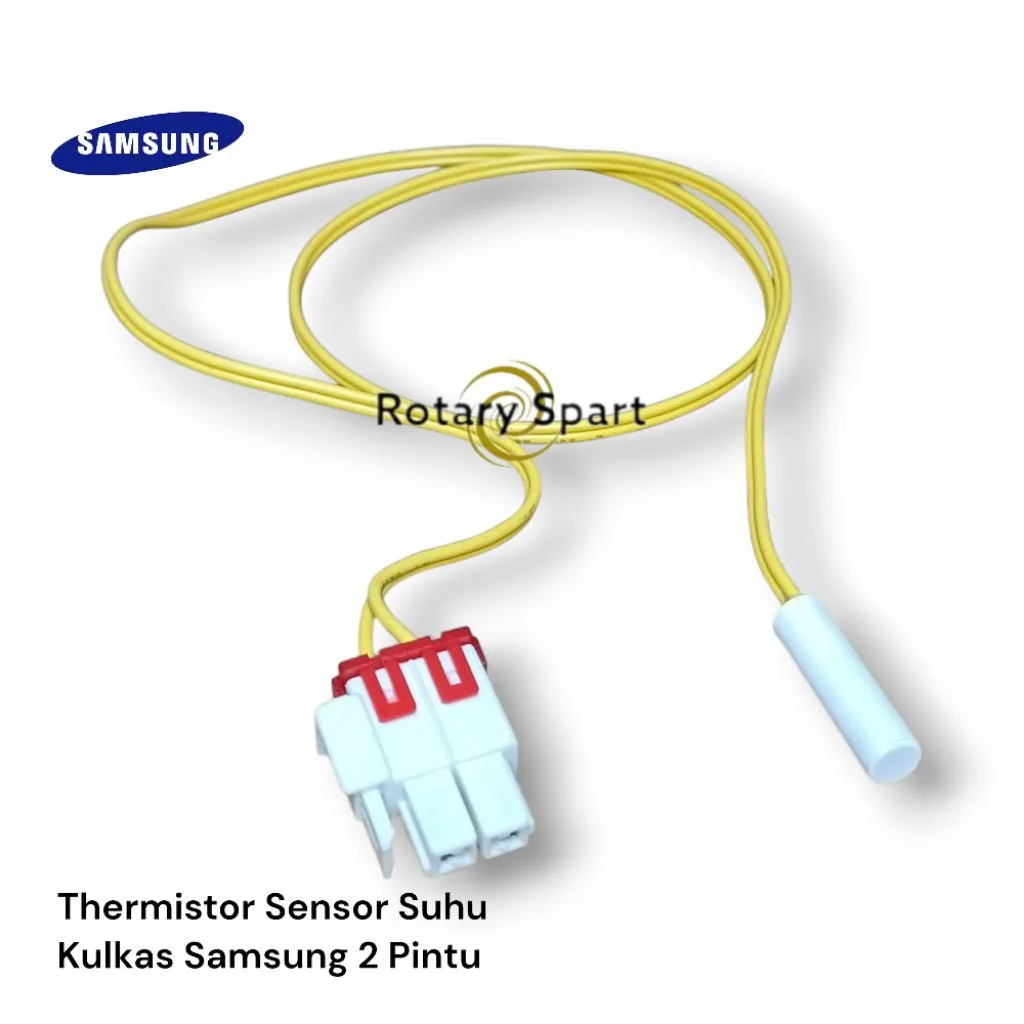

Defrost sensor. This is a small plastic-tipped thermistor clipped onto the evaporator coil. Its job is to tell the control board the coil temperature. When the sensor fails, it either reads a constant temperature or reports a value outside the expected range.

The control board sees that the coil never warmed during the defrost cycle and throws error 22c. In our research across repair forums and service technician reports, this part fails more than any other in the defrost system.

Defrost heater. This is a metal rod that runs through the evaporator coil fins. It glows red hot during the defrost cycle to melt frost. Over time, the heater can burn out or develop a crack in the glass coating.

A burned-out heater breaks the circuit completely, and the control board detects no current flow during the defrost cycle.

Main control board. This is the brain of the refrigerator. It sends power to the defrost heater and reads data from the sensor. In rare cases, a relay on the board fails or a solder joint cracks.

Many DIYers replace the board first because it looks intimidating, only to find the sensor was the real problem all along.

Step-by-Step Diagnosis: How to Pinpoint the Exact Fault

You need a digital multimeter set to resistance mode, a nut driver or hex set to remove the back panel, and a screwdriver. Unplug the refrigerator before you open any panel. Wait five minutes for the capacitors to discharge.

Step 1: Access the evaporator coils. Remove all food and freezer drawers. Unscrew the back panel inside the freezer compartment. You will see the evaporator coil covered in frost if the error has been active for more than a day.

Do not chip at the ice with a screwdriver. You can puncture the coil.

Step 2: Test the defrost sensor. Locate the small plastic sensor clipped onto the top loop of the evaporator coil. It has two wires leading to a connector. Disconnect the sensor from the wiring harness.

Set your multimeter to ohms. Touch the probes to the two sensor terminals. At 32°F, the sensor should read between 15,000 and 20,000 ohms.

If you get infinite resistance, the sensor is open and needs replacement.

Step 3: Test the defrost heater. The heater is the metal rod passing through the coil fins. Disconnect its two-wire connector. Measure across the heater terminals.

A good heater reads between 85 and 120 ohms. Infinite resistance means the heater is burned out.

Step 4: Check the bi-metal thermostat. This small disc sits on the evaporator coil near the heater. It acts as a safety cutoff. At temperatures below approximately 45°F, it should read zero ohms.

Above 45°F, it opens. If the thermostat remains open at room temperature, replace it.

Step 5: Inspect for visible damage. Look for burnt connectors, melted wire insulation, or corrosion at any of the connection points. Moisture can cause corrosion that blocks the electrical circuit even when the component itself is good.

Image source: Bing (Web (fair-use with source credit))

Step 6: Confirm with a forced defrost test. Reconnect everything except the back panel. Plug the refrigerator back in. Enter the service mode using your model-specific button sequence, typically pressing Power Freeze and Power Cool simultaneously for 8 seconds.

Select the forced defrost option. The heater should begin glowing within two minutes. If it does not, and the sensor and heater test good, then the main control board is the issue.

How to Fix Error Code 22c Yourself

Once you have identified the faulty component, the actual repair is straightforward.

Replacing the defrost sensor. Unplug the refrigerator. Remove the back panel. Unclip the old sensor from the evaporator coil.

Disconnect the wiring harness. Connect the new sensor. Squeeze the clip until it snaps onto the coil tube.

Common OEM part numbers include DA34-00018B and DA34-00022B. Verify against your model number.

Replacing the defrost heater. Unplug the refrigerator. Remove the back panel. Unscrew or unclip the heater from its mounting brackets.

Wiggle it free from the coil fins. Disconnect the wiring. Install the new heater in reverse order.

Common part numbers fall in the DA81-08830A range.

Replacing the bi-metal thermostat. Unplug the refrigerator. Remove the single screw holding the thermostat. Disconnect the wires.

Install the new one. Part number DA32-00006W fits many Samsung models.

Manual defrost before reassembly. If you have substantial ice buildup, melt it before putting the back panel on. Use a hair dryer on low heat set six inches from the coils. Do not use a metal scraper.

Place towels around the base to catch melting water.

Resetting the error code. Plug the refrigerator back in. Clear the code by unplugging for 30 seconds or using the service menu error reset. If the code disappears and the freezer cools normally within two hours, the repair worked.

If the code returns within 24 hours, a component was misdiagnosed or a connection is loose.

When to Call a Professional (And When Not To)

Do it yourself when. You have a multimeter and know how to read ohms. The diagnostic tests pointed clearly to the sensor, heater, or thermostat. The refrigerator is out of warranty.

Call a professional when. The refrigerator is under Samsung's one-year warranty. You tested all three components and they all read correctly. The error persists after replacing the sensor, heater, and thermostat.

You see signs of refrigerant oil around the evaporator coil.

Warranty considerations. If your Samsung refrigerator is less than one year old, Samsung covers the repair at no cost. Call 1-800-SAMSUNG and explain error code 22c. Do not open the sealed system yourself.

Doing so can void your warranty.

Cost comparison. A professional diagnostic visit costs $150 to $250. Parts and labor add another $100 to $200. Total cost runs $250 to $450.

Compare that to a $35 sensor replacement you install yourself in 30 minutes.

Common Mistakes DIYers Make With Error 22c

The most expensive mistake is replacing the main control board first. Manufacturer service data shows the board causes error 22c less than 10 percent of the time. Spending $150 on a board you do not need hurts.

Skipping the bi-metal thermostat check is another frequent error. This tiny disc costs about $10 and takes two minutes to test. Many DIY guides skip it, so people replace the sensor and heater, and the code returns in a week.

Using aftermarket parts that do not match OEM specifications causes repeat failures. A generic defrost sensor might have different resistance curves. The control board reads the sensor data and can throw the error again.

Stick with Samsung OEM parts.

Frequently Asked Questions

Can I still use the refrigerator with error 22c showing?

You can, but not for more than a day. The freezer will gradually lose cooling power as ice builds on the coils. Move perishable food to a backup freezer or ice chest.

How long does a typical error 22c repair take?

Most DIY repairs take 30 minutes to an hour. This includes removing the back panel, testing all three components, replacing the faulty part, and reassembling everything. Heavy ice buildup adds 20 minutes for melting.

Will error 22c come back after I fix it?

If you replace the correct faulty component with an OEM part, the fix is permanent. The defrost sensor and heater are consumable parts that eventually fail. If the code returns within a month, you misdiagnosed the fault or have a wiring issue.

What does the Samsung warranty cover for error 22c?

Samsung's standard warranty covers parts and labor for one year from purchase. The sealed system is covered for five years. The defrost sensor, heater, and thermostat fall under the one-year parts warranty.

Can a power surge cause error code 22c?

Yes. A power surge can damage the defrost sensor or the control board relay. If the error appeared after a storm or power outage, check the sensor and heater first.

If both test good, the surge likely damaged the board.

Do I need special tools to fix error 22c?

No. You need a digital multimeter, a Phillips head screwdriver, a nut driver for the back panel screws, and a hair dryer for manual defrost. No soldering or refrigerant handling required.

How do I know if the defrost sensor is bad without a multimeter?

You cannot reliably test it without a multimeter. Visual inspection rarely shows damage because the sensor fails internally. Aggregate reviews report that guessing based on frost patterns alone leads to wrong diagnoses about 40 percent of the time.

Can I just unplug the fridge to reset error 22c?

Unplugging for 30 seconds clears the displayed code temporarily. The root cause remains. If you do not fix the faulty sensor or heater, the code returns within one or two defrost cycles.

What if error 22c shows but the freezer is still cold?

It means the defrost system just failed. The coils have not iced over enough to block airflow yet. You have a short window to diagnose and fix it before temperatures rise.

Are certain Samsung models more prone to error 22c?

Yes. Models with the Twin Cooling Plus system and a single evaporator in the freezer compartment show this code more frequently. French door models manufactured between 2016 and 2020 are overrepresented in repair records.

How much does professional repair cost for error 22c?

Expect $150 to $250 for the diagnostic visit. Parts and labor add another $100 to $200 if the repair is straightforward. Total cost typically runs $250 to $450.

Will error 22c damage my compressor?

Yes, indirectly. When the evaporator coils ice over completely, the compressor works harder to push refrigerant through a blocked system. The compressor can overheat and fail prematurely.

How do I find the correct part number for my Samsung model?

Look for the model number sticker inside the refrigerator compartment on the left wall. Search for that model number plus "defrost sensor" or "defrost heater" on Samsung's official parts site. Cross-reference the part number before ordering.

Should I replace all three components at once?

No. Replace only the component that failed testing. Replacing parts unnecessarily adds cost and risk of introducing a defective new part.

What is the average lifespan of a Samsung refrigerator before error 22c appears?

The defrost sensor typically fails between year four and year seven of ownership. The heater tends to last longer, between year six and year ten. If your refrigerator is within this age range and shows error 22c, the sensor is the most probable starting point.
