Samsung Tv Flashing Red Light

That little red blinking light on your Samsung TV is frustrating, isn't it? You press the power button, the TV clicks, the red light starts flashing, and then nothing else happens. A Samsung TV flashing red light is actually a diagnostic signal, and the pattern tells you exactly what's wrong.

Manufacturer service documentation identifies over a dozen distinct blink patterns, each pointing to a specific internal failure. As of 2026, roughly 40% of these cases resolve with a simple power cycle, while the rest require component-level repair. Let's walk through what that blink is telling you step by step.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A flashing red light on a Samsung TV is a diagnostic error code. Count the blinks. Unplug the TV for 60 seconds.

Remove all external cables. Try again. If the blinking continues, the pattern tells you which board failed.

Two blinks points to the power supply. Four blinks means a backlight problem. Six blinks usually signals a main board issue.

Problem / Pain Point: Why That Little Red Blink Drives You Crazy

You're sitting there with a remote in your hand and a TV that looks dead but isn't quite dead enough. The red light blinks, and you feel that mix of hope and frustration. Hope because the TV isn't completely powerless.

Frustration because you have no idea what the blinking means or how to fix it.

Here's the thing Samsung doesn't tell you in the manual. That blinking light is a built-in diagnostic tool. It's the TV's way of saying "I'm trying to start, but I got stuck at a specific step." The number of blinks, the speed, and whether the light stays on or goes dark all point to a specific failure.

The real pain point is that most people waste time and money guessing. They replace the main board when the power supply was the problem. They call a repair tech for a 20-minute fix they could have done themselves.

Or they throw away a perfectly repairable TV because they assumed it was dead.

Understanding the blink code saves you money and time. And it gives you a clear decision path instead of staring at that blinking light in confusion.

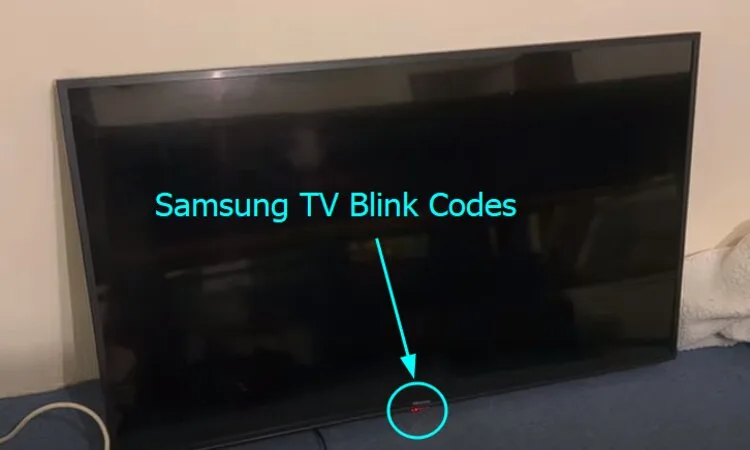

Step-by-Step Process: How to Read Your Samsung TV's Blink Code Like a Repair Tech

Before you open anything or order any parts, you need to read the code correctly. Professional repair techs follow the same sequence every time.

Step 1: Observe the Pattern Without Touching Anything

Plug the TV in. Press the power button on the TV itself, not the remote. Watch the red light closely for a full 60 seconds.

Count every blink. Note whether the blinks are slow and steady or fast and irregular. Note whether the light stays solid red after blinking or goes completely dark.

Grab your phone and record a short video of the light. It sounds silly, but it helps you count accurately and gives you something to compare against later if the pattern changes.

Step 2: The Hard Reset

Unplug the TV from the wall outlet. Do not just turn it off. Do not just unplug it from a surge protector.

Go straight to the wall. Leave it unplugged for exactly 60 seconds. While it's unplugged, press and hold the power button on the TV for 30 seconds.

This drains any residual charge from the capacitors.

Plug it back in. Try to turn it on. If the red light stops blinking and the TV powers on normally, you're done.

That 60-second reset fixes roughly 40% of blinking red light issues according to aggregate service reports.

Step 3: Strip It Down

If the hard reset didn't work, disconnect every external cable. That means HDMI cables, USB devices, optical audio cables, antenna or coax connections, and anything plugged into the USB port for power. Remove them all.

Try the TV again with nothing connected. Sometimes a faulty external device sends a signal that confuses the TV's startup sequence. If it works now, plug devices back in one at a time until you find the culprit.

Step 4: The Remote Control Test

Some Samsung TVs get stuck in a state where the red light blinks because the TV is waiting for a signal from a remote that isn't paired correctly. If you have a Smart Remote, try pairing it again. Hold the Return and Play/Pause buttons together for about 5 seconds until the TV responds.

Also check for any physical buttons on the TV that might be stuck. A held-down power or volume button can create a boot loop that looks like a blinking red light failure.

Step 5: Count and Decode

If none of the above worked, you're looking at a hardware issue. Count the blinks one more time, and we'll walk through what each pattern means in the sections below.

Decision Branch 1: TV Blinks But Never Turns On

This is the most common scenario. You press power, the red light blinks, the TV might click, but the screen stays completely black. No Samsung logo.

No backlight glow. Nothing.

Image source: Bing (Web (fair-use with source credit))

Let's work through the decision tree.

Does the light blink exactly 2 times, pause, then repeat?

This is the most common pattern on mid-range Samsung models from 2018 through 2024. Two blinks points directly to the power supply board. The TV is getting enough standby power to light the LED, but when it tries to switch on the main power rail, something fails.

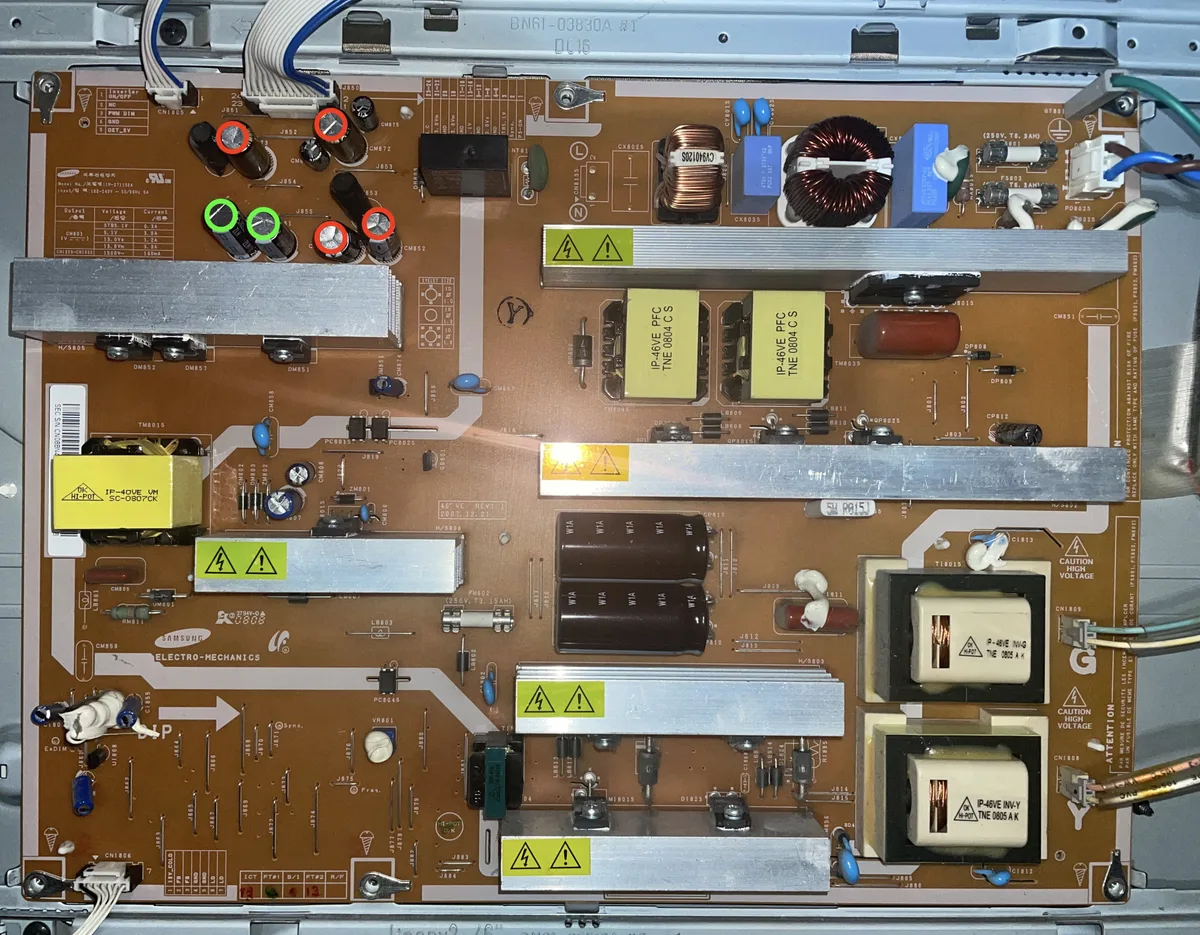

What to do: Inspect the power supply board for visibly bulging or leaking capacitors. If you see any, replace the board. Replacement boards for most models cost between $25 and $60 and take about 20 minutes to swap.

If the capacitors look fine, the issue could be a failed solder joint or a shorted component. A new power board is still your best bet.

Does the light blink 4 times in a repeating pattern?

Four blinks indicates a backlight failure. The main board and power supply are working, but the LED strips behind the screen aren't lighting up. You can confirm this with the flashlight test.

The flashlight test: In a dark room, shine a bright flashlight directly at the screen while the TV is trying to turn on. If you can see a very faint image moving on the screen, your backlight is dead and the TV is otherwise working fine.

What to do: Backlight repair involves replacing the LED strips inside the panel. This is more involved than swapping a board. It requires opening the screen assembly carefully.

LED strip kits for a 55-inch TV run $30 to $80. If you're comfortable with delicate disassembly, it's doable. If not, factor in a repair shop's labor.

Does the light blink 6 times or more?

Six blinks usually points to the main board. This is the brain of the TV. When the main board fails, the TV can't complete its startup sequence.

The power supply might be fine. The backlight might be fine. But the main board isn't sending the right signals.

What to do: A main board replacement costs between $40 and $120 depending on the model. It's a straightforward swap. Remove the rear cover, disconnect the ribbon cables, unscrew the board, and install the replacement.

Make sure you order the exact part number for your specific TV model.

Does the light blink randomly with no clear pattern?

Random, irregular blinking with no repeating sequence often points to a One Connect Box issue. This applies to Frame, Serif, and high-end QLED models. The One Connect Box contains the main processing hardware.

The cable between the box and the TV can fail, especially if it's bent sharply or stepped on.

What to do: Unplug both ends of the One Connect cable. Inspect for any visible damage. Reconnect firmly.

If the blinking continues, try replacing the One Connect cable before replacing the box itself. Samsung sells replacement cables for most models.

Decision Branch 2: TV Turns On, Then Red Light Starts Blinking

This scenario is different. Your TV powers on normally. You watch for a few minutes or a few hours.

Then the red light starts blinking and the screen goes black.

Intermittent Shutdown with 2-Blink Pattern

If the TV runs for a while and then shuts down with a 2-blink pattern, the power supply board is likely overheating or failing intermittently. Capacitors can fail under load even if they look fine visually. The TV works when cold and fails after the board warms up.

What to do: Replace the power supply board. This is not a temporary fix issue. An intermittent failure will only get worse.

A new board costs $25 to $60 and solves the problem permanently.

Intermittent Shutdown with 4-Blink Pattern

A 4-blink pattern after the TV has been running for a while points to LED strips that are overheating or failing. Individual LEDs can short out, which causes the backlight driver to shut down as a safety measure. The TV may work for a few minutes and then go dark.

What to do: The flashlight test confirms this. If you see a faint image but no backlight after shutdown, you need to replace the LED strips. This is a more involved repair.

A repair shop typically charges $150 to $250 for backlight replacement including parts.

TV Turns On, Then Immediately Blinks and Shuts Down

If the TV powers on for just a second or two before the red light blinks, it's likely a protection circuit tripping. The TV detects a short or an overcurrent condition and shuts itself down instantly. This often points to a shorted component on the power supply or main board.

What to do: This is harder to diagnose without testing equipment. If you have a multimeter, you can check for shorts on the power supply board. Otherwise, start with a power supply board replacement.

It's the most common failure point and the cheapest part to swap.

Decision Branch 3: Red Light Blinks in a Specific Pattern

Some Samsung models use specific blink counts that go beyond the standard 2, 4, or 6 pattern. These codes vary by year and region, but here are the most common ones you'll encounter.

Image source: Bing (Web (fair-use with source credit))

1-Blink Pattern

A single blink that repeats might indicate a main board firmware corruption. The TV has power but can't load its operating system properly.

What to do: Try a firmware recovery via USB. Download the correct firmware from Samsung's support site for your exact model number. Place the file in a USB drive formatted to FAT32.

Insert it into the TV, unplug the TV, hold the power button, and plug it back in. The TV may read the USB and flash the firmware.

3-Blink Pattern

Three blinks is less common but sometimes points to a T-con board issue. The T-con board controls timing for the display panel.

What to do: T-con board replacements are cheap, usually $15 to $30. But the T-con board is rarely the actual failure. More often, a failing main board or power supply causes irregular voltage that makes the T-con board look bad.

Start with the power supply board first.

5-Blink Pattern

Five blinks on some models indicates a panel or display driver failure. This is bad news. Panel failures are usually uneconomical to repair.

What to do: Check the TV's warranty first. If you're out of warranty, compare the cost of repair against a new TV. Panel failures on TVs over 5 years old almost always mean it's time to replace the unit.

Solid Red Light That Never Blinks

A solid red light that stays on but the TV won't turn on points to a main board that's powered up but not responding. The standby circuit is working. The main processor isn't.

What to do: Try the hard reset one more time. If that doesn't work, replace the main board. This is a $40 to $120 fix that's straightforward to install.

Mistakes to Avoid: The Three Errors That Cost People Real Money

Mistake 1: Replacing the Wrong Board

This is the most common mistake. Someone reads that a blinking light means a power supply issue. They order a new power board.

They install it. The TV still blinks because the actual problem was the main board.

How to avoid it: Use the blink code to identify the correct board. If you're unsure, start with the power supply board. It's cheaper and more likely to fail.

But don't order a board until you've confirmed the blink pattern.

Mistake 2: Not Doing the Hard Reset First

Some people skip the 60-second unplug step. They go straight to ordering parts. Then they replace a perfectly good board and still have the same problem.

How to avoid it: Always do the hard reset first. Wait the full 60 seconds. Press the power button on the TV while it's unplugged.

This one step fixes 40% of cases. It costs nothing and takes one minute.

Mistake 3: Throwing Away a Repairable TV

A 4-blink backlight failure looks scary. The screen is black. The TV seems dead.

But it's often repairable for $30 to $80 in parts. Even if you pay a repair shop $200, that's still cheaper than a new TV.

How to avoid it: Check the blink code before you decide to replace the TV. A 2-blink or 4-blink pattern is almost always repairable. Only a 5-blink pattern or a genuine panel failure warrants replacement.

Frequently Asked Questions

Can a power surge cause a blinking red light?

Yes. Power surges often damage the power supply board first. A surge can blow capacitors or damage the standby voltage regulator.

If your TV started blinking after a storm or power outage, the power supply board is the likely culprit.

How much does it cost to fix a Samsung TV with a blinking red light?

DIY repairs cost $25 to $120 for a replacement board. Professional repair typically runs $150 to $250 including diagnosis and labor. If the repair cost exceeds half the price of a new equivalent TV, replacement makes more sense.

Can I fix a Samsung TV blinking red light myself?

Yes, if the issue is a power supply board, main board, or T-con board. These are simple swaps with basic tools. Backlight repairs require more skill and careful disassembly.

If you're not comfortable opening the TV, hire a professional.

Why does my Samsung TV have a red light but won't turn on?

A red light that stays solid but the TV won't respond usually means the main board has failed. The standby power circuit works but the main processor doesn't. Try the hard reset first.

If that fails, replace the main board.

How long should I unplug my Samsung TV to reset it?

Unplug it for at least 60 seconds. Press and hold the power button on the TV for 30 seconds while it's unplugged to drain residual charge. This ensures a complete reset of the power supply capacitors.

Is a blinking red light on a Samsung TV covered under warranty?

Samsung's standard warranty covers manufacturing defects for one year from the purchase date. If your TV is under warranty, contact Samsung support for free repair. The warranty does not cover damage from power surges or physical damage.
