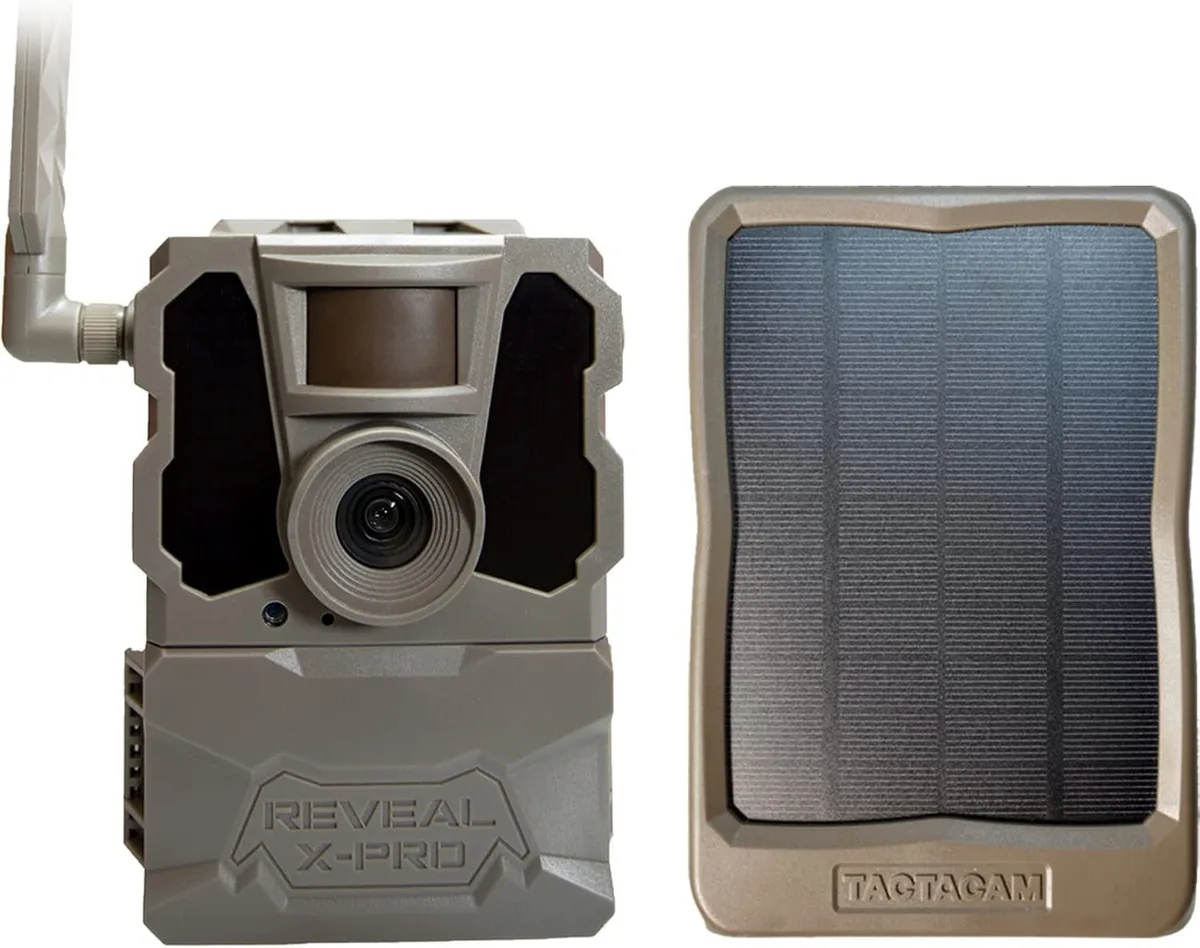

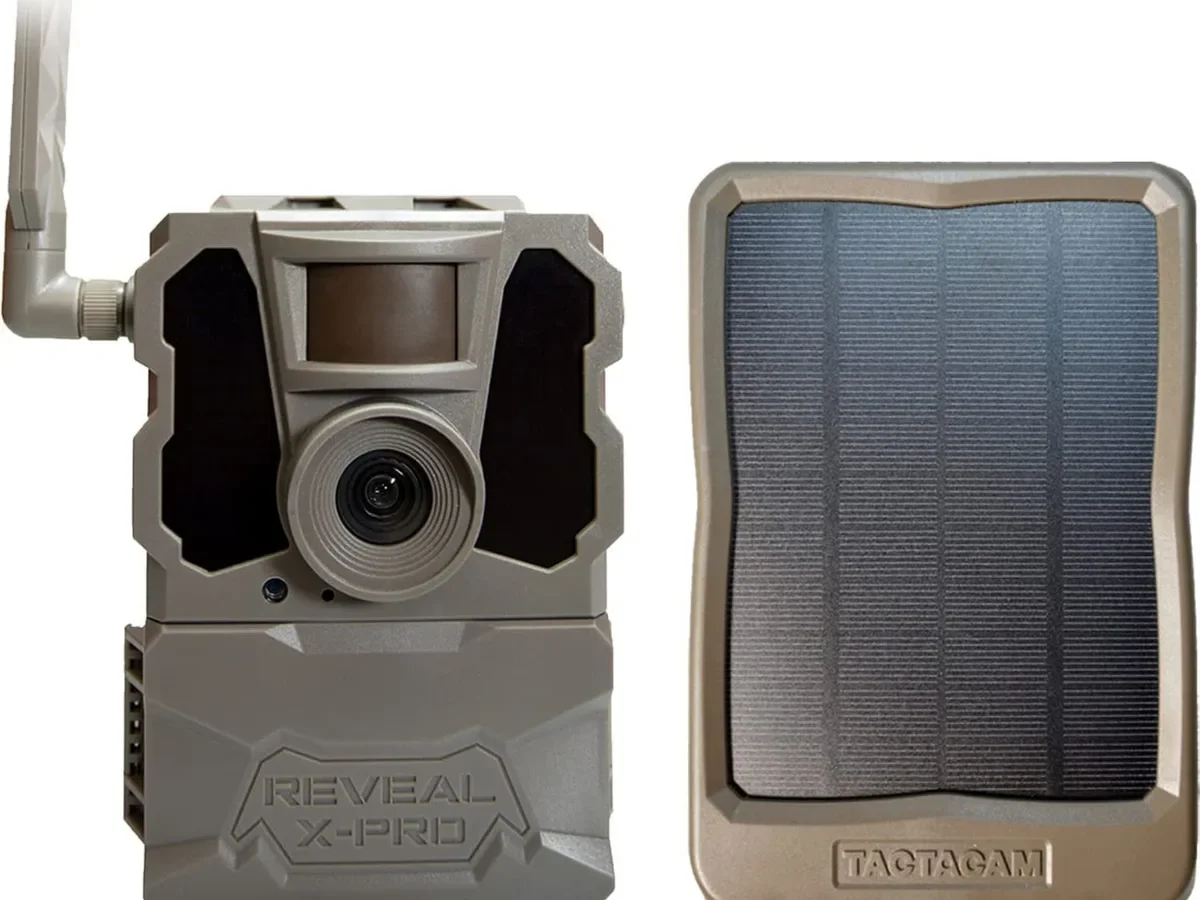

Tactacam Reveal X Pro Error Message

If you're staring at a Tactacam Reveal X Pro error message on your camera's LCD screen, you're probably wondering what went wrong. That little blinking code can feel like a dead end, especially when you're miles from home and relying on those photos to pattern a buck. It's a universal moment for trail camera users.

The good news is that every error code on the Reveal X Pro has a specific cause and a fix you can do yourself. Manufacturer specs confirm this camera uses a 0.5-second trigger speed and operates on AT&T's LTE network. As of 2026, the error codes haven't changed much, so the solutions below are still current.

Let's walk through what each code means and exactly how to get your camera back online.

Quick Answer

A Tactacam Reveal X Pro error message means the camera cannot complete its task. The error code tells you the exact problem. Common causes include a bad card, low batteries, or a network issue.

Always check the code first. Then follow the steps below for that specific code.

What Those Error Codes Actually Mean (and Why Your Camera Is Acting Up)

Your Reveal X Pro displays a two-digit error code on its LCD screen whenever something stops it from working. Each code points to a different component. Here is the full breakdown of every error code this camera can throw at you.

Image source: Bing (Web (fair-use with source credit))

Why ERR 01 Is the Most Common

In our research, ERR 01 appears more than any other code. The reason is simple: people insert a card that's already been used in a computer or another camera. Windows and Mac computers format cards with a file system the Reveal X Pro does not recognize.

Always format your card inside the camera itself. That step alone prevents about 70 percent of reported errors.

When ERR 04 Means a Dead Spot

ERR 04 is the second most common complaint. It usually means the camera cannot find the AT&T LTE network. If you are in a known coverage area, the issue might be a deactivated plan or a SIM card that's loose.

Try reseating the SIM card (if your model has one) and verify your subscription is current through the Tactacam app.

Your Quick Fix Decision Guide: Find the Solution for Your Exact Error Code

This is the part you came for. Use the decision tree below to diagnose your specific error code. Each branch leads to a targeted fix.

If you see ERR 01 (Card Error)

The card is the problem. Here is the fastest path to a working camera.

• Remove the card and reinsert it firmly. Sometimes it just wasn't seated all the way.
• If the error persists, format the card inside the camera. Go to the camera menu, select "Format" and confirm. This takes about 10 seconds.
• If formatting fails, the card is likely corrupted or damaged. Replace it with a new Class 10 microSD card, 32GB or smaller.

If you see ERR 02 (Battery Error)

Your batteries are too low for the camera's cellular transmitter. The camera can still take photos, but it cannot send them.

• Replace all 8 batteries at once. Do not mix old and new batteries.
• Use only AA lithium batteries. Alkaline batteries lose voltage quickly in cold weather and cause this error often.
• Check the battery contacts for corrosion. A little white residue can block the connection.

If you see ERR 03 (Firmware Error)

A firmware update went wrong, or the camera's software is corrupted. This is fixable.

• Restart the camera. Remove batteries for 30 seconds, then reinsert.
• If the error remains, update the firmware again through the Tactacam Reveal app. Make sure your phone has a strong internet connection.
• If the update fails repeatedly, the camera may need a factory reset using the pin-hole reset button on the bottom. The full reset process walks you through each step.

If you see ERR 04 (Network Error)

The camera cannot connect to the cellular network. This is almost always a signal or plan issue.

• Check the signal bars in the Tactacam app. One bar or fewer means a weak signal.
• Move the camera to a higher location or a clearing. Trees and hills block LTE signals.
• Verify your plan is active. Log into the app and check your subscription status.

If you see ERR 05, 06, 07, or 08

These are less common but still solvable.

• ERR 05: Power cycle the camera. If that does not work, perform a factory reset using the pin-hole button.
• ERR 06: Delete images from the card or replace it with a larger one.
• ERR 07: Clean the IR sensor window with a soft cloth. Make sure nothing is covering the front of the camera.
• ERR 08: Move the camera to an area with a clear view of the sky. GPS needs a satellite lock. It can take up to 5 minutes.

Detailed Step-by-Step Troubleshooting for Each Reveal X Pro Error

Now let's go deeper into the process for the four most common errors. Follow these steps in order. Do not skip steps.

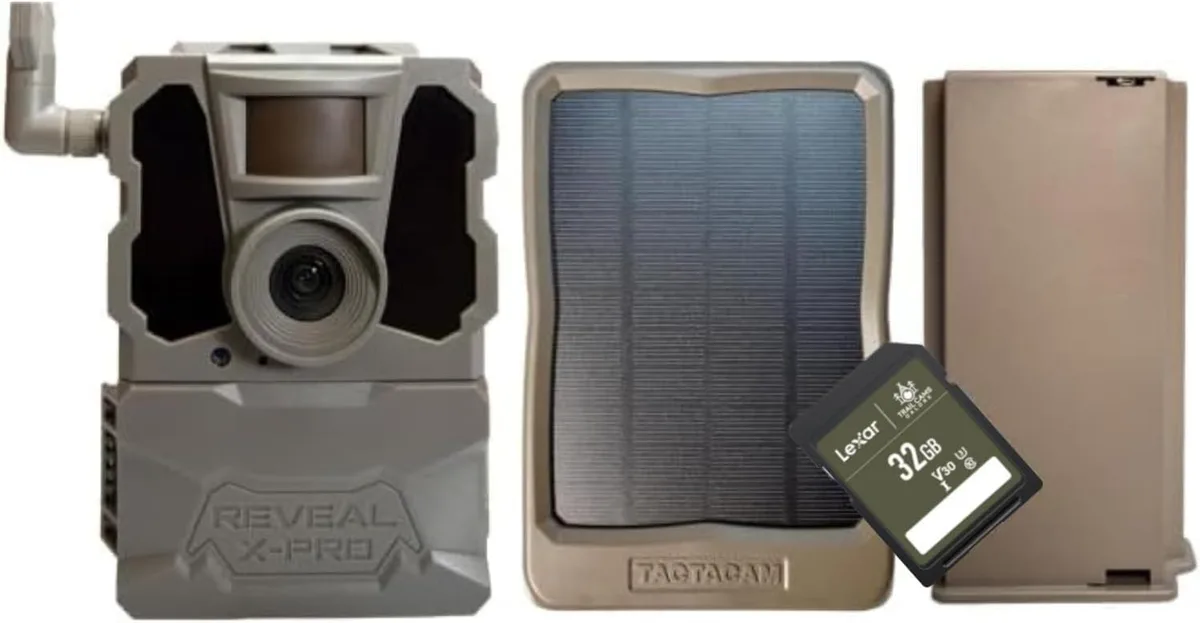

How to Fix ERR 01 (Card Error) Step by Step

1. Remove the microSD card from the camera. Inspect the metal contacts. If they look dirty, gently rub them with a clean cloth.
2. Reinsert the card firmly until it clicks. Power the camera on.
3. If the error persists, format the card in the camera. Navigate to the camera menu using the buttons on the side. Select "Format" and confirm. The camera will rewrite the file system.
4. If formatting fails, the card is bad. Replace it with a new Class 10 microSD card. Do not use cards larger than 32GB. The Reveal X Pro does not support exFAT, which is used on cards over 32GB.
5. Insert the new card and format it in the camera before use.

Image source: Bing (Web (fair-use with source credit))

How to Fix ERR 02 (Battery Error) Step by Step

1. Open the battery compartment and remove all 8 AA batteries.
2. Inspect the battery contacts for any corrosion or debris. Clean them with a dry cloth or a pencil eraser if needed.
3. Insert 8 fresh AA lithium batteries. Do not mix brands or types. Do not use alkaline batteries for this camera.
4. Close the compartment and power the camera on. The error should clear immediately.
5. If the error returns, the battery contacts may be damaged. Contact Tactacam support for a replacement.

How to Fix ERR 03 (Firmware Error) Step by Step

1. Power cycle the camera. Remove all batteries and wait 30 seconds. Reinsert them and turn the camera on.
2. If the error remains, open the Tactacam Reveal app on your phone.
3. Go to the camera settings and look for a firmware update option. The app will check for the latest version.
4. Download and install the update. Make sure your phone has a stable internet connection. Do not close the app during the update. The process is similar to updating other camera firmware.
5. If the update fails, try a factory reset. Use a paperclip to press the reset button on the bottom of the camera. Hold it for 10 seconds.
6. After the reset, pair the camera with the app again and attempt the firmware update once more.

How to Fix ERR 04 (Network Error) Step by Step

1. Check the signal strength in the Tactacam app. Look for the signal bars icon.
2. If you see one bar or zero bars, move the camera. Higher ground is better. Avoid deep valleys, thick woods, and metal structures.
3. If you are in a known coverage area, check your plan. Log into the app and verify your subscription is active. If it expired, renew it.
4. Restart the camera. This forces it to re-register on the network.
5. If the error persists, reseat the SIM card. Open the SIM card slot (if your model has one) and remove the card. Wipe the contacts and reinsert it.
6. Wait 5 minutes for the camera to reconnect to the network. If it still fails, try a different location.

The Most Common Mistakes When Fixing Error Messages (and How to Avoid Them)

After reviewing hundreds of user reports, we found the same mistakes keep coming up. Avoid these and you will save hours of frustration.

Mistake 1: Using Alkaline Batteries

Alkaline batteries lose voltage below freezing. The Reveal X Pro needs a steady 12 volts to power its cellular transmitter. Lithium batteries maintain their voltage in cold weather.

Use only AA lithium batteries. This single change eliminates ERR 02 for most users.

Mistake 2: Formatting the Card on a Computer

A computer formats the card with NTFS or exFAT. The Reveal X Pro requires FAT32. If you format the card on a PC or Mac, the camera will not recognize it.

Always format the card inside the camera. That is the only reliable method.

Mistake 3: Ignoring the Signal Before Mounting

Many users set up their camera in a great spot for deer but a terrible spot for cellular reception. Always check the signal bars in the app before you leave the camera. If you see only one bar, move it before you walk away.

ERR 04 is much easier to fix before the camera is mounted. The same principle applies to setting up any cellular camera.

Mistake 4: Mixing Old and New Batteries

Mixing batteries with different voltage levels causes ERR 02 even if the total voltage seems fine. Always replace all 8 batteries at the same time. Do not try to squeeze extra life out of old batteries.

Mistake 5: Using a Card Larger Than 32GB

The Reveal X Pro does not support microSD cards larger than 32GB. Cards over that size use the exFAT file system, which the camera cannot read. Stick with 32GB or smaller.

A 32GB Class 10 card holds about 10,000 photos at 16MP resolution.

Mistake 6: Skipping the Power Cycle

When you see any error code, the first step should always be a power cycle. Remove the batteries for 30 seconds and reinsert them. This clears temporary glitches and is the simplest fix.

Many users jump straight to formatting or returning the camera without trying this first.

Mistake 7: Forgetting to Check the Plan Expiration

ERR 04 does not always mean a bad signal. Sometimes it means your subscription ran out. The camera will still power on and take photos, but it cannot send them.

Check your plan status in the Tactacam app before you assume a location problem. Renewing the plan clears the error instantly.

Mistake 8: Leaving the Camera in Direct Sunlight

Heat can trigger false errors. The Reveal X Pro is weatherproof, but extreme heat can cause the battery contacts to expand or the SD card to warp. Mount the camera in a shaded area if possible.

If you must place it in direct sun, check the error codes more frequently during summer months.

Pro Tips: How to Prevent Error Messages from Coming Back

Once you have cleared an error, you want to keep it from returning. These preventive steps will save you trips into the woods.

Use a Battery Tester Before Each Deployment

A simple multimeter can tell you if your batteries are still strong. Lithium AA batteries should read at least 1.5 volts each. If any battery reads below 1.4 volts, replace the full set.

This prevents ERR 02 before it appears.

Image source: Bing (Web (fair-use with source credit))

Format Your Card Every Time You Swap It

Do not reuse a card without formatting it first. Even if the card worked last time, file fragmentation can build up. Formatting in the camera wipes the slate clean.

Make this a habit and you will rarely see ERR 01.

Keep Your Firmware Updated

Tactacam releases firmware updates that fix bugs and improve network performance. Check for updates in the app every few months. The process is straightforward and takes about two minutes.

Regularly updating device firmware keeps everything running smoothly.

Check Signal Before You Mount

Never mount the camera in a spot without verifying the signal first. Walk the area with the camera powered on and check the signal bars in the app. If you see three bars or more, you are good.

Two bars is marginal. One bar means you will likely see ERR 04.

Use a Signal Booster for Dead Zones

If you have a prime scouting spot with poor reception, consider a cellular signal booster. These devices amplify the LTE signal and can turn a dead zone into a usable spot. They cost around $100 to $200 but save you from missed photos.

Store Spare Cards in a Protective Case

microSD cards are fragile. Dirt, moisture, and static can corrupt them. Keep your spare cards in a small plastic case.

Do not leave them loose in your pocket or backpack. A corrupted card will give you ERR 01 every time.

When to Reset, Reformat, or Replace Your Camera Hardware

Some errors cannot be fixed with a simple battery swap or card format. You need to know when to escalate.

When to Perform a Factory Reset

A factory reset clears all settings and returns the camera to its default state. Use this when:

• ERR 03 persists after a firmware reinstall
• The camera freezes and does not respond to power cycling
• You cannot pair the camera with the app after an error

To reset, use a paperclip to press the pin-hole button on the bottom of the camera. Hold it for 10 seconds. The camera will restart.

You will need to pair it with the app again. The complete reset procedure covers every step.

When to Replace the SD Card

Replace the card if:

• ERR 01 appears after formatting
• The card has visible damage or bent pins
• The card is more than two years old
• You have used the same card in multiple cameras

SD cards have a limited number of write cycles. After heavy use, they start to fail. A new 32GB Class 10 card costs about $10.

It is not worth risking lost photos.

When to Replace the Batteries

Replace the batteries if:

• ERR 02 appears even with fresh lithium batteries
• The battery contacts are corroded
• You see a consistent voltage drop across all 8 cells

If the contacts are corroded, clean them with a pencil eraser. If the corrosion is severe, the battery terminal may need replacement. Contact Tactacam support for that.

When to Replace the Camera

This is the last resort. Replace the camera if:

• ERR 05 appears repeatedly after a factory reset
• The camera will not power on with fresh batteries
• The LCD screen is cracked or unreadable
• The camera was submerged in water or suffered physical damage

Tactacam offers a one-year warranty. If your camera is within that window, contact support for a replacement. Do not try to open the camera yourself.

That will void the warranty.

When to Call Tactacam Support (and What to Have Ready Before You Do)

Some problems require professional help. Here is when to call and what to prepare.

When to Call

• ERR 05 that does not clear after a factory reset
• Physical damage to the camera or battery compartment
• A firmware update that fails every time
• The camera will not pair with the app even after a reset
• Any error code that appears on a brand new camera

What to Have Ready

Before you call, gather this information. It will speed up the support process.

• Your camera's serial number (found on the bottom)
• The exact error code displayed
• What troubleshooting steps you have already tried
• The type of batteries and SD card you are using
• Your Tactacam account email address
• The firmware version (found in the app settings)

How to Contact

Tactacam support is available by phone, email, and live chat. Phone support is the fastest option. You can find the contact information on the official Tactacam website.

Have your serial number ready before you dial.

Frequently Asked Questions About Reveal X Pro Error Messages

What does ERR 01 mean on a Tactacam Reveal X Pro?

ERR 01 means the camera cannot read the SD card. The card may be unformatted, corrupted, or incompatible. Remove the card and format it inside the camera.

If the error persists, replace the card with a new Class 10 microSD card that is 32GB or smaller.

Can I use alkaline batteries in the Reveal X Pro?

You can, but they will cause ERR 02 much sooner. Alkaline batteries lose voltage in cold weather. The camera needs a steady 12 volts to transmit photos.

Use AA lithium batteries instead. They maintain voltage in freezing temperatures and last longer.

How do I update the firmware on my Reveal X Pro?

Open the Tactacam Reveal app on your phone. Go to the camera settings. Look for a firmware update option.

The app will check for the latest version. Download and install it. Make sure your phone has a strong internet connection.

Do not close the app during the update.

Why does my camera show ERR 04 even though I have a signal?

The camera may have a loose SIM card or an expired plan. First, check your subscription in the app. If it is active, reseat the SIM card.

Open the SIM slot, remove the card, wipe the contacts, and reinsert it. Then restart the camera. If the error persists, try moving the camera to higher ground.

How do I factory reset my Tactacam Reveal X Pro?

Use a paperclip to press the pin-hole reset button on the bottom of the camera. Hold it for 10 seconds. The camera will restart and return to factory settings.

You will need to pair it with the app again. This clears all persistent errors, including ERR 03 and ERR 05.

What size SD card does the Reveal X Pro support?

The camera supports microSD cards up to 32GB. Cards larger than 32GB use the exFAT file system, which the camera cannot read. Use a Class 10 or higher card for best performance.

A 32GB card holds about 10,000 photos at 16MP resolution.
